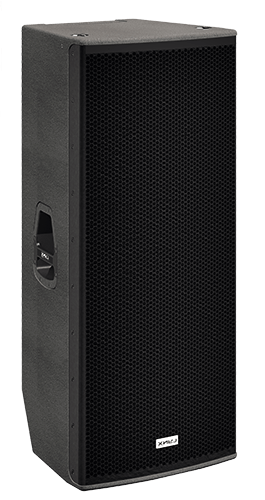

ADP-215

First class powered cabinet

High Output, self powered (Class D switch mode power supply), two-way cabinet.
Consists of two 15″ neodymium magnet transducers with nomex cones & suspension and a 1.4″ exit compression driver with titanium diaphragm, mounted on a 60ºH x 50ºV constant directivity horn.
DSP (FIR technology) controlled with 2000W amplification, 143db SPL.

Description

The versatile ADP-215 is part of the ADP Self powered, DSP integrated Series. It has been designed to offer the utmost sound reinforcement reliability, incorporating the latest acoustical and electronical technology and delivering incredible, dynamic sound.

The ADP-215 is an extremelly high power, two way full range cabinet providing exceptional performance. Each cabinet has a DSP integrated for system protection and optimization. This DSP applies classical crossover and linear phase filtering. Other features include temperature sensor, fan speed control, Ethernet options and many more.

The compact ADP-215 has an unbeatable power to size ratio, there is no need for external amplification racks, is very light weight and is the ideal solution for portable or fixed sound reinforcement. Wheels are located at the base for easy transportation and a variety of rigging options make the ADP-215 easy to set-up in minimal time. A nylon protection cover is also available. To extend the low frequency response, the ADP-18S sub-bass cabinet can be used.

N

Perfectly suited for:

→  Theatres & auditoriums
→  Houses of worship
→  Small / middle sized clubs
→  Smaller Live stages / events
→  Front fill / side fill reinforcement
→  Portable sound reinforcement

Technical Data



Components
LF/MF: 2 x 15″ neodymium
HF: 1.4″ titanium diaphragm 3″ voice coil compression driver
Frequency Range 40 Hz – 20 KHz (-10dB)
Frequency Response
45 Hz – 18 KHz (± 3dB)
Max SPL 140 dB / 143 dB peak
Coverage Angle
60º H x 50ºV constant directivity horn
Power amplifier 2000W Class D
LF/MF Amplifier
2 x 750 W
HF Amplifier 1 x 500 W
Processing
56 bit Lynx DSPB-22 with FIR filters
Cabinet Adjusment Back panel LCD
Internal Controls
Temperature sensor, Online Control System, Fan Speed
Control Connections Ethernet (OCS) optional, USB (DSP programming)
AC Power
230V / 115V selectable. 50/60 Hz 5A
Ac Connections 16A Neutrik powerCON with link output
Finish
Polyurea coating high grade resistant paint
Material 15 mm Premium birch plywood

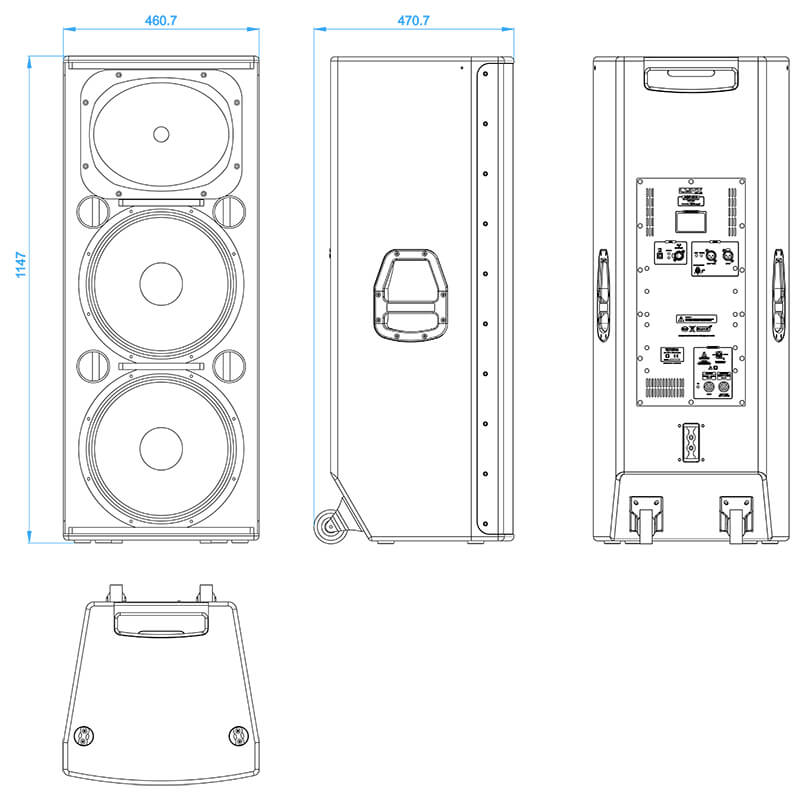

Dimensions
1147 x 489 x 415 mm (H x W x D)
Weight
52 kg (114 lbs)

More features

Hardware for ADP-215

Enclousure-ADP

Enclosure

The ADP-215 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

ADP-int

Internal design

The internal structure of the ADP-215 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rearpanel-adp-12

Rear panel

The powder coated steel rear panel contains all connections and houses the ADP-215 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill-f6

Grill

The ADP-215 has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handle-LX-318C

Handles

 An ergonomic, die cast handle with firm internal grip is located on each side of the ADP-215 enclosure to facilitate transport, positioning and loading of the cabinets. One further built-in handle is located at the top of the cabinet.

Rigging-adp-12

Rigging

Transport LX-212S

Transport

The ADP-215 has two wheels located at the rear so that it can be easily transported. A protective nylon cover is also available to protect the enclosure and keep it clean on tour.



Components
Speaker-adp-15

For the low-mid frequencies it uses two 15” (100 mm voice coil) neodymium transducers with nomex cones and suspension.

The high frequencies are looked after by a 1.4” exit compression driver with titanium diaphragm, mounted on a 60ºH x 50ºV constant directivity horn.

Transducers and drivers with neodymium magnet groups.  Nomex cones and suspension for the transducers, with weather protected membrane for outdoor use and ventilated voice coil for improved heat dissipation.

Titanium diaphragm for the HF driver increasing the life of the component, short copper cap for extended HF response.

Accessories for ADP-215
SC-FC2
SC-FC2
Heavyweight install stud for the ADP-215
SP-LX218S
SP-LXADP
Connection plate for ADP-215 to vertical LX-218S
Rain-Cover
FD-ADP215NL
Rain cover for the ADP-215
FD-4LXV8
FD-ADP215
Nylon transparent protection cover for the ADP-215
Amplification & DSP
Tri-amplified Class D with switching power supply. Includes two 1000W power modules, one for each 15” transducer and one 500W power module for the HF driver.


The amplification far exceeds the transducers needs thus resulting in high output, high damping factor and extremely low levels of distortion.

Other products from this series

ADP-15 series1 x 15” transducer with a 1.4” driver, 136 dB SPL

ADP-12 series1 x 12” transducer with a 1.4” driver, 136 dB SPL

ADP-26 series2 x 6” transducers with a 1” driver, 127 dB SPL

ADP-212M series2 x 12” transducers with a 1.4” driver, 139 dB SPL

ADP-12M series1 x 12” transducer with a 3” driver, 132 dB SPL

ADP-18S series1 x 18” transducer, offering 136 dB SPL

ADP-12S1 x 12” transducer, offering 134 dB SPL
