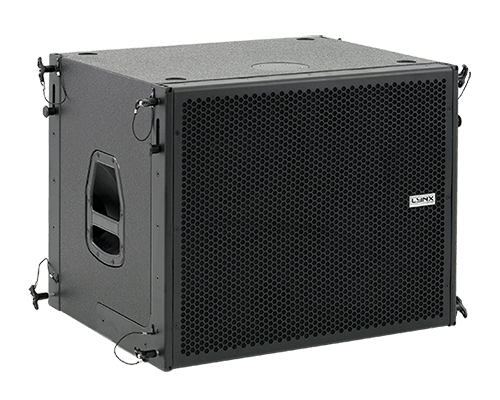

LX-212S

Compact subwoofer for LX-F6

High power, self powered (Class D switch mode power supply) subwoofer cabinet with two 12″ (4″ ISV voice coil) low frequency transducers with double spider for improved control & linearity, direct radiation configuration.
DSP controlled with 2000W amplification, 139dB SPL.

Description

The LX-212S is part of the LX Line Array Series and is the ideal solution for application in theatres, concert halls, stadiums, auditoriums, conference halls or any event where high precision Line Array is required. This subwoofer cabinet is the ideal combination where low frequency reinforcement is required for the LX-V8 or LX-F6.

High power sub-bass cabinet with two 12″ (4’’ DUO double inner/outer voice coil winding) low frequency neodymium transducers with Helicex cooling technology in bass reflex, direct radiation configuration. This cabinet delivers high sensitivity with massive mechanical displacement capability. The system is powered with a total of 2000W of class D amplification and each cabinet has its own DSP integrated. Other features include temperature sensor, Ethernet options and more. The LX-212S is recommended to add subwoofer reinforcement for either the LX-F6 or the LX-V8.

N

Perfectly suited for:

→  Sport stadiums
→  Large discos
→  Auditoriums
→  Concert Halls
→  Outdoor events
→  Theatres

Technical Data



Components
2 x 12″ (4″ voice coil), DUO
Frequency Range25 Hz – 300 Hz (-10dB)
Frequency Response
35 Hz – 250 Hz (± 3dB)
Max SPL136 dB / 139 dB peak
Format
Bass reflex, direct radiation
Coverage Angle360º single unit
Power
2000 W Class D with switching power supply
Processing56 bit Lynx dspb-22
Control
Temperature sensor – Fan speed
Control ConnectionsEthernet (OMS) optional / USB (DSP Programming)
AC Power
230V / 115V selectable. 50/60 Hz 3A
AC Connections16A Neutrik Powercon with link output
Finish
Polyurea coating – white colour optional (RAL)
Material18mm Premium birch plywood

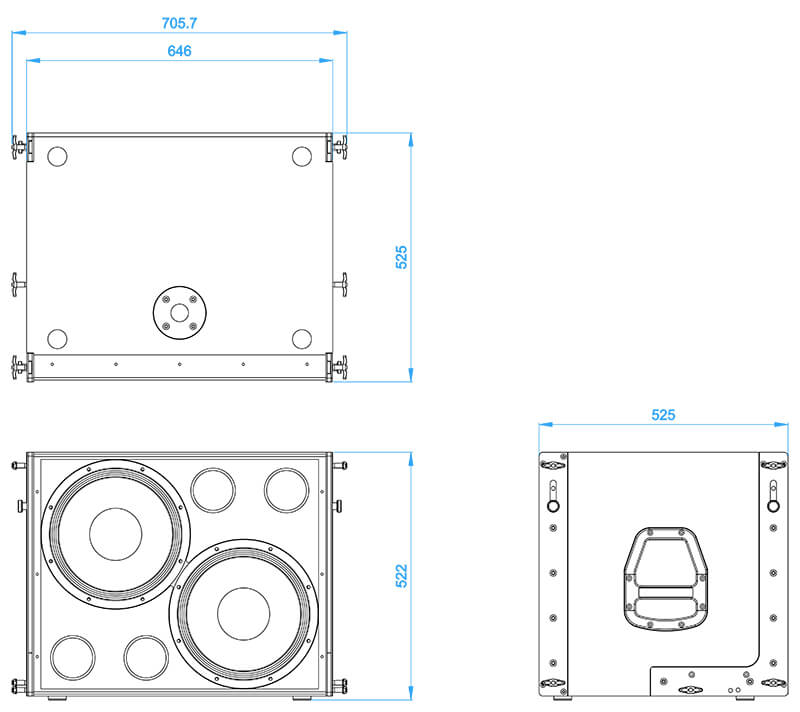

Dimensions
522 x 646 x 525 mm (H x W x D)
Weight58 Kg (128 lbs)

More features

Hardware for LX-212S

Enclousure-f6

Enclosure

The LX-212S cabinet is constructed from 11-ply premium birch plywood (18mm thickness) and finished with polyurea coating

Internal LX-318C

Internal design

The internal structure of the LX-212S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rearpanel-318C

Rear panel

The powder coated steel rear panel contains all connections and houses the LX-212S amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill-f6

Grill

The LX-212S has a heavy duty, powder coated front grille with special acoustic rear fabric to protect the transducers against dust and dirt.

Handle-LX-318C

Handles

One ergonomic, die cast handle with firm internal grips is located on each side of the LX-212S enclosure to facilitate transport, positioning and loading of the cabinets.

Rigging LX-212S

Rigging

Integrated flying plates are located on each side of the enclosure, to link the subs together or with the LX-F6 cabinets.

Transport LX-212S

Transport

A durable flight case is available to transport the LX-212S with two units of LX-F6, including cables and hardware.

Components
Lynx speaker-lx-212s

Two 12″ (4’’ DUO double inner/outer voice coil winding) low frequency neodymium transducers with helicex cooling technology in bass reflex, direct radiation configuration.

This cabinet delivers high sensitivity with massive mechanical displacement capability. Low frequency neodymium transducers with HELICEX cooling technology, MMSS technology and 4’’ DUO double inner/outer voice coil. Weather protected membrane for outdoor use.

Accessories for LX-212S
BALL-PSR
BALL-PSR0820
Ball pin with thread for LX-V8, LX-212S and LX-218S cabinets
SV-LX212S
SV-LX212S
Flying frame for the LX-212S, with a capacity for rigging of up to 2500 Kg.
Rain-Cover
FD-1LX212SNL
Rain cover for the back panel of the LX-212S
FC-LXF6
FC-LX212/F6
Flight case for 1 sub LX-212S with 4 LX-F6LX / F6P



Amplification & DSP

Bi-amplified Class D with switching power supply. Includes two 1000W power modules, one for each 12” transducer.

The amplification far exceeds the transducers needs thus resulting in high output, high damping factor and extremely low levels of distortion.
