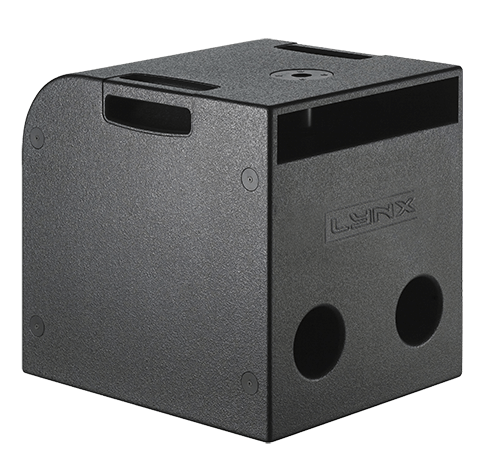

DBP-N15



Compact, light weight, passive sub-bass cabinet with one 15” low frequency transducer with nomex suspension & surround in double band-pass configuration. 131 dB SPL (1500W Program).

Applications

Club and Bar Installs
Theatres
Discotheques
Multi media spaces
Houses of worship
Hotels



Specifications
Components LF 1 x 15″ transducer
Frequency range 34 Hz – 250 Hz
Frequency Response 38 Hz – 200 Hz ± 3 dB
Sensitivity 101 dB (1W @ 1 m)
Max. SPL 131 dB
RMS power 750 W
Program power 1500 W
Coverage angle 360º single unit
Impedance 8 Ohm
Input Connectors 2 x Neutrik Speakon NL4MP
Material 18mm Premium birch plywood
Finish High resistant water-based black paint.
Dimensions (H x W x D) 580 x 506 x 620 mm
Weight 38.5 kg (85 lbs)
The DBP-N15 is a compact, passive sub-bass cabinet in double band pass configuration delivering 750W RMS.

It features one 15” transducer (4” edgewound copper voice coil with polyimide fiber glass) with nomex surround for increased protection and control. The magnetic structure generates a symmetrical magnetic field and provides an efficient thermal path contributing to heat dissipation.

The DBP-N15 has been designed to be used with the QB-8, QB-10, QB-12, QB-D6 and QBD8 to extend the low frequency support. It is made from premium birch plywood and coated with high resistant waterbased black paint, includes integrated handles, rubber feet and top hat insertion point for satellite combination with the QB Series. The cabinet can be used in both horizontal and vertical configuration.
The DBP-N15 features one 15” transducer (4” edgewound copper voice coil with polyimide fiber glass) with nomex surround for increased protection and control. The magnetic structure generates a symmetrical magnetic field and provides an efficient thermal path contributing to heat dissipation.
