High Output, self powered (class D switch mode power supply), two-way cabinet.
Consists of a 12″ (3″ voice coil) neodymium magnet transducer with and a 1″ compression driver with a titanium diaphragm mounted on a 80ºH x 60ºV constant directivity elliptical horn.
DSP (FIR technology) controlled with 1000W amplification, 133dB SPL.


Live Sound / Events
Stage monitor
Portable sound reinforcement
Compact voice reinforcement



Components LF/MF 12″ Neodymium + 1″ exit throat titanium diaphragm HF driver
Frequency range 50 Hz – 20 KHz
Frequency Response 55 Hz – 18 KHz (+/-3 dB)
Max. SPL 130 dB / 133 dB peak
Coverage angle 80º H x 60º V
Power Amplifier 1000 W Class D with Switching Power supply
LF/MF amplifier 1 x 500 W
HF amplifier 1 x 500 W
Processing 56 bit Lynx DSPB-22 with FIR filters
Cabinet adjustment Side panel LCD
Internal Controls Temperature sensor, Fan speed / Online Control OCS system
Control Connections XLR / Ethernet (OCS) optional
AC Power 230V / 115V selectable. 50/60 Hz 5A
AC Connections 16A Neutrik Powercon with link output
Material 15mm Premium birch plywood
Finish High resistant water-based black paint and foam protector
Dimensions (H x W x D) 670 x 399 x 388 mm
Weight 24 kg (53 lbs)

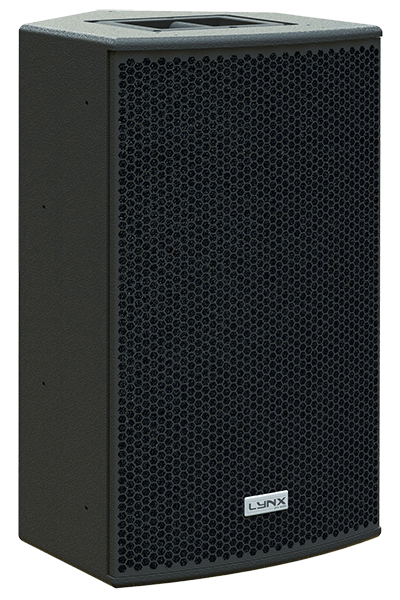

The versatile, portable GR-12 has been designed to offer the utmost sound reinforcement reliability, incorporating the latest acoustical and electronical technology and delivering incredible,dynamic sound. The GR-12 is a selfpowered, DSP (FIR technology) integrated cabinets designed to be a truly multi-purpose cabinet.

The GR-12 is a high power, two-way full range cabinet providing exceptional performance. For the low-mid frequencies it uses one 12” neodymium (3” copper voice coil) transducer with ventilated voice coil for reduced power compression. The high frequencies are looked after by a 1” compression driver with a (44mm voice coil) titanium diaphragm mounted on an 80ºH x 60ºV constant directivity die-cast aluminium elliptical horn. The GR-12 is powered with a total of 1000W of class D amplification, 500W for the low/mid frequencies and 500W for the high frequencies. Each cabinet has a DSP integrated for system protection and optimization.

The compact GR-12 has an unbeatable power to size ratio, there is no need for external amplification racks, is very light weight and is the ideal solution for portable or fixed sound reinforcement. A variety of rigging options make the GR-12 easy to set-up in minimal time. To extend the low frequency response, the GR-18S is recommended.

Bi-amplified Class D with switching power supply. 1000W power module (500W for the LF/MF and 500W for the HF).
The amplification far exceeds the transducers needs thus resulting in high output, high damping factor and extremely low levels of distortion.
The module is also equipped with extensive protection circuitry including power limiters, thermal shutdown, short circuit & overload and clip limiter.




The cabinets offer Digital Signal Processor integrated and Online Control System


Check more details

Click Here


For the low-mid frequencies it uses one 12” with neodymium magnet group (3” copper voice coil) transducer and ventilated voice coil gap for reduced power compression and improved heat dissipation.

The high frequencies are looked after by a 1” compression driver with a (44mm voice coil) titanium diaphragm mounted on an 80ºH x 60ºV constant directivity die-cast aluminium elliptical horn. Ventilated Titanium diaphragm for the HF driver increasing the life of the components with low distortion and remarkable improvements in mid-high frequency reproduction. Mounted on a 80º x 60º constant directivity elliptical aluminium horn with very high structural rigidity, optimum heat transfer and low distortion. A spherical wave-front, avoids reflections and other disadvantages normally associated with diffraction horns.




M6 eye bolt for the GR-12
35mm connecting pole for satellite combination between sub units and GR-12
35mm lightweight aluminium stand for the GR-12
Wall bracket for the ADP-15 for top hat insertion
Flight case for 2 x GR-12





Phase ResponsePhase Response GR12



LYNX_ GR-12_2D
