ADP-26


High Output, self-powered (Class D switch mode power supply), two-way cabinet.
Consists of two 6″ (1.5″ voice coil) neodymium magnet transducers with aluminium demodulating rings and a 1″ compression driver with titanium diaphragm, mounted on a 90ºH x 60ºV rotatable, exponential horn.
DSP (FIR technology) controlled with 1000W amplification, 127dB SPL.

Applications

Smaller Live Stages/Events
Theatres & amp; Auditoriums
Front fill / Side fill reinforcement
Small/middle sized Clubs Discos
Houses of worship
Portable sound reinforcement



Specifications
Components LF/MF 2 x 6″ neodymium (aluminium demodulating rings) + HF 1″ titanium diaphragm driver
Frequency range 65 Hz – 20 KHz
Frequency Response 75 Hz – 18 KHz ± 3 dB
Max. SPL 124 dB / 127 peak
Coverage angle 90º H x 60º V rotatable horn
Power Amplifier 1000 W Class D
LF/MF amplifier 1 x 500 W
HF amplifier 1 x 500 W
Processing 56 bit Lynx DSPB-22 with FIR filters
Cabinet adjustment back panel LCD
Internal Controls Temperature sensor, Online Control system
Control Connections XLR / Ethernet (OCS) optional, USB (DSP programming)
AC Power 230V / 115V selectable. 50/60 Hz 5A
AC Connections 16A Neutrik Powercon with link output
Material 15mm Premium birch plywood
Finish High resistant water-based black paint
Dimensions (H x W x D) 530 x 222 x 269 mm
Weight 13kg (28 lbs)

The versatile ADP-26 is part of the ADP Self powered, DSP integrated Series. It has been designed to offer the utmost sound reinforcement reliability, incorporating the latest acoustical and electronical technology and delivering incredible, dynamic sound.



The ADP-26 is an extremelly high power, two way full range cabinet providing exceptional performance. For the low-mid frequencies it uses dual 6” (1.5” copper voice coils) neodymium transducers with aluminium demodulating rings considerably reducing distortion. The high frequencies are looked after by a compression driver with a 1.7″ aluminium voice coil, titanium diaphragm mounted on a 90º x 60º aluminium rotatable exponential horn. The ADP-26 is powered with a total of 1500W of class D amplification, 500W for the low/mid frequencies and 500W for the high frequencies. Each cabinet has a DSP integrated for system protection and optimization. This DSP applies linear phase (FIR) and classical crossovers. Other features include temperature sensor, fan speed control, Ethernet options and many more.



The compact ADP-26 has an unbeatable power to size ratio, there is no need for external amplification racks, is very light weight and is the ideal solution for portable or fixed sound reinforcement. A variety of rigging options make the ADP-26 easy to set-up in minimal time. To extend the low frequency response, the ADP-18S sub bass cabinet can be used.


Bi-amplified Class D with switching power supply. Includes one 750W power module for the 6” transducers and another 750W power module for the HF driver.

The amplification far exceeds the transducer needs thus resulting in high output, high damping factor and extremely low levels of distortion.





DSP-Grey
Lynx ocs-icon


The cabinets offer Digital Signal Processor integrated and Online Control System



Check more details

Click Here





Components ADP-26



Speaker-adp-26

For the low-mid frequencies it uses one 12” (4” interleaved sandwich voice coil) neodymium transducer with nomex cones and suspension.

For the low-mid frequencies it uses dual 6” (1.5” copper voice coils) neodymium transducers with aluminium demodulating rings considerably reducing distortion.

The high frequencies are looked after by a compression driver with a 1.7″ aluminium voice coil, titanium diaphragm mounted on a 90º x 60º aluminium rotatable exponential horn.

Transducer and driver with neodymium magnet groups. Copper voice coil and Aluminium demodulating ring considerably reducing distortion, weather protected membrane for outdoor use.

Titanium diaphragm for the HF driver increasing the life of the components with aluminium voice coil and shorting copper cap for extended HF response mounted on a 90º x 60º aluminium rotatable horn.



Accessories



AGR-6
AGR-6
M6 eye bolt for the ADP-26
SB-02
SB-02
35mm lightweight aluminium stand for the ADP-26
TU-C01
TU-C01
35mm connecting pole for satellite combination between sub units and ADP-26
TU-C02
TU-C02
M20 pole support combination between sub units and ADP-26. With safety lock
VSM-V1
VSM-V1
35mm speaker mounting top hat for ADP-26 with the ADP-18S or ADP-12S
Wb-03
WB-03
Wall bracket for the ADP-26 for top hat insertion



Hardware ADP-26



Enclousure-adp-26


Enclosure

The ADP-26 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with high-resistant water based black paint.



ADP-int

Internal design

The internal structure of the ADP-26 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rearpanel-adp-26


Rear panel

The powder coated steel rear panel contains all connections and houses the ADP-26 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill-adp-26


Grill

The ADP-26 has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.





Frequency/ Phase Response



ADP-26 Polar Response



Polars



100Hz

ADP26@100Hz

250Hz

ADP26@250Hz

400Hz

ADP26@400Hz

630Hz

ADP26@630Hz

1000Hz

ADP26@1000Hz

2000Hz

ADP26@2000Hz

4000Hz

ADP26@4000Hz

6300Hz

ADP26@6300Hz

8000Hz

ADP26@8000Hz

10000Hz

ADP26@10000Hz

12500Hz

ADP26@12500Hz

16000Hz

ADP26@16000Hz



Dimensions

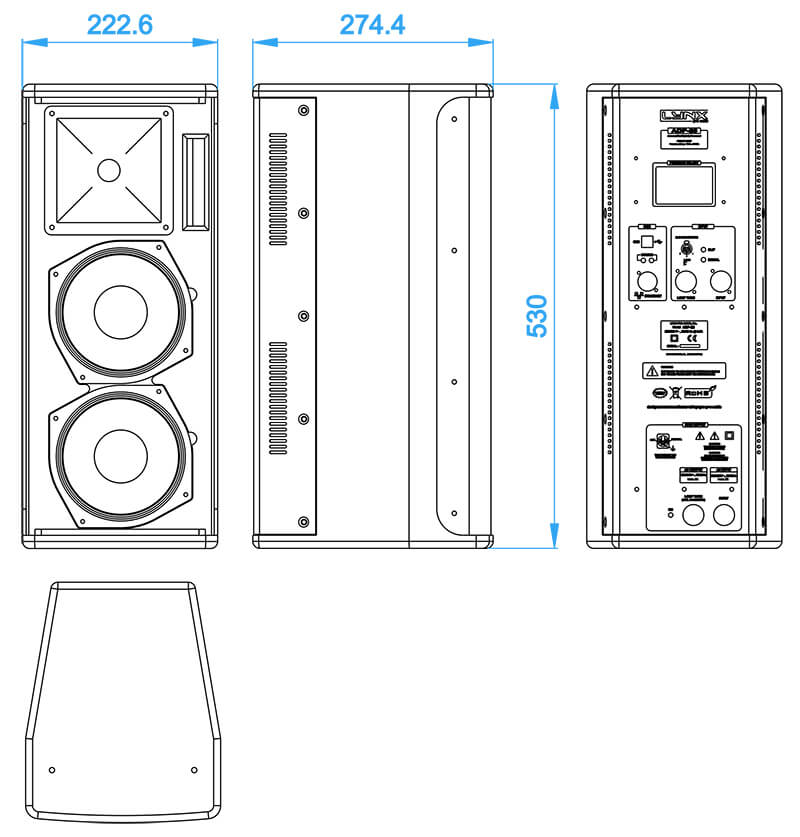

LYNX_ADP-26-measures
