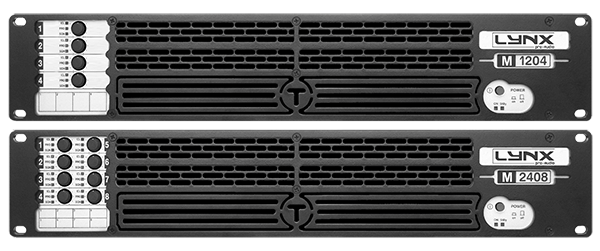

M SERIES



The M Series of amplifiers has been specifically developed for fixed installation and network applications. They offer up to eight independent channels per unit to allow for as many zoning possibilities.



Need something urgent?





For more information about our Amps
 feel free to contact us

Specifications

M Series



M-604

M-1204

M-1208

M-2048

 Output power
Continuous Average Power RMS, 1KHz, 1.0% THD+N
 @ 4 Ohms 4 x 160 W 4 x 320 W 8 x 150 W 8 x 300 W
 @ 8 Ohms 4 x 115 w 4 x 220 W 8 x 100 W 8 x 195 W
 Bridge @ 8 Ohms 2 x 320 W 2 x 640 W4 x 300 W4 x 600 W
 Pink noise @ 4 Ohms 4 x 210 W 4 x 415 W 8 x 180 W 8 x 370 W
 Frequency Response
 Power Bandwidth ± 0.25dB20 Hz – 20 KHz  20 Hz – 20 KHz 20 Hz – 20 KHz 20 Hz – 20 KHz
 Phase Response
 @ 1 W 20Hz-20KHz±15 deg  ±15 deg  ±15 deg  ±15 deg
 Total Harmonic Distortion
 20Hz-20KHz<0.05%  <0.05%  <0.05%  <0.05%
 Intermodulation Distortion
 SMPTE <0.05% <0.05% <0.05% <0.05%
 Crosstalk
 20Hz-1KHz >70 dB >70 dB >70 dB >70 dB
 Voltage Gain
  26-32-38 dB 26-32-38 dB 26-32-38 dB26-32-38 dB
 Sensitivity
 Rated Power (26/32/38dB Gain) 1.5/0.8/0.4 V  2.1/1.0/0.5 V 1.4/0.7/0.4 V 2.0/1.0/0.5 V
 Signal to Noise Ratio
 20Hz-20KHz 107dB  110dB 107dB 110dB
 Required AC Mains
 Operating Voltage (50Hz-60Hz) 170V -265V AC 170V -265V AC 170V -265V AC 170V -265V AC
 230V AC-50HZ (iddle) 0.5 A 0.5 A 0.5 A 0.5 A
 1/8 Rated Power (@8 Ohm) 1 A 1.5 A 1.4 A 2.6 A
 Dimmensions
 W x H x D (mm) 483 x 89 x 210 483 x 89 x 210 483 x 89 x 210 483 x 89 x 210
 W x H x D (inches) 19 x 3.5 x 8.27 19 x 3.5 x 8.27 19 x 3.5 x 8.27 19 x 3.5 x 8.27
 Weight
 Net  5.4 Kg / 11.8 lbs 5.4 Kg / 11.8 lbs 6.2 Kg / 13.5 lbs  6.2 Kg / 13.5 lbs
 Protections
 Soft-start, Turn-on Turn-off muting, Over-heating, DC, RF, Short-circuit, Open/mismatched loads, Overloaded power supply, ICL™, PMS™, SSP™
