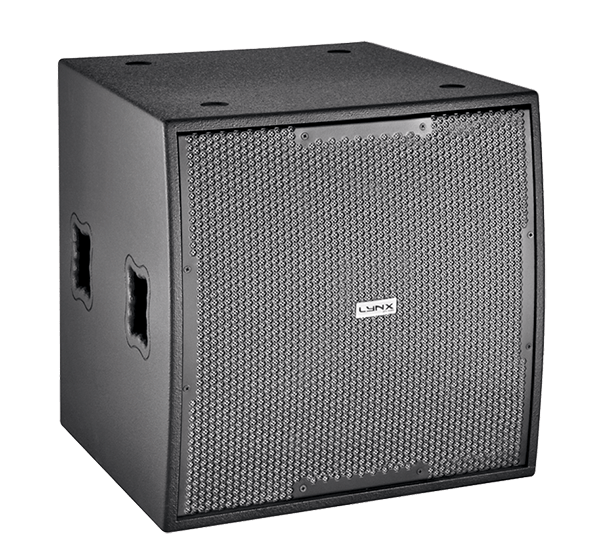

HR 18/6



Medium power, sub-bass cabinet with one 18” low frequency in bass reflex, direct radiation configuration. 135dB SPL (1200W Program)



Applications

Club & Bar installations
Sound reinforcement
Theatres
Houses of worship
Multi media spaces
Public address
Specifications
Components 1 x 18″, 3″ copper voice coil
Frequency range 40 Hz – 200 Hz (-10dB)
Frequency Response 46 Hz – 200 Hz (± 3dB)
Sensitivity 101 dB (1W@1m) π
Max. SPL 129 dB – 135 dB Peak
Coverage Omnidirectional
Rated Power (AES) 600 W (1200 W program, 2400 W peak)
Crossover Active
Impedance 8 Ohms
Connectors 2 x Neutrik Speakon NL4MP
Finish High resistant water-based black paint – other colours (RAL) available
Material 18mm Premium birch plywood
Dimensions (H x W x D) 511 x 505 x 681 mm
Weight 32 Kg (70.5 lbs)

Hardware HR-18/6





Enclousure-ADP


Enclousure

The HR-18/6 cabinet is constructed from 13-ply premium birch plywood (18mm thickness) and finished with high-resistant water based black paint

ADP-int


Internal design

The internal structure of the HR-18/6 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

Rigging HR-18-6


Rear panel

A compact powder coated steel panel contains the connectors.

Grill HR-18-6


Grill

The HR-18/6 has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handle HR-18-6


Handles

An ergonomic handle is located on each side of the HR-18/6 enclosure to facilitate transport, positioning and loading of the cabinets

Dimensions
