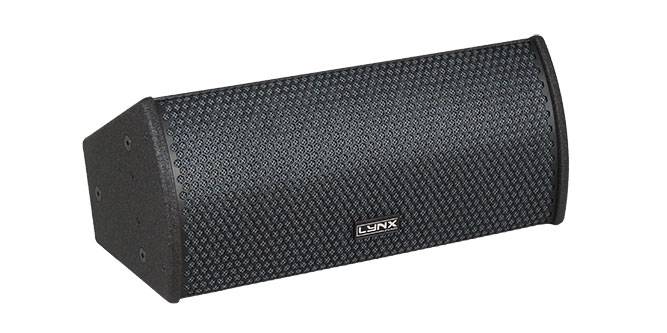

HR-26

Pure install speaker

High performance, ultra-compact, full range, two way bi-amp/ passive cabinet.

Description

The HR-26 enclosure is a high-performance passive full range, with an excellent power-size ratio.It consists of two 6.5”transducers (at 8ohm impedance) and a 1”high frequency compression driver. It offers a wide dispersion of 90º x 60º and 122dB SPL (800W program).

This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications and has several accessories that provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.

For Low Frequency reinforcement, several subwoofer options are available.

N

Perfectly suited for:

→  Club & Bar installations
→  Sound reinforcement
→  Houses of worship
→  Multi media spaces
→  Public address
→  Theatres

Technical Data

Components
LF: 2 x 6.5″, 2″ voice coil
HF: 1″ Exit compression Driver , 1.75″ aluminium voice coil, PM-4 polymer diaphragm
Frequency Range 72 Hz – 20 KHz (-10dB)
Frequency Response
78 Hz – 18 KHz (± 3dB)
Sensitivity Passive Mode: 90 dB (1W@1m)
Max SPL
Passive Mode: 117dB – 122dB Peak
Bi-Amp LF: 119dB – 125dB Peak
Bi-Amp HF: 125dB – 131dB Peak
Coverage Angle 80º H x 60 º V Constant directivity horn
Power
Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)
Crossover Bi-Amp / Passive (Selectable)
Nominal Impedance
Ω – also available in 4 Ω
Connectors 2 x Neutrik Speakon NL4MP
Finish
Polyurea coating – other colours (RAL) available
Material 15 mm premium birch plywood
Dimensions
249 x 568 x 252 mm (H x W x D)
Weight 15 Kg (33 lbs)

More features

Accessories for HR-26
AGR-6 AGR-10
Eye bolt for the HR-26
HBR-28 HBR-26
Horizontal bracket for the HR-26
Marine Grade Option

This cabinet is also available for Marine environments, such as cruise ships for example.

Our Marine option speakers are designed to withstand harder weather conditions, where the cabinets are exposed to the elements.

Colours:

  • Black polyurea coating with microtextured metal parts.
  • RAL available on request. Polyurea coating with aliphatic colour paint.

1. Anodized aluminium logo for durability outdoors.

2. Stainless steel 1 mm 316 L grill. Also available in aluminum with protective layer and micro textured paint.

3. Weatherstrip edging for extreme protection.

4. Acoustex filter: hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions.

5. 35 ppi Acoustic foam to protect against dust particles.

6. Waterproof protected cone on both sides

7. Aluminum back plate with pressure gland for an extra tight connection and easy installation.

8. M10 stainless steel 316 L screws (A4).
