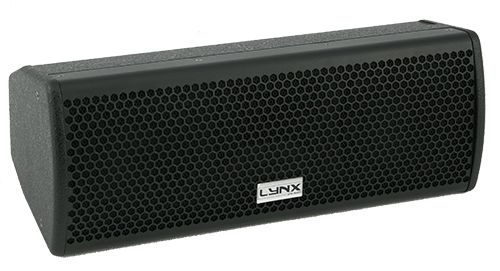

QB-D6



High performance, ultra-compact, full range, two way passive cabinet. It consists of two 6” transducers (at 8ohm impedance) and a 1” high frequency compression driver. It offers a wide dispersion of 80ºH x 60º V and 121 dB SPL (800W program).

Applications

Club and Bar Installs
Theatres
Multi media spaces
Front-Fill
Sound reinforcement
Public Address
Conference



Specifications
Components LF 2 x 6″ transducer + 1″ HF driver
Frequency range 70 Hz – 20 KHz
Frequency Response 78 Hz – 18 KHz ± 3 dB
Sensitivity 95 dB (1W @ 1m)
Max. SPL 121 dB
RMS power 400 W
Program power 800 W
Coverage angle 80ºH x 60ºV
Impedance 8 Ohm
Input Connectors 2 x Neutrik Speakon NL4MP
Material 15mm Premium birch plywood
Finish High resistant water-based black paint. black steel grill with acoustic fabric protection
Dimensions (H x W x D) 570 x 222 x 251 mm
Weight 15 kg (33 lbs)
The QB-D6 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance in a number of applications. The QB-D6 can be used horizontally and is ideal for installations with low ceilings. Although it has 2 speakers the total impedance is 8ohms simplifying installation, maintaining cost effectiveness and delivering a high power output of 400W RMS.

It features two 6” low/mid transducers with rubber surround and a 1” central loaded high frequency compression driver with high tech polymer diaphragm mounted on a 80º x 60º constant directivity ABS horn delivering exceptional dispersion and low harmonic distortion.

With a wide range of rigging accessories the QB-D6 can be used and easily mounted in a variety of applications. A top hat fitting is included as standard for pole mounting with a sub-bass cabinet. It is made from premium birch plywood and coated with high resistant water-based black paint. For low-frequency reinforcement the QBD6 can be combined with any of the QB sub-bass cabinets.
The QB-D6 features two 6” low/mid transducers with rubber surround and a 1” central loaded high frequency compression driver with high tech polymer diaphragm mounted on a 80º x 60º constant directivity ABS horn delivering exceptional dispersion and low harmonic distortion.
