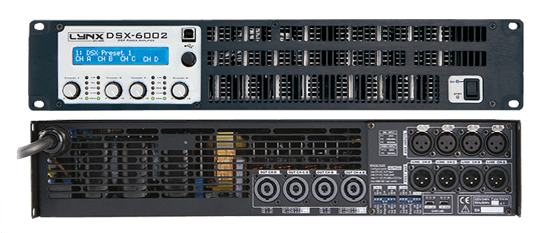

DSX Series



The DSX series offer a high end solution for all professional users. Select from 4 models with 4 channel plenty of power levels.





The DSX models offer a powerful, reliable and lightweight amplifier with advanced features. To get the most of your sound system the DSX series offer a fully programable Digital Signal Processor.

This is an excellent choice for high power audio cabinets in fixed sound installations or touring.





Specifications





DSX-4002

DSX-1004

DSX-6002

DSX-1504

 Output Power
 @ 2 Ohms  4 x 980 W   – –  4 x 1440W   – –
 @ 4 Ohms  4 x 670 W  4 x 975 W  4 x 1000 W  4 X 1480 w
 @ 8 Ohms  4 x 430 W   4 x 690 W  4 x 620 W   4 x 1015 W
 Bridge @ 4 Ohms  2 x 1960 W    – –  2 x 2880 W    – –
 Bridge @ 8 Ohms  2 x 1340 W  2 x 1950 W  2 x 2000 W  2 x 2960 W
 Frequency Response
 Power Bandwidth ± 0.25 dB  20Hz-20KHz  20Hz-20KHz  20Hz-20KHz  20Hz-20KHz
 Phase Response
 @ 1 W 20Hz-20KHz  ±15 deg  ±15 deg  ±15 deg  ±15 deg
 Total Harmonic Distortion
 20Hz-20KHz  <0.05%  <0.05%  <0.05%  <0.05%
 Intermodulation Distortion
 SMPTE  <0.05%  <0.05%  <0.05%  <0.05%
 Damping Factor
 20-500Hz @ 8 Ohms   >500   >500   >500   >500
 Crosstalk
 20Hz-1KHz  >75 dB  >75 dB  >75 dB >75 dB
 Voltage Gain
   26/32/38 dB  26/32/38 dB  26/32/38 dB  26/32/38 dB
 Sensitivity
 Rated Power @ 8 Ohm (V)  3.0/1.5/0.8 V  3.7/1.9/0.9V  3.5/1.8/0.9 V  5.0/2.5/1.3V
 Signal to Noise Ratio
 20HZ-20KHz  113 dB  116dB  116 dB  118 dB
 Required Mains
 230V – 50 Hz (idle)  0.5 A  0.5 A  0.5 A  0.5 A
 @ 4 Ohm (1/8 rated power) 7,5 A  11 A   1o.5 A  15 A
 Dimmensions
 W x H x D (mm)  483 x 89 x 310  483 x 89 x 310  483 x 89 x 310  483 x 89 x 310
 Weight
 Net  8,5 Kg   8,5 Kg    8,6 Kg   8,6 Kg
 Protections
Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overload, ICL™, PMS™ and SSP™
