GTX Series
Amplifiers
The GTX Series are 4-channel, extremely high power level amplifiers designed to withstand the rough requirements of the touring market.
With outstanding, high efficiency, these amplifiers have been equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.
Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired.
Optional Dante Networking (AES67) and AES3 Digital inputs are also available.
Technical Data
GTX-5K |
GTX-10K |
GTX-14K |
GTX-20K |
|
| Output power | ||||
| @ 2 Ohms | 4 x 1250 W / 1 x 1250W | 4 x 2500 W / 1 x 2500W | 4 x 3500 W / 1 x 3500W | 4 x 5000 W / 1 x 5000W |
| @ 4 Ohms | 4 x 1250 W / 1 x 2500W | 4 x 2500 W / 1 x 2500 W | 4 x 3500 W / 1 x 3750W | 4 x 5000 W / 1 x 6000W |
| @ 8 Ohms | 4 x 1250 W / 1 x 1250W | 4 x 1250 W / 1 x 1300 W | 4 x 1800 W / 1 x 1900W | 4 x 2500 W / 1 x 3000W |
| Bridge @ 4 Ohms | 2 x 2500 W | 2 x 5000 W | 2 x 7000 W | 2 x 10000 W |
| Bridge @ 8 Ohms | 2 x 2500 W | 2 x 5000 W | 2 x 7000 W | 2 x 10000 W |
| Hi-Z 100V | 4 x 1250 / 1 x 2500 W | 4 x 2500 / 1 x 2500 W | 4 x 3500 / 1 x 4200 W | 4 x 5000 / 1 x 5000 W |
| Hi-Z 70V | 4 x 1250 / 1 x 2500 W | 4 x 2500 / 1 x 2500 W | 4 x 2950 / 1 x 2950 W | 4 x 3500 / 1 x 3500 W |
| Max output voltage | ||||
| 150 V peak | 150 V peak | 189 V peak | 235 V peak | |
| Max output current | ||||
| 36 A peak | 50 A peak | 59 A peak | 71 A peak | |
| Total Harmonic Distortion | ||||
| 20Hz-20KHz | <0.05% | <0.05% | <0.05% | <0.05% |
| Crosstalk | ||||
| 20Hz-1KHz | >70 dB | >70 dB | >70 dB | >70 dB |
| Voltage Gain | ||||
| 26 dB to 44 dB | 26 dB to 44 dB | 26 dB to 44 dB | 26 dB to 44 dB | |
| Signal to Noise Ratio | ||||
| 20Hz-20KHz | 111 dBA | 111 dBA | 113 dBA | 115 dBA |
| Required AC Mains | ||||
| Operating Voltage (50Hz-60Hz) | 90V -265V AC | 90V -265V AC | 90V -265V AC | 90V -265V AC |
| 1/8 Rated Power (230V, @4 Ohm) | 3.7 A | 7.3 A | 10 A | 14 A |
| Dimmensions | ||||
| W x H x D (mm) | 483 x 88.9 x 355 | 483 x 88.9 x 355 | 483 x 88.9 x 355 | 483 x 88.9 x 355 |
| W x H x D (inches) | 19 x 3.5 x 13.9 | 19 x 3.5 x 13.9 | 19 x 3.5 x 13.9 | 19 x 3.5 x 13.9 |
| Weight | ||||
| Net | 7 Kg / 15.4 lbs | 7 Kg / 15.4 lbs | 7.5 Kg / 16.5 lbs | 7.5 Kg / 16.5 lbs |
| Protections | ||||
| Soft-start, Turn-on Turn-off transients, Multing at turn-on, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overloaded power supply, ICL™ and PCM™ | ||||
More features
DSP specifications
Overall:
- High performance 96kHz/24 bits AD/DA converters
- 64 bit double-precision 96kHz DSP process
- 0.85 ms minimum process latency time
- Custom FIR process up to 1000 taps
- Dante and AES3 input versions
Input Section (x4):
- Gain, Mute and Phase inversion
- Delay: in In A: 333ms (114m), In B/C/D: 90ms (31m)
- Input EQ: 16 filters (Param., Shelving, LP, HP, BP, SB, AP)
Output Section (x4):
- Crossover Filters: FIR and IIR (up to 48dB/oct, Butterw./LR/Bessel)
- Output Delay: 0 to 31 meters (90ms) per channel
- Output IIR EQ: 12 filters per channel (Param., Shel, LP, HP, BP, SB, AP)
- Output FIR EQ: 20 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP), or Custom. Up to 1000 taps
- RMS and Peak limiter per channel
Communications:
- Two ports Ethernet switch for daisy chain connection
- UBS 2.0 Type B port
Miscellaneous:
- 100 Manufacturer system preset memories library
- 20 User preset memories library
- 20 User snapshot memories library
- Manufacturer/User passwords
- User control groups for virtual Equalization, Gain and Delay
- Zones definition for library management and alerts information
- Smaart® analysis software integration
DSP management using OCS and amplifier display
Two working modes: User and Advanced
User functionalities:
- Input Routing matrix Analog/Dante/AES3
- Input EQ section with 8 filters and 20 memories
- Input EQ Mode section
- System Preset selection (Locked/Unlocked)
- Snapshot library management up to 20 presets
- Master Control Groups
Advanced functionalities:
- Input EQ Mode section creation, up to 20 presets
- Ways routing section (Locked/Unlocked)
- IIR EQ section: XOver, Gain, Delay and 7 EQ filters
- FIR EQ section: linear phase XOver and EQ filters, or custom up to 1000 taps
- RMS and Peak Dynamic control
- Snapshot Preset library management up to 20 presets (Locked/Unlocked)
- System Preset library management up to 100 pre-sets
- 5 Security levels definition to limit final user functionality
 |

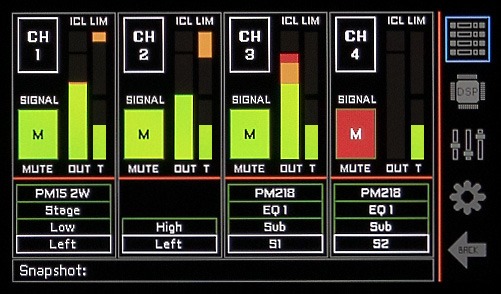

Home screen Main screen with the following options: |
 |

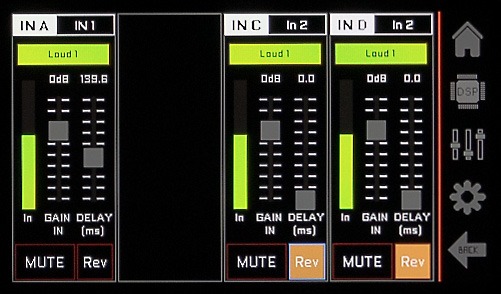

DSP Edit screen · Input source select
· Input channel select · User input name label · Input process select · User EQ select · Group process values
· Channel Join · System select · Use select · Way select |
 |

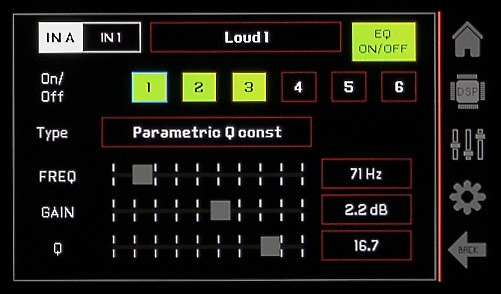

User EQ screen · Input level process
· Select user input gain · Select user delay value · Input mute
· Input Signal Polarity · User EQ adjust per channel |
 |
EQ screen: · 6 parametric EQ
· High-pass filter · 16 EQ types selection · Gain, Q and Frequency control
· General EQ Bypass |
