Compact, two-way passive cabinet. Consists of a 15” (3” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn.
The BS-15 is a compact, two-way passive cabinet. Consists of a 15” (3” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.
The 15” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The ultra compact 1” HF driver achieves high sensitivity, with exceptional dynamic range creating remarcable depth and definition.
The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over medium distances. Although the BS-15 can be used without processor we recommend that the cabinet presets are applied for maximum optimization and performance.
Perfectly suited for:
|→ Club & bar installations|
|→ Sound reinforcement|
|→ Houses of worship|
|→ Multi media spaces|
|→ Public address|
LF: 15” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25,4 mm) voice coil, annular diaphragm driver
|Frequency Range||55 Hz – 20 KHz (-10dB)|
|Max SPL/Peak*||124 dB / 130 dB|
400W AES (800W program, 1600W peak)
|Dispersion||90º x 60º rotatable|
|Connectors||2 X NEUTRIK Speakon NL4|
|Material||15 mm premium birch plywood|

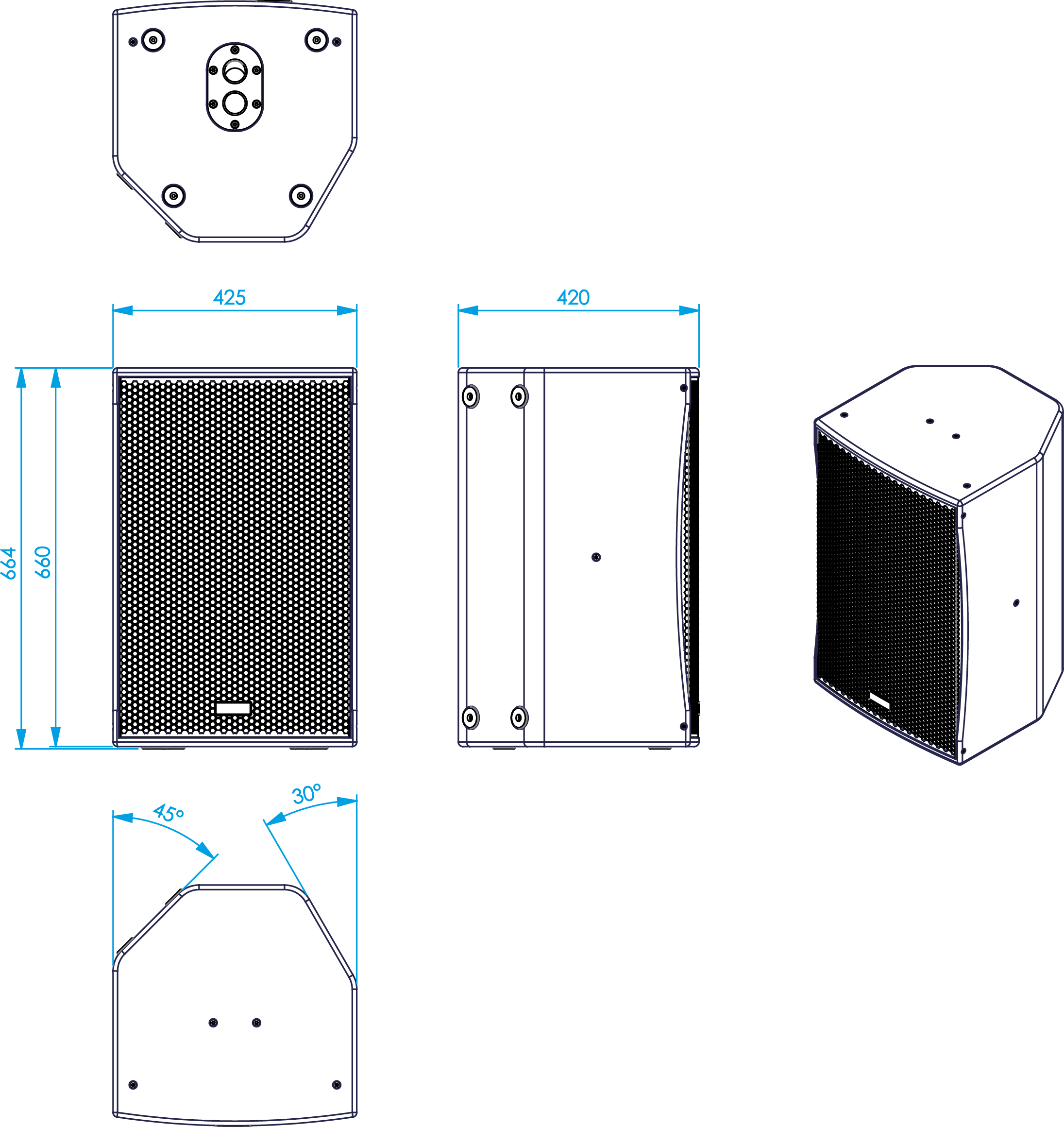

664 x 425 x 420 mm (H x W x D)
|Weight||24 Kg (52.9 lbs)|
5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position
|Accessories||U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole|
Multi angle enclosure
* Calculated maximum SPL based on rated peak power and measured sensitivity
Hardware for BS-15
This cabinet is constructed from premium birch plywood (15mm thickness) and finished with polyurea coating.
The internal structure of the cabinet is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.
Discreet, integrated rear connection speakon panel.
The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.
An ergonomic handle is located on each side of the cabinet.
Double pole mount
M20 pole support for tripod or satellite setup with subwoofer with different inclination angles.
The BS-15 features one 15” low/mid transducer with FEA optimized ceramic magnetic circuit, low harmonic distortion and linear response, waterproof cone (treated on both sides) and a 1” high frequency driver with annular diaphragm delivering exceptional dynamic range, mounted on a rotatable 90º x 60º horn enabling the cabinet to be used horizontally or vertically.
Accessories for BS-15
M20 pole support for combination between sub and satellite cabinet
Lightweight aluminium stand
Wall bracket for BS-15
U bracket for BS-15
