GXR-D18A

Powered subwoofer

High output subwoofer, self-powered class D, equipped with two 18″ (4″ voice coil) speakers. DSP controlled with 3000W, 135 dB SPL.

Description

The GXR-D18A is part of the GXR line array system (ideal for install projects and live events where a compact line array is required). This subwoofer is the perfect solution where extreme low frequency support is required.

The GXR-D18A is a self-powered 3000 W (class D) enclosure and uses two 18″ (4″coil) Low Frequency drivers. The GXR-D18A subwoofers are specifically designed to be stacked and are very easy to use and control without the need for any external amps.

The GXR-D18A has a selection of rigging hardware & accessories available: Transport dolly, nylon protection cover, rain hood, etc.

N

Perfectly suited for:

→  Live PA
→  Houses of worship
→  Clubs
→  Fixed Installations
→  Touring
→  Theatres

Technical Data



Components
LF: 2 x 18”, 4” voice coil, neodymium magnetic assembly
Frequency Range 30 Hz – 120 Hz (-10dB)
Frequency Response
35 Hz – 100 Hz (± 3dB)
Max SPL 135 dB / 141 dB peak
Coverage Angle
Omnidirectional
Power 3000W Class D with switching power supply & PFC
LF Amplifier
1 x 3000 W
Processing

96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

Control
User control interface with 2.8″ IPS screen
Control Connections Ethernet (OCS) / USB (DSP updating)
Input Analog / AES3 optional
AC Power
90 – 264V. 50/60 Hz with PFC
AC Connections 16A Neutrik powerCon TRUE1 with looping output
Finish
Polyurea coating, black colour
Material 18 mm premium birch plywood

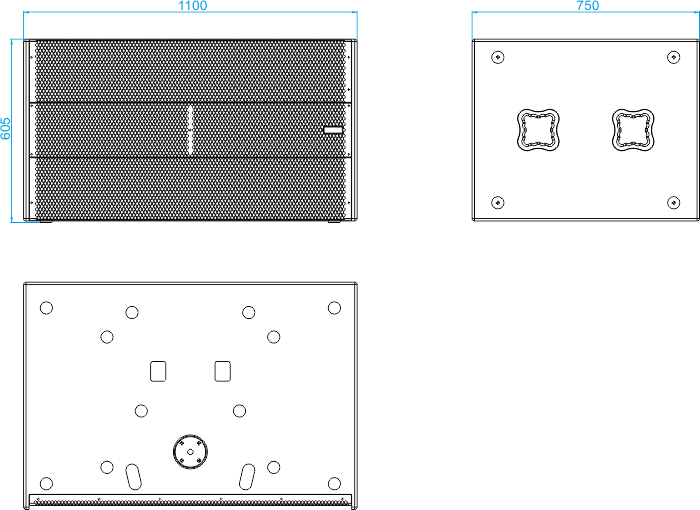

Dimensions
605 x 1100 x 750 mm (H x W x D)
Weight 92 kg (202 lbs)

More features

Hardware for GXR-D18A
Enclousure-v12
Enclosure

The GXR-D18A cabinet is constructed from 13-ply premium birch plywood (18mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the GXR-LA10A is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rear panel

The powder coated steel rear panel contains all connections and houses the GXR-D18A amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency.

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

Four handles are located on each side of the enclosure to facilitate transport, positioning and loading of the cabinets.

Rigging

Built-in flying points are located on each side of the enclosure to link the cabinets together or fix it to the flying frame.

Transport

The cabinet is easy to transport thanks to its dedicated dolly and a protective nylon cover is also available to protect the enclosure and keep it clean on tour.

Amplification & DSP
Bi-amplified Class D with switching power supply and PFC (Power Factor Correction). With PFC the power supply regulates itself when AC mains change, so the amp power output will not change with mains swinging. The amplification far exceeds the transducers needs thus resulting in high output, high damping factor and extremely low levels of distortion.

This system is also very environmentally friendly with a reduction of approximately 40% of current draw.

Accessories for GXR-D18A
CA-LXV12 CA-GXRD18
Transport dolly for GXR-D18A
Rain-Cover
FD-GXRD18NL
Rain cover for the back panel of the GXR-D18A
FD-4LXV8
FD-GXRD18/2
FD-GXRD18/3
Nylon protection cover for 2 or 3 GXR-D18A subwoofers
GR-18Wkit GR-18WKIT
Wheel kit for subwoofer GXR-D15A and GXR-D18A



 DSP configuration

DSP module configuration panel

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP. Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, adjustments, folder, configuration and information.

Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following pictures are an example and may change.



Configuration panel:

HOME

On the main screen you can see the cabinet’s input and output:

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

DSP module configuration panel

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP. Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, adjustments, folder, configuration and information.

Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following pictures are an example and may change.

HOME

On the main screen you can see the cabinet’s input and output.

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

FOLDER:

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION:

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION:

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

GXR-D18P – Passive Option

Specifications
Components

LF: 2 x 18”, 4” voice coil, neodymium magnetic assembly

Frequency Range 30 Hz – 120 Hz (-10dB)
Frequency Response 35 Hz – 100 Hz (± 3dB)
Sensitivity 100 dB
Max. SPL / Peak*

LF: 134 dB / 139 dB

Rated Power

2000W AES, 4800W program, 9600W peak

Coverage Omnidirectional
Crossover Electronic Crossover
Nominal Impedance

2 x 8 Ω total 4 Ω

Connectors 2 x Neutrik NL4
Finish Polyurea coating
Material 18 mm premium birch plywood
Dimensions 605 x 1100 x 750 mm (H x W x D)
Weight 90 Kg (198.4 lbs)

*Calculated maximum SPL based on rated peak power and measured sensitivity.

Datasheet

Download here

The GXR-D18P is a high output bass reflex omni-directional subwoofer cabinet. Consists of 2 x 18″ (4″ voice coil) neodymium magnetic assembly.

The GXR-D18P subwoofers are specifically designed to be stacked and are very easy to use and control without the need for any external amps.
