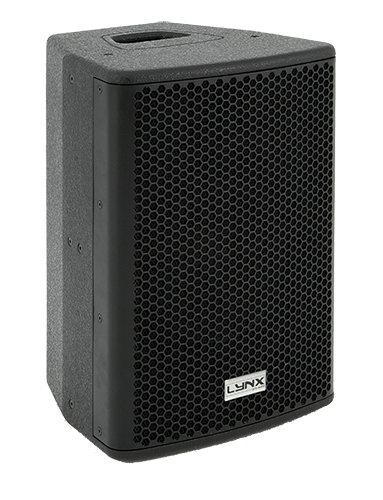

QB-10



High performance, ultra-compact, full range, two way passive cabinet. It consists of a 10” transducer and a 1” high frequency driver. It offers 60º V x 80º H dispersion and 122dB SPL (500W program).

Applications

Club and Bar Installs
Theatres
Sound reinforcement
Multi media spaces
Broadcast
Public Address
Restaurants
Houses of Worship
Conference



Specifications
Components LF 1 x 10″ transducer + 1″ HF driver
Frequency range 60 Hz – 22 KHz
Frequency Response 70 Hz – 20 KHz ± 3 dB
Sensitivity 102 dB (1W @ 1m)
Max.SPL 122 dB
RMS power 250 W
Program Power 500 W
Coverage angle 60º V x 80º H
Input  Connectors 2 x Neutrik Speakon NL4MP
Material 15mm Premium birch plywood
Finish High resistant water-based black paint. black steel grill with acoustic fabric protection
Dimensions (H x W x D) 473 x 336 x 293 mm
Weight 11.5 kg (25.3 lbs)
The QB-10 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance in a number of applications.

It features one 10” low/mid transducer with rear air ventilation and a 1” high frequency driver with mylar diaphragm and alumimium ribbon voice coil mounted on a 60º x 80º horn with excellent dispersion control in a wide frequency range and low harmonic distortion.

With a wide range of rigging accessories the QB-10 can be used and easily mounted in a variety of applications. A top hat fitting is included as standard for pole mounting with a sub-bass cabinet. It is made from premium birch plywood and coated with high resistant waterbased black paint. For low-frequency reinforcement we recommend the QB-10 be combined with the DR-N12 or the DBP-N15.
The QB-10 features one 10” low/mid transducer with rear air ventilation and a 1” high frequency driver with mylar diaphragm and alumimium ribbon voice coil mounted on a 60º x 80º horn with excellent dispersion control in a wide frequency range and low harmonic distortion.
