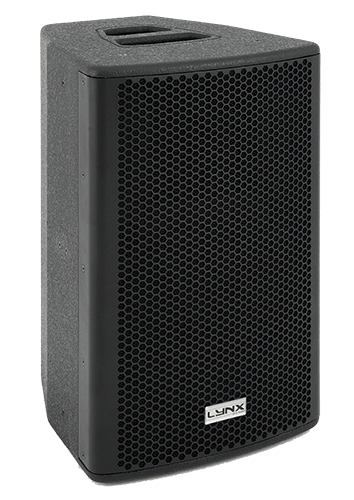

QB-12



High performance, ultra-compact, full range, two way passive cabinet. It consists of a 12” transducer and a 1” high frequency compression driver. It offers a wide dispersion of 90º x 40º (rotatable) and 129 dB SPL (800W program).

Applications

Club and Bar Installs
Theatres
Sound reinforcement
Multi media spaces
Live sound
Public Address
Portable sound reinforcement
Houses of Worship
Conference



Specifications
ComponentsLF 1 x 12″ transducer + 1″ HF driver
Frequency range50 Hz – 20 KHz
Frequency Response55 Hz – 18 KHz ± 3 dB
Sensitivity103 dB (1W @ 1m)
Max. SPL129 dB
RMS power400 W
Program power800 W
Coverage angle90º x 40º Rotatable
Input Connectors2 x Neutrik Speakon NL4MP
Material15mm Premium birch plywood
FinishHigh resistant water-based black paint. black steel grill with acoustic fabric protection
Dimensions (H x W x D)596 x 377 x 375 mm
Weight17.5 kg (38.5 lbs)
The QB-12 is a two-way versatile, ultra-compact light weight, passive cabinet offering high-performance in a number of applications.

It features one 12” low/mid transducer with rear air ventilation and a 1” high frequency compression driver with high tech polymer diaphragm and ultra lightweight edgewound aluminium ribbon voice coil mounted on a 90º x 40º constant directivity rotatable aluminium horn delivering exceptional dispersion and low harmonic distortion.

With a wide range of rigging accessories the QB-12 can be used and easily mounted in a variety of applications. A top hat fitting is included as standard for pole mounting with a sub-bass cabinet. It is made from premium birch plywood and coated with high resistant water-based black paint. For low-frequency reinforcement we recommend the QB-12 be combined with the DBP-N15, DR-N18, SB-215, or the DRN218
The QB-12 features one 12” low/mid transducer with rear air ventilation and a 1” high frequency compression driver with high tech polymer diaphragm and ultra lightweight edgewound aluminium ribbon voice coil mounted on a 90º x 40º constant directivity rotatable aluminium horn delivering exceptional dispersion and low harmonic distortion.
