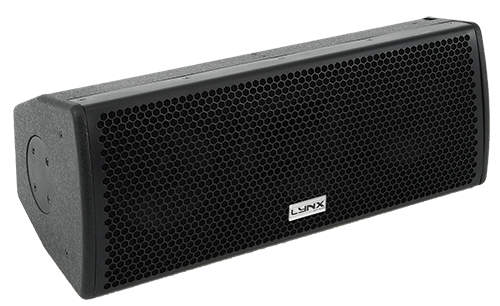

QB-D8



High performance, ultra-compact, full range, two way passive cabinet. It consists of two 8” hexacone transducers and a 1” high frequency neodymium compression driver. It offers a wide dispersion of 80º x 60º (rotatable) and 127 dB SPL (1000W program).

Applications

Club and Bar Installs
Theatres
Multi media spaces
Front-Fill
Sound reinforcement
Public Address
Conference



Specifications
Components LF 2 x 8″ transducer + 1″ HF driver
Frequency range 50 Hz – 20 KHz
Frequency Response 60 Hz – 18 KHz ± 3 dB
Sensitivity 100 dB (1W @ 1m)
Max. SPL 127 dB
RMS power  500 W
Program power 1000 W
Coverage angle 80º x 60º rotatable
Impedance 4 Ohm
Input Connectors 2 x Neutrik Speakon NL4MP
Material 15mm Premium birch plywood
Finish High resistant water-based black paint. black steel grill with acoustic fabric protection
Dimensions (H x W x D) 666 x 277 x 275 mm
Weight 17 kg (37 lbs)
The QB-D8 is a two-way versatile, ultra-compact light weight, passive cabinet offering high performance in a number of applications. The QB-D8 can be used horizontally and is ideal for installations with low ceilings.

It features two 8” low/mid hexacone transducers with rubber surround and a 1” central loaded high frequency compression driver with high tech polymer diaphragm mounted on a 80º x 60º constant directivity ABS horn delivering exceptional dispersion and low harmonic distortion. Hexacone is a composite material made from two layers of Kevlar sandwiching a honeycomb layer of nomex. This extremely light cone is also more rigid and resistant than conventional materials and delivers higher levels of SPL to other speakers. The combination of the hexacone with rubber surround ensures the QB-D8 is one of the most advanced cabinets on the market.

With a wide range of rigging accessories the QBD8 can be used and easily mounted in a variety of applications. A top hat fitting is included as standard for pole mounting with a sub-bass cabinet. It is made from premium birch plywood and coated with high resistant water-based black paint. For low-frequency reinforcement we recommend the QB-D8 be combined with DR-N12, DBP-N15, SB-215, DRN-18 or DRN-218.
The QB-D8 features two 8” low/mid hexacone transducers with rubber surround and a 1” central loaded high frequency compression driver with high tech polymer diaphragm mounted on a 80º x 60º constant directivity ABS horn delivering exceptional dispersion and low harmonic distortion. Hexacone is a composite material made from two layers of Kevlar sandwiching a honeycomb layer of nomex. This extremely light cone is also more rigid and resistant than conventional materials and delivers higher levels of SPL to other speakers. The combination of the hexacone with rubber surround ensures the QB-D8 is one of the most advanced cabinets on the market.
