WCX-8
Weather resistant coaxial cabinet
Compact & versatile, easy to use, easy to install speaker. 8” coaxial speaker offering a coverage of 70º conical dispersion and 126 dB SPL.
Description
The WCX-8 is a two-way coaxial speaker part of the WCX series. The WCX-8 is a compact, modular and powerful cabinet designed for outdoor applicatios. Line transformer optional.
This is a weather resistant speaker, designed to withstand harder weather conditions, where the cabinets are exposed to the elements.
The WCX-8 uses a 8” coaxial speaker (2.5” LF voice coil and 1.75” HF voice coil) offering a coverage of 70º conical dispersion and 126 dB SPL (600 W program).
Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport. It can also be powered from an external amplifier using the ARK optimised preset.
The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.
The WCX-8 has a stainless steel 1 mm grill also available in aluminum with protective layer and micro textured paint and a weatherstrip edging for extreme protection.
This enclosure has an acoustex filter, a hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions. Also, 35 ppi Acoustic foam to protect against dust particles, M8 stainless steel 316 L screws and a waterproof protected cone on both sides.
An aluminum back plate with pressure gland is included for an extra tight connection and easy installation.
Perfectly suited for:
| → PA system | |
| → Public address | |
| → Convention centers | |
| → Houses of worship | |
| → Background music | |
| → Commercial complex |
Technical Data
Components |
1 x 8″ coaxial speaker with LF 2.5″ and HF 1.75″ voice coil |
| Frequency Range | 70 Hz – 17 KHz (-10dB) |
Frequency Response |
100 Hz – 18 KHz (± 3dB) |
| Max SPL | 120 dB – 126 dB peak |
Sensitivity |
95 dB (1w @ 1m) |
| Coverage angle | 70º conical dispersion |
Power |
300 W AES (600 W program, 1200 peak) |
| Operating Mode | 8 Ω / Optional 100 V: 200 W / 100 W / 50 W selectable |
Nominal Impedance |
8 Ω |
| Connectors |
In: Euroblock terminal Out: Cable gland |
Material |
15 mm premium birch plywood |
| Finish | Polyurea coating |

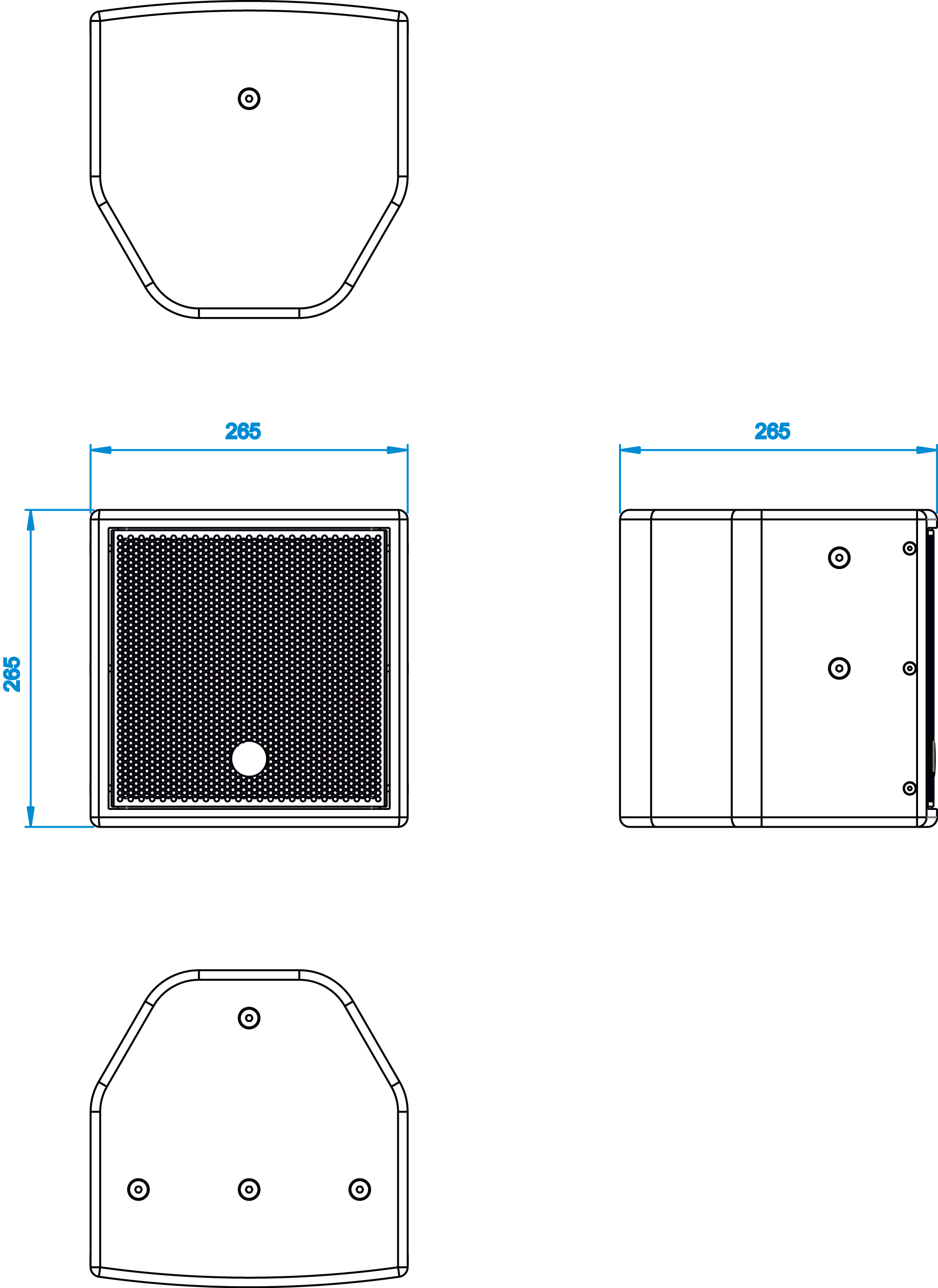

Dimensions |
265 x 265 x 265 mm (H x W x D) |
| Weight | 10 Kg (22 lbs) |
More features
Accessories for WCX-8
 |

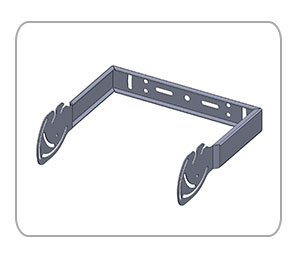

UBR-WCX8 Wall bracket for the WCX-8 |
Line Transformer Option
The WCX-8 is a weather-resistant loudspeaker. Compact & versatile, easy to use, easy to install speaker. 8” coaxial speaker offering a coverage of 70º conical dispersion and 120 dB SPL. 8 Ω or 100 V: 200W / 100 W / 50 W selectable

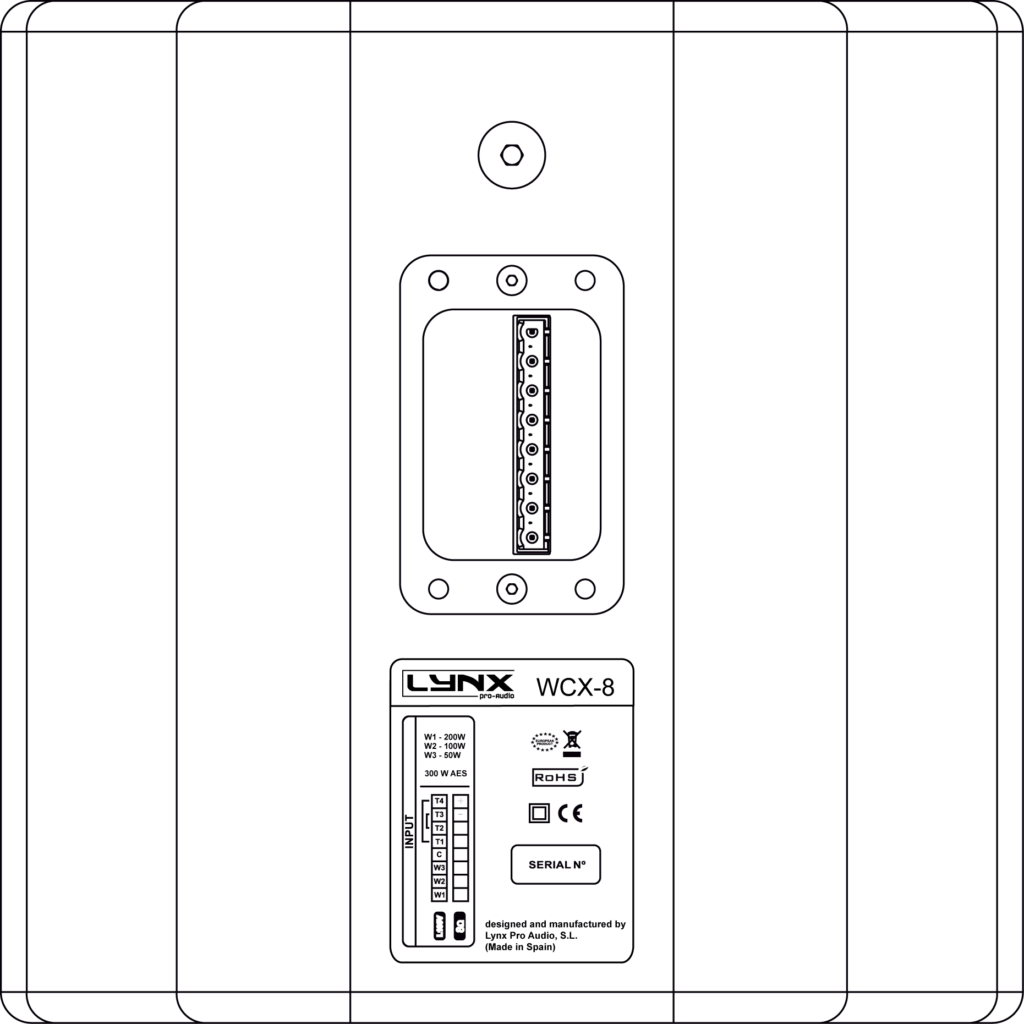

Back connection panel: euroblock terminal & cable gland.
