Rainbow 3D
Electroacoustical Prediction Software
OVERVIEW
Rainbow 3D is an electro-acoustical prediction software for loudspeaker systems, boasting comprehensive high-speed simulation in a three-dimensional environment. With a sophisticated design, Rainbow 3D stands out for its speed, being able to do a simulation in a few seconds.
Being a technology that has been developed in-house by our engineers, we are able to adapt to the needs of our clients, make improvements when necessary and develop new tools.
Designed from scratch
Complex-shaped surfaces
Unlimited sound sources
Elaborate projects
DSP process
Measure & tools
RAINBOW 3D FEATURES
Designed from scratch by professionals
Despite the existence of the previous Rainbow 2D, this new software has been coded from scratch by our engineers in order to achieve an ultra-fast simulation and to create a visually rich 3D environment. The simulation takes advantage of all cores in the computer using multi-threading techniques for optimised calculation speed.
The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space. New spherical measurements of the loudspeakers have been performed, with up to one degree of accuracy, in the recently built anechoic chamber.
It can also define endless listening zones and includes an unlimited number of sound sources, allowing simulation for all systems: subwoofers, arrays, columns and individual boxes. The software detects the latest loudspeaker and software updates and allows automatic updates to be installed.
Complex-shaped surfaces
The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side and top views. It can also define multiple listening zones and allows offset positioning and symmetry.

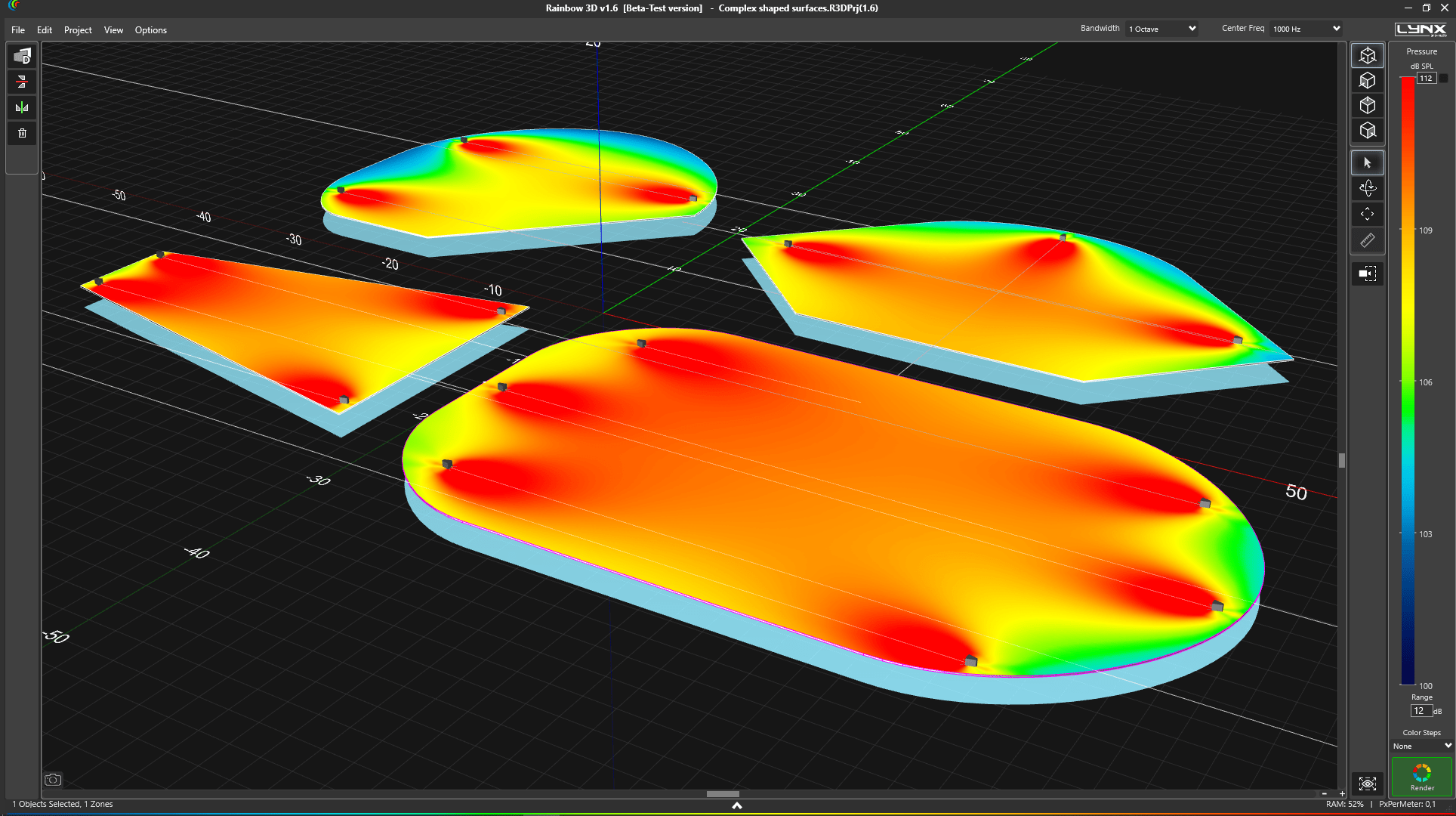

You can create complex-shaped surfaces as listening zones (venues): trapezoidal forms, semicircles, circles, rectangles and other asymmetrical forms. Each corner in a 4-vertex surface is independently definable as straight or round.
Blueprints, textures and ornaments
Blueprints can be loaded and used as a reference point or template on which reproduce the venue more closely to reality.
Furthermore, you can add textures and ornaments (decorative 3D objects) that you will find in the library to make the project more realistic and visually appealing.
Unlimited sound sources

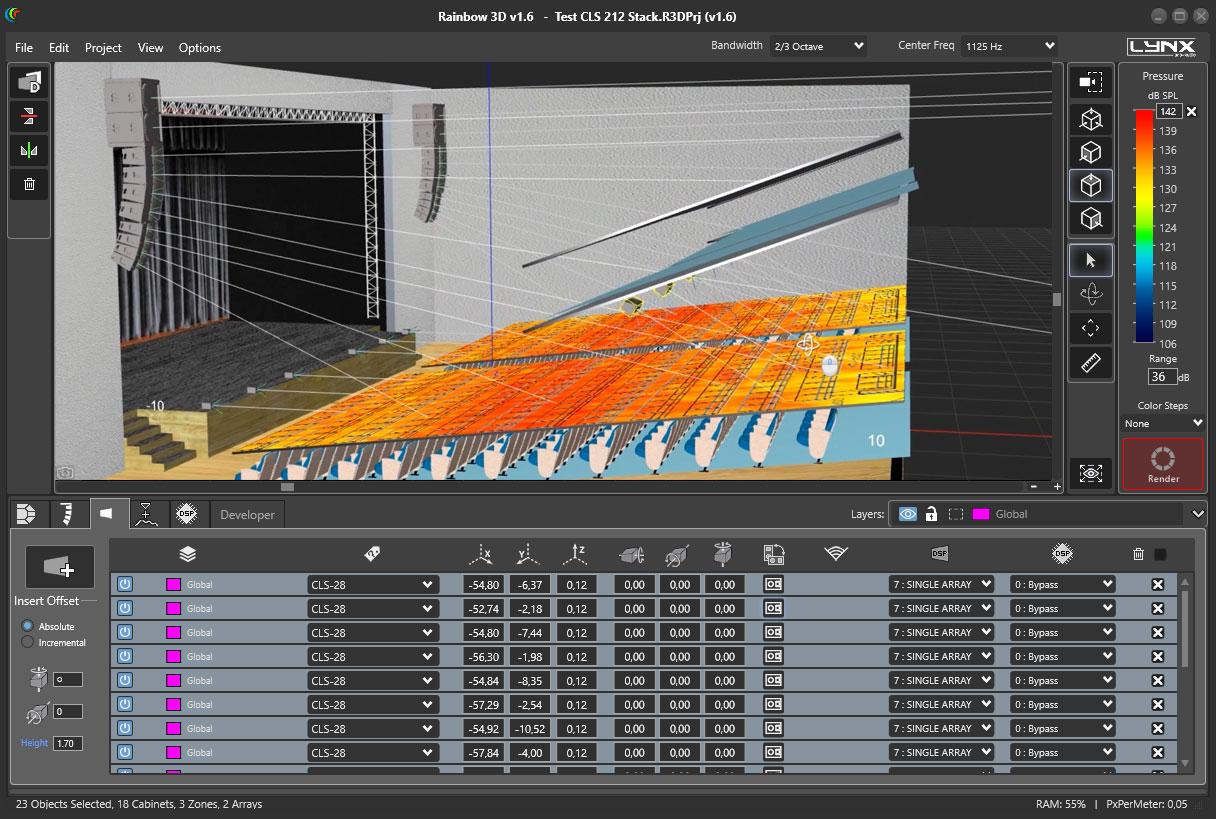

Allows the acoustic simulation for an unlimited number of sound sources and audio systems.
You can place as many systems (subwoofers, line arrays, columns and individual cabinets) as you desire or you can create your own group of customized sound systems.
Line arrays can be placed in stack or flown configuration. Also, you can create clusters from any individual cabinet available in the library.
Create your own Sound Systems

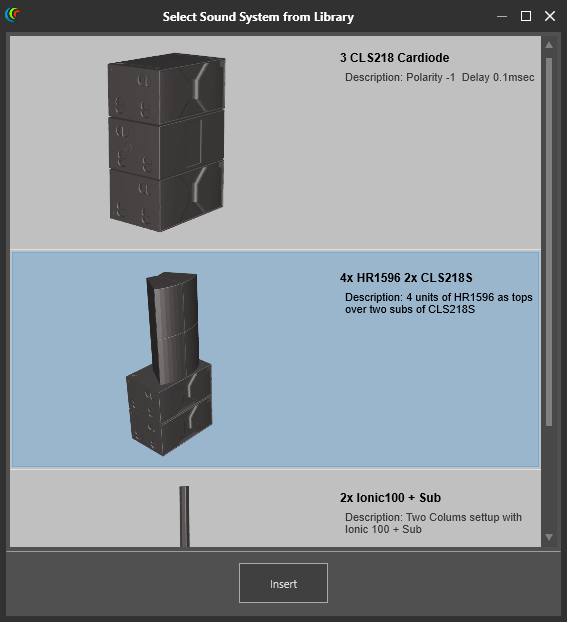

You can select different models of cabinets from the library, create a group with the desired configuration and save them as a sound system. In this way, you can create a group of customized sound systems with your own configurations and reuse them in other projects, saving time.
To make this possible, you will need to create a “.system” file. This can be integrated upon other projects with the “Load sound system from file” option or you can import it directly into the library to get access whenever you need it with the “Insert sound system” option.
When you create a Sound System, you can add a name, a description and you have the chance to upload a picture.
Cluster of cabinets
You can create a cluster of cabinets, selecting the desired model of cabinet from the library.
When you create a cluster you can change the separation (meters) and the angle of the loudspeakers inside the cluster. Linear and angular distribution are available.
If at any point you need to change an specific value of a cabinet inside the cluster, you have the “Explode” tool to transform the cluster into single cabinets.
Example of a linear cluster
Example of an angular cluster
Create projects with unlimited zones
You can create customized designs using multiple edition and productivity tools:
- Create surfaces
- Duplicate
- Apply symmetry on X and Y
- Show/hide surfaces
- Change dimensions
- Change position
- Change rotation
- Take screenshots
Project design samples you can create:
Stadium
Click on the image to open it in a new window.

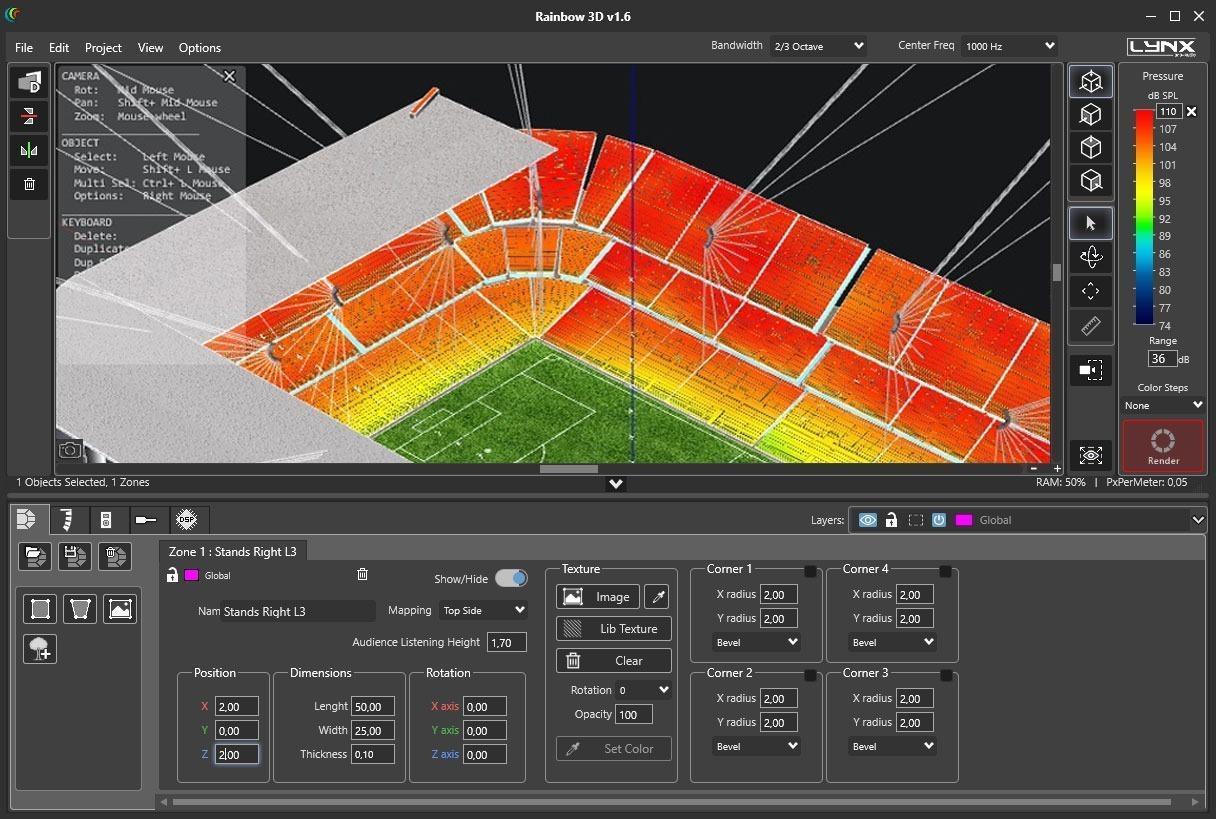

Stadium design with multiple line array sound predictions for all steps.
In this design, multiple shapes were created, moving and duplicating them to make the design faster. We loaded grass textures for the soccer field and images to represent the soccer lines and stadium steps.
Theatre
Click on the image to open it in a new window.

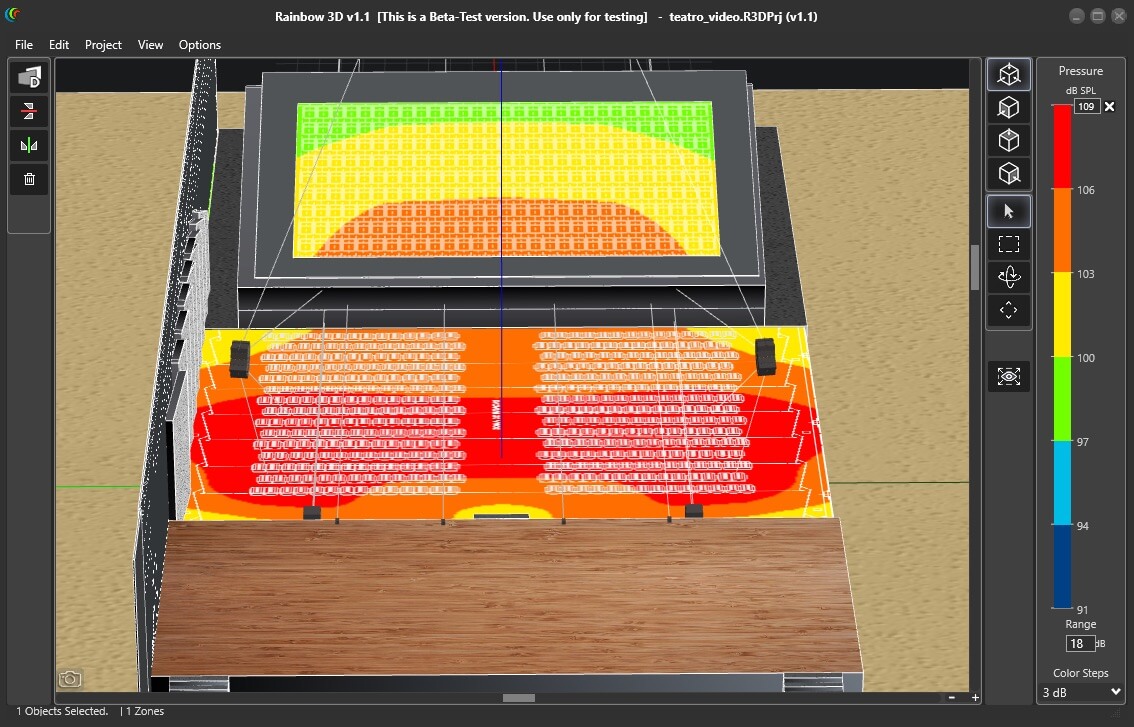

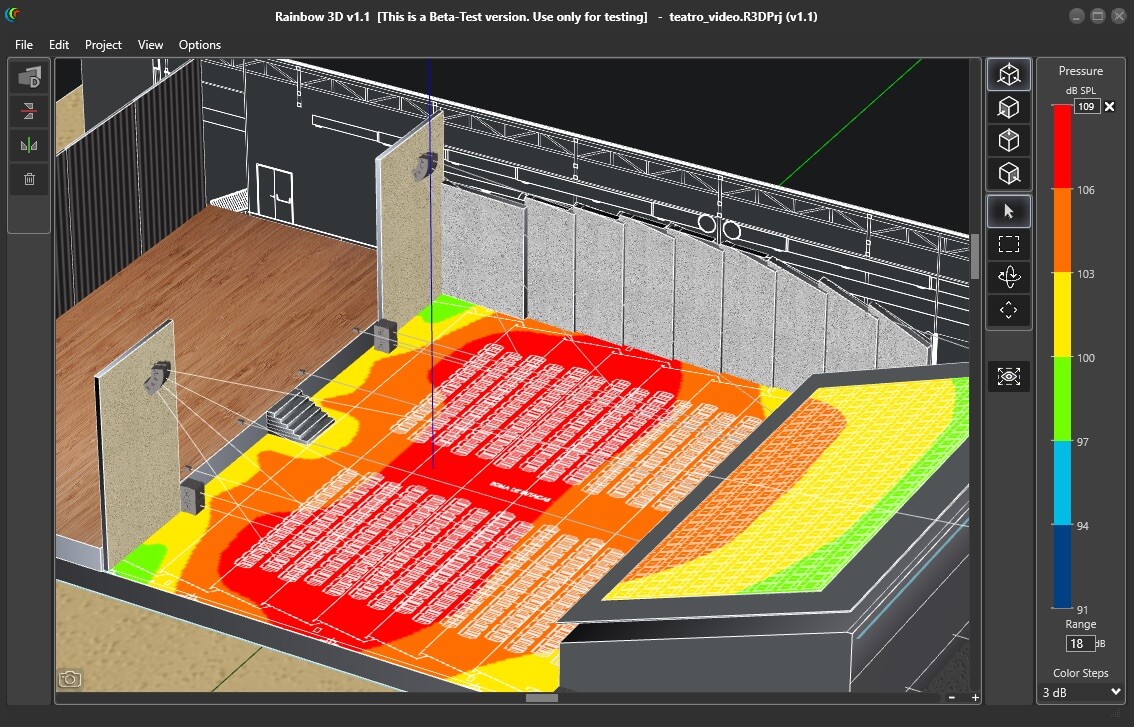

Theatre venue design with acoustical prediction.
We created the theatre’s audience with a PNG drawing and the balcony in an elevated position to make it as realistic as possible. We also used textures for walls and theatre stage.
Stage
Click on the image to open it in a new window.

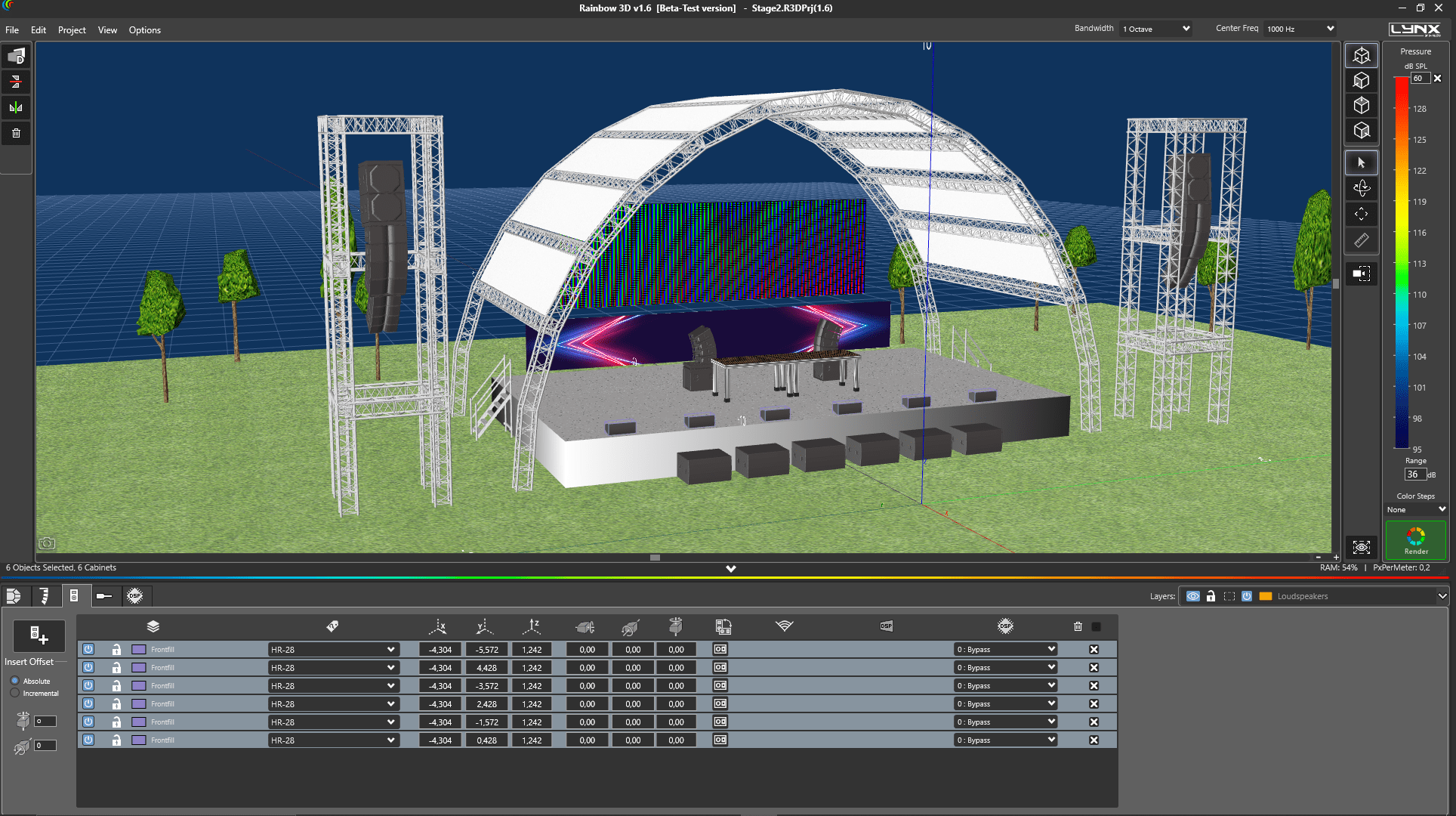

This project represents a stage with multiple sound systems.
We created the DJ’s table and put the DJ’s sound systems, monitor stage cabinets, subwoofers and line arays on both sides of the stage. It can be done easily using symmetry and duplicate button.
Organisation by layers
To work in a more organized way you can create multiple layers, with different names and colors to distinguish them. All elements within a layer can be selected and/or moved among them. You can also lock a layer, delete it or disable the speakers for simulation.
DSP process over sound sources
Adding DSP process to sound sources to make corrections and optimize sound, using EQ filters, delay, gain and polarity inversion.
In the near future, direct communication with Lynx Pro Audio’s cabinets will be available.
Multiple measures and tools
Likewise, the R&D department is developing multiple measurements and analysis tools for the calculated data. For example, adding virtual microphones that show the frequency response in the points of location indicated.

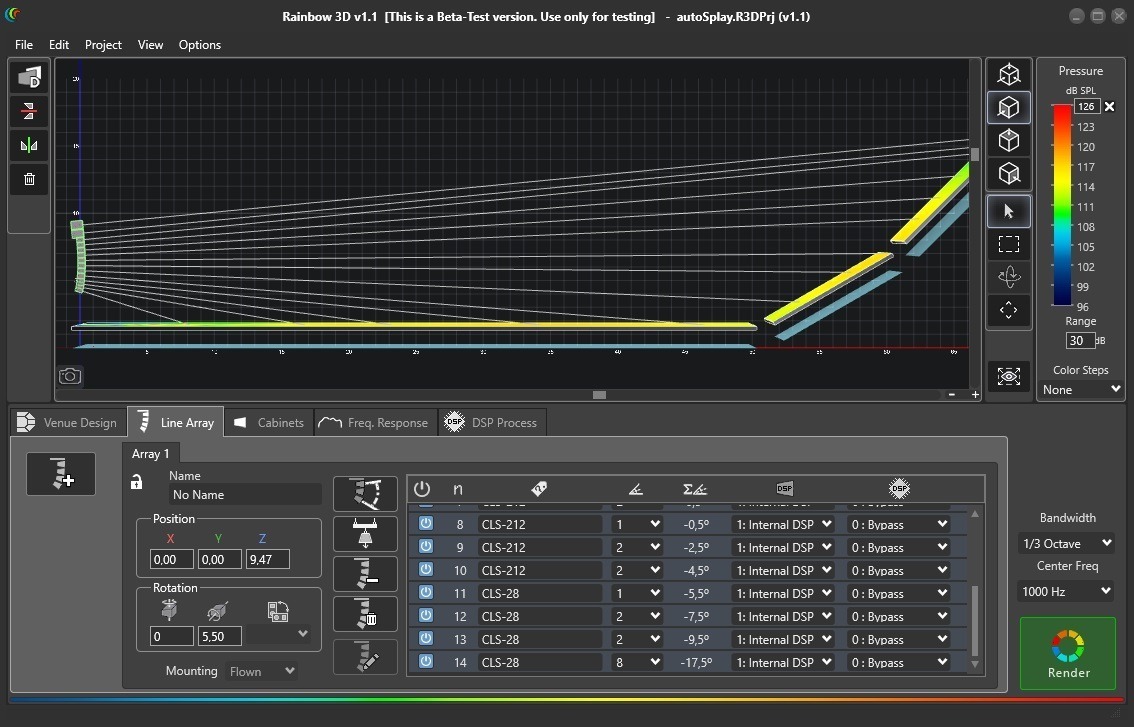

Among other tools you will find a wizard to set up different line array arragements, a tool for line array autosplay and a ruler to take measurements (meters) in the 3D scene.

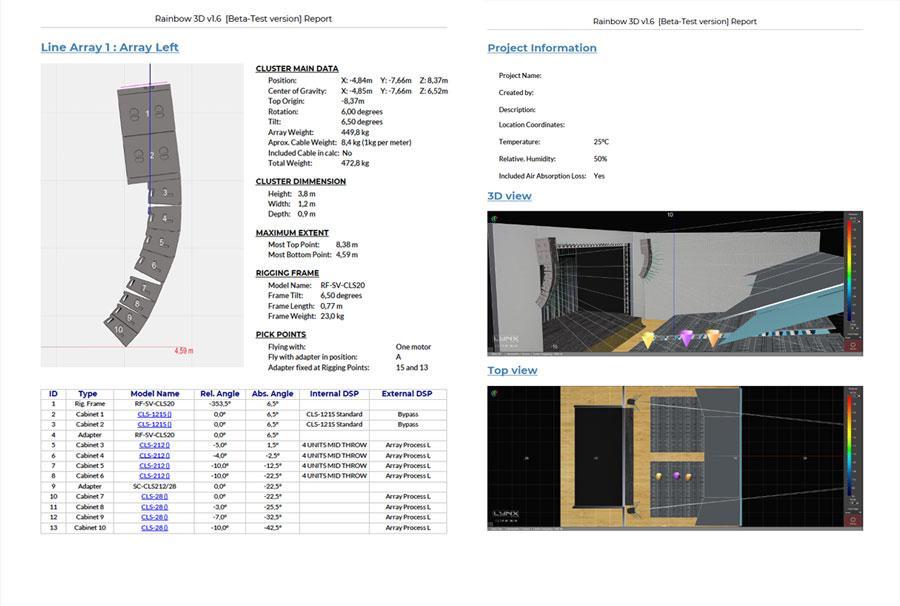

A PDF report can be generated with extensive information that includes 3D views of the project as well as a list of surfaces and loudspeakers with set-up data and EQ.
The pictures below show some examples: from left to right, you can see the PDF report, the frequency response on selected points and the line array autosplay tool.
SYSTEM REQUIREMENTS
These are the minimum requirements needed to run Rainbow 3D software on your computer.
Supported Operating System
Windows 10 64-bit or newest version
Processor & RAM
64-bit core clocked at 2GHz or better
RAM: 8GB or higher
Graphics & Display resolution
For 3D graphics: Direct3D 11.1 or better
Display resolution: 1440 x 900 or higher
Hard Disk
Hard Disk: 2GB free disk space is required for a full installation with all libraries
How to use Rainbow 3D
– Tutorial –
Learn to make a correct use of this Acoustical Prediction Software with our free video tutorials
Tutorial 1 – Camera views and selection tools
Tutorial 2 – Add complex surfaces, textures, pictures and ornaments
Tutorial 3 – Duplicate and symmetry
Tutorial 4 – Add line array and DSP process
Tutorial 5 – Add single cabinets
Tutorial 6 – Layers
Rainbow 3D
Electroacoustical Prediction Software
Rainbow 3D, a new electroacoustic simulation software in a 3D and visual rich dynamic environment.
Please register to download Rainbow 3D software for free.
We will send you the installation file once you have confirmed your email address.
If you have any inquiry…
If you have any inquiry, please send an email to info@lynxproaudio.com or get in contact through our social media accounts. You can find us on Facebook, Twitter and Instagram.
