HR-108 (64 / 96 / 124)

Pure install speaker

High performance, ultra-compact, two way passive cabinet.

Different models available depending on the coverage angle: 60º x 40º / 90º x 60º / 120º x 40º.

Description

Passive ultra compact, lightweight and very versatile enclosure especially designed for all types of installation projects.It consists of a 8” transducer with Neodimium magnet and a 1” high frequency compression driver. It offers 125 dB SPL (400 W program). Different models available depending on the coverage angle: HR-108/64, HR-108/96 and HR-108/124.

It is an excellent solution for all types of fixed installations and has a complete range of accessories to provide an easier installationAlthough this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.

For Low Frequency reinforcement, several subwoofer options are available.

N

Perfectly suited for:

→  Club & Bar installations
→  Sound reinforcement
→  Theatres
→  Houses of worship
→  Multi media spaces
→  Public address

Technical Data

Components
LF: 1 x 8″ Neodimium – 2″ alu voice coil carbon fiber cone
HF: 1″ Exit compression Driver , 1.75″ aluminium voice coil, High temperature polymer
Frequency Range60 Hz – 20 KHz (-10dB)
Frequency Response
78 Hz – 20 KHz (± 3dB)
Sensitivity90 dB (1W@1m)
Max SPL
122 dB – 128 dB Peak
Coverage Angle

60º x 40º / 90º x 60º / 120º x 40º rotatable

Power
200 W (400 W program, 800 W peak)
CrossoverPassive
Nominal Impedance
Ω
Connectors2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins
Finish
Polyurea coating
Material15 mm premium birch plywood

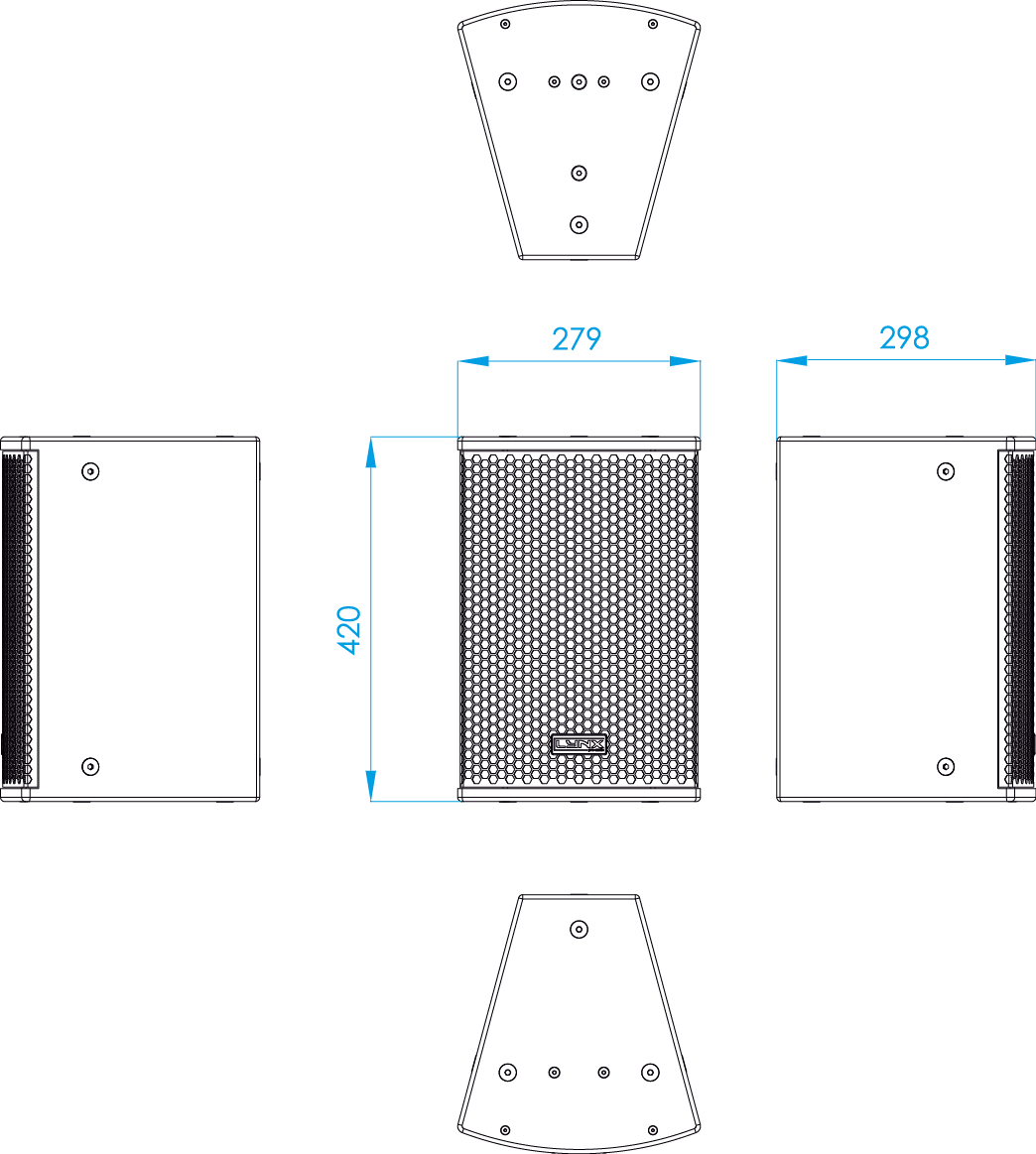

Dimensions
420 x 279 x 298 mm (H x W x D)
Weight10 Kg ( 22 lbs)

More features

Accessories for HR-108
UBR-HR8
U bracket for HR-108

WB-20/2

Wall bracket for HR-108

AGR-6

M6 eye bolt for HR-108

Konig & meyer 195/8 mouting adapter compatibilityNOTE: This cabinet is compatible with Konig & Meyer 195/8 mounting adapter for speaker stands with 35 mm tube diameter. This accessory is not provided by Lynx Pro Audio.

Weather-resistant version

Weather-resistant version

Our Weather-resistant version speakers are designed to withstand harder weather conditions, where the cabinets are exposed to the elements.

Colours:

  • Black polyurea coating with microtextured metal parts.
  • RAL available on request. Polyurea coating with aliphatic colour paint.

1. Anodized aluminium logo for durability outdoors.

2. Stainless steel 1 mm 316 L grill. Also available in aluminum with protective layer and micro textured paint.

3. Weatherstrip edging for extreme protection.

4. Acoustex filter: hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions.

5. 35 ppi Acoustic foam to protect against dust particles.

6. Waterproof protected cone on both sides

7. Aluminum back plate with pressure gland for an extra tight connection and easy installation.

8. M10 stainless steel 316 L screws (A4).

Description

The HR-108 Custom Outdoor is a passive ultra compact, lightweight and very versatile enclosure especially designed for outdoor applications. It consists of a 8” weather proof cone with treatment on both sides of the cone and a 1” high frequency compression driver. It offers 125 dB SPL (600 W program). 90º x 60º / 60º x 40º / 120º x 40º rotatable cabinet. Line transformer optional.

This is a weather resistant speaker, designed to withstand harder weather conditions, where the cabinets are exposed to the elements.

⬇Download datasheet
