QB-5
Background sound
Ultra-compact, full range, two way passive cabinet for background sound reinforcement.
It consists of a 5” transducer and a 1” high frequency neodymium tweeter. It off ers 90ºconic dispersion and 110 dB SPL (160W program).
Description
The QB-5 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance for background sound applications.
It features a 5” low/mid transducer with rubber surround and a 1” neodymium tweeter with micro foil diaphragm.
It is made from 9 mm premium birch plywood and coated with water based paint.
Perfectly suited for:
| → Club & Bar installations | |
| → Live Sound | |
| → Theatres | |
| → Houses of worship | |
| → Broadcast | |
| → Multi media spaces | |
| → Public address |
Technical Data
Components | LF: 1 x 5″ transducer / HF 1 x 1″ tweeter |
| Frequency Range | 65 Hz – 20 KHz (-10dB) |
Frequency Response | 75 Hz – 18 KHz (± 3dB) |
| Max SPL | 107 dB – 113 dB peak |
Sensitivity | 88 dB (1w @ 1m) |
| Coverage angle | 90º H x 90º V conic |
RMS power | 80 W |
| Program Power | 160 W |
| Crossover | 4700 Hz |
Impedance | 16 Ω |
| Input Connectors | 4 x Terminal Block 7.62 mm between pins |
Material | 9 mm premium birch plywood |
| Finish | Water based paint |
Dimensions | 254 x 167 x 186 mm (H x W x D) |
| Weight | 3 Kg (6.6 lbs) |
More features
Hardware for QB-5
Accessories for QB-5
 | WB-10/2 Wall bracket for QB-5 |

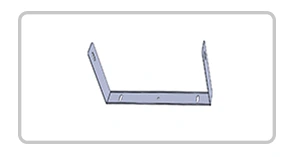

 | UBR-QB5 U bracket for the QB-5 |
Outdoor Option
Description
The QB-5 is also available as an outdoor version. The cabinets receive the following treatment so that they can be installed in outside locations:
-Birch boxes
-Polyurea coating
-Micro perforated aluminum grill with special polyester protect from water.
-Connection system with 2.5 meters of Oxygen-free cable 2 x 1.5mm with cable gland.
