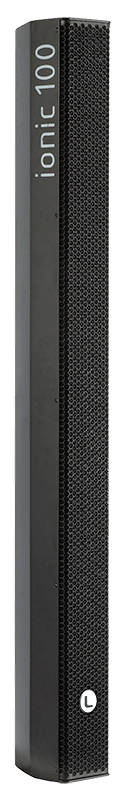

Ionic 100

Smart & slim column speaker

Ultra-compact, passive column speaker with 12 x 3″ (0.75″ voice coil) neodymium transducers.

15º +/ -5º vertical coverage. 121dB SPL.

Description

The Ionic-100 is a passive column speaker part of the ionic series. The ionic columns are compact, modular and powerful and the complete series includes two columns & two subwoofers. The Ionic-100 uses 12 x 3″ (0.75″ voice coil) neodymium transducers offering a coverage of 15º +/-5º V x 100º H and 121dB SPL.

Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.

The Ionic-100 is powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications.

N

Perfectly suited for:

→  PA system
→  Clubs & Theatres
→  Houses of Worship
→  Solo artists, band, DJ
→  Public buildings
→  Commercial complex

Technical Data

Components
12 x 3″ speaker with 0.75″ voice coil
Frequency Range 150 Hz – 20 KHz (-10dB)
Frequency Response
180 Hz – 18 KHz (± 3dB)
Sensitivity 96 dB (1W@1m)
Max SPL
121 dB – 127 dB Peak
Coverage 15º ± 5º V x 100º H
Power
300 W (600 W program, 1200 W peak)
Nominal Impedance 8 Ω
Connectors
2 x Neutrik Speakon NL4MP
Finish Epoxy paint / bespoke pattern
Material
1.5 mm stainless steel

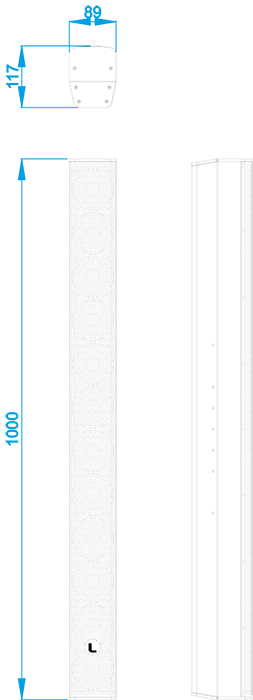

Dimensions 1000 x 89 x 117 mm (H x W x D)
Weight
13 Kg (29 lbs)

More features

Hardware for Ionic 100



Enclousure ionic-50
Enclosure

The column enclosure is constructed from 1.5mm stainless steel plate and finished with high resistant epoxy paint.

Internal design ionic-50
Internal design

The steel structure of the column is welded and perfectly sealed with a polymer coating forming an air-tight housing. All parts are assembled on metal inserts with metric screws.

Rear panel ionic-50
Rear panel

A compact rear panel contains the input and link connectors.

Grill ionic-50
Grill

The ionic-50 has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Rigging ionic-50
Rigging

Integrated reinforcement plates are located inside the column so different installation accessories can be mounted using the external installation kit fixing points.

Transport-ionic-100
Transport

A durable flight case is available to transport two ionic-100 including cables and hardware.

Ral colours & water-vinyl customization

 Available in RAL colours by request.

In addition, more customization options for the Ionic 100 and Ionic 50 cabinets are available. These are some patterns and designs in water-vinyl:


Accessories for Ionic 100
SV-22
SV-22
Piece to connect 2 columns together – Straight
SV-23
SV-23
Piece to connect columns to wall or truss
SV-POLE
SV-POLE
35mm inclinable Pole adaptor
SV-I2S
SV-I2S
Sub adaptor for satellite, combine columns with sub
SV-2I
SV-2I
Column cabinets connection – inclinable
WB-I20/2
Wall bracket for column installation – inclinable
FC-LXF6
FC-IONIC
Flight case for 2 ionic-100 plus accessories
100V Line Transformer:

The Ionic-LT is the ideal accessory to transform Ionics series to 100 V line. Using the same enclosure shape, finished in stainless steel, it’s a discreet and easy-to-use accessory.

Usable with Ionic-50 and Ionic-100.

Outdoor version

Description

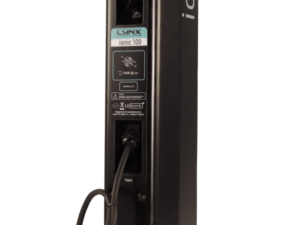

The Ionic-100OD is also available as an outdoor version. The cabinets receive the following treatment so that they can be installed in outside locations:

-Micro perforated aluminium grill with special polyester protection against water.

-Tropicalized speaker treatment with special latex covering.

-Double cabinet sealing

Other products from this series

6 x 3” transducers, 118 dB SPL

Outdoor version available

1 x 5” transducers, 120 dB SPL

Outdoor version available

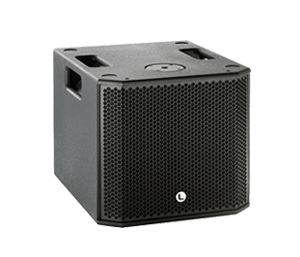

1 x 12” transducer, 127 dB SPL

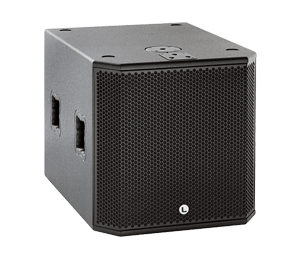

1 x 18” transducer, 132 dB SPL
