Ionic 18S

Omnidirectional subwoofer

Ultra-compact, self powered (class D switch mode power supply with PFC), omni-directional subwoofer cabinet.

Description

The Ionic-18S is a powered subwoofer enclosure part of the ionic series. The ionic cabinets are compact, modular and powerful and the complete series includes two sub units and two column models.

The Ionic-18S uses 1 x 18” (3” voice coil) neodymium transducers offering an ultra compact subwoofer enclosure with 132dB SPL. The power module (Class D with switching power supply) includes a Digital Signal Processor which offers different presets to cover a wide range of sound applications complementing the column speakers.

Ionic-18S provides quick and easy set ups for both fixed installations and portable applications.

N

Perfectly suited for:

→  PA system
→  Clubs & Theatres
→  Houses of Worship
→  Solo artists, band, DJ
→  Public buildings
→  Commercial complex



Technical Data



Components
1 x 18″ speaker with 3″ voice coil
Frequency Range38 Hz – 250 Hz (-10dB)
Frequency Response
42 Hz – 250 Hz (± 3dB)
Max SPL132 dB
Coverage Angle
Omnidirectional
Power2400W Class D with switching power supply & PFC
LF Amplifier
1 x 1400 W
Speaker Output Amplifier2 x 600 W @ 4 Ω
Processing
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
ControlUser control interface with 2.8″ IPS screen
Control Connections
Ethernet (OCS) / USB (DSP programming)
Input
Analog / AES3 (optional)
AC Power85 – 270V. 50/60 Hz with PFC
AC Connections
16A Neutrik powerCon TRUE1 TOP with looping output
FinishPolyurea coating
Material
15 mm premium birch plywood
Dimensions513 x 505 x 704 mm (H x W x D)
Weight
37 kg (81.5 lbs)

 DSP configuration

DSP module configuration panel

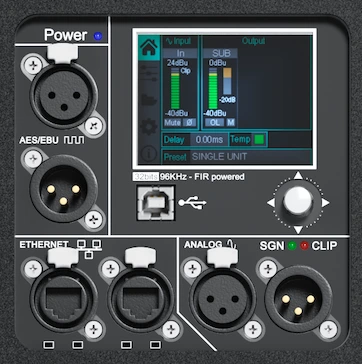

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

Configuration panel:

HOME

On the main screen you can see the cabinet’s input and output:

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.



Watch the following TUTORIAL to understand how it works:

DSP module configuration panel

On the back panel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output.

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER:

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION:

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION:

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

More features

Hardware for Ionic-18S
Enclousure-ADP
Enclosure

The IONIC-18S cabinet is constructed from 13-ply premium birch plywood (15mm thickness) and finished with polyurea coating

Enclousure-f6
Internal design

The internal structure of the IONIC-18S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers.

Rear panel

The powder coated steel rear panel contains all connections and houses the IONIC-18S amplification modules and DSP, is easily accessible and housed separately from the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Grill_ionic-18S
Grill

The ionic-18S has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handle HR-18-6
Handles

One ergonomic, die cast handle with firm internal grips is located on each side of the IONIC-18S enclosure to facilitate transport, positioning and loading of the cabinets.

Accessories for Ionic-18S
SV-I2SSV-I2S
Sub adaptor for satellite
GR-18WkitGR-18WKIT
Wheel kit
FD-4LXV8
FD-IONIC18S
Nylon Protection Cover for ionic-18S
VSM-V2VSM-V2
M20 connector plate for M20 pole support TU-C02
TU-C02TU-C02
M20 pole support for combination between sub and satellite cabinets

Other products from this series

8 x 4” transducers, 132 dB SPL

4 x 4” transducers, 126 dB SPL

12 x 3” transducers, 121 dB SPL

6 x 3” transducers, 119 dB SPL

1 x 5” transducers, 120 dB SPL

1 x 12” transducer, 127 dB SPL
