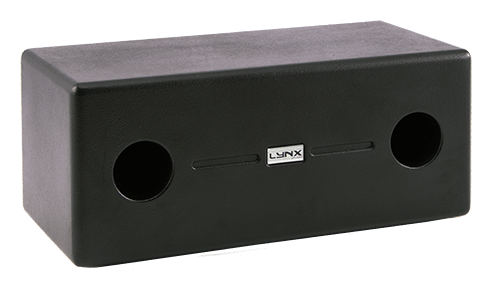

SUB-08

Background sound

Ultra-compact double band pass, passive sub woofer with one 8” transducer with double independent coil and rubber suspension. 117 dB SPL (400W).

Description



The SUB-08 is an ultra compact double band pass subwoofer delivering highperformance for background sound applications. It uses one 8” transducer with rubber surround and double independent coil.

The SUB-08 has been designed to be used with the QB-5 to extend the low frequency support.

N

Perfectly suited for:

→  Clubs & Bar installations
→  Houses of Worship
→  Theatres
→  Broadcast
→  Multi media spaces
→  Restaurants

Technical Data



Components
LF: 1 x 8″ transducer (2 x 50mm voice coil)
Frequency Range 43 Hz – 160 Hz (-10dB)
Frequency Response
47 Hz – 154 Hz (± 3dB)
Sensitivity 93 dB (1W @ 1m)
Max. SPL
116 dB – 122 dB peak
RMS Power 200 W
Program Power
400 W
Coverage Angle 360º single unit
Impedance
2 x 8 Ω
Input Connectors 2 x Neutrik Speakon NL4MP
Material
15 mm Premium birch plywood
Finish Polyurea coating
Dimensions
268 x 641 x 304 mm (H x W x D)
Weight 9 Kg (20 lbs)

More features

Components
The SUB-08 uses one 8” transducer with rubber surround and double independent coil.
