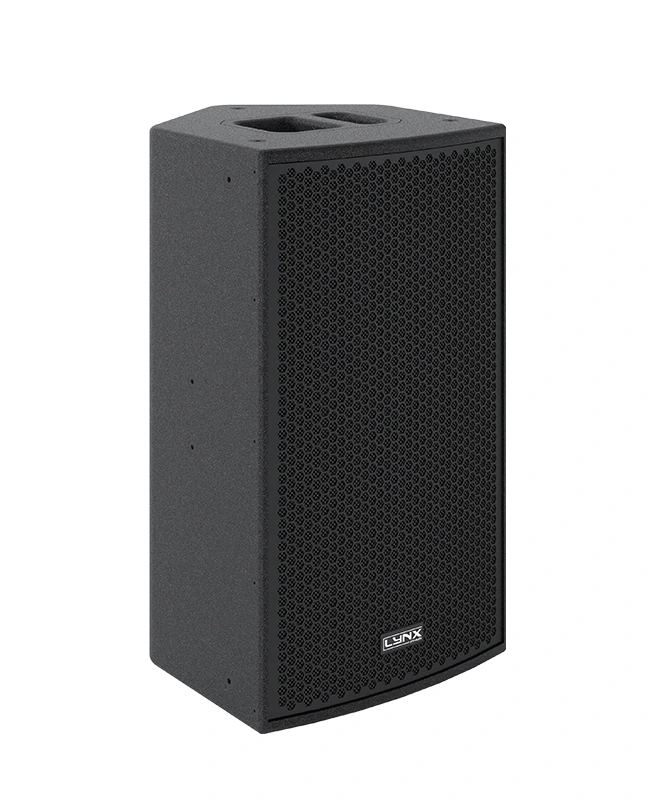

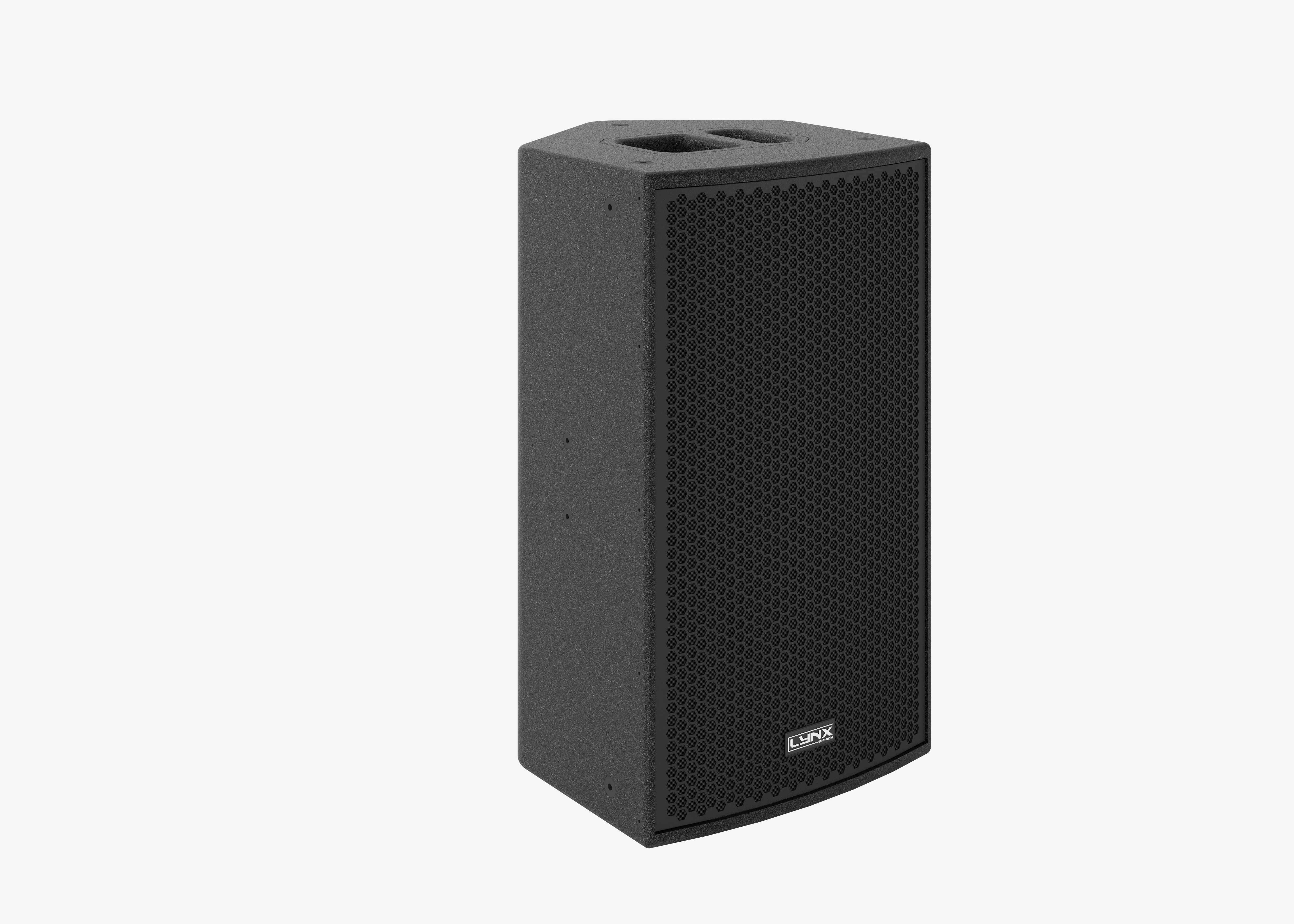

LAIA-12

Multipurpose speaker

High Output, self powered (class D switch mode power supply), multi purpose, point source cabinet. It consists of a 12” (3” voice coil) transducer with 1” exit throat driver delivering 90ºH x 60ºV precise coverage. DSP (FIR technology) controlled with 1200W amplification, 132 dB peak.

Description

The LAIA-12 enclosure is a medium format, multi purpose, point source cabinet that offers an ideal solution for a wide variety of indoor and outdoor applications, both in fixed installations and/or touring. Thanks to the cabinet’s design, it can be used as a stage monitor. LAIA-12 is a self-powered 2-way system with a total of 1200W in class D, universal switching power supply.

Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing, such as FIR filters, which offer linear frequency and phase response. The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative point source on the market, resulting in superior sound quality. Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need for external processors.



Key features

• Class D Powered (bi-amplified)

• Integrated Digital Processing

• Internal temperature control

• Electronic protection

• FIR linear phase filtering

• Online monitoring available

• Two way active system

N

Perfectly suited for:

→ Outdoor events

→ Theatres & auditoriums

→ Frontfill/sidefill reinforcement

→ Auditoriums

→ Indoor live PA

→ Houses of worship

→ Stage monitor

Technical Data

Components	LF: 12”, 3” voice coil, waterproof treatment for both sides
	HF: 1 x 1” exit throat 1.75” voice coil
Frequency Range	65 Hz – 20 KHz (-10 dB)
Frequency response	75 Hz – 18 KHz (± 3dB)
Max SPL	126 dB / 132 dB Peak*
Coverage	90º H x 60 º V
Power	1200 W Class D (2400 W peak) with switching power supply LF amplifier: 1 x 800 W, 1600 W peak HF amplifier: 1 x 400 W, 800 W peak
DSP Processing	96 KHz / 64 bit double-precision
Control	User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections	USB (DSP programming) / Dual Ethernet port
Input	Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power	90 – 264V. 50/60 Hz
AC connections	16A Neutrik powerCon true1 TOP with looping output
Finish	Polyurea coating, high grade resistant paint
Material	15 mm premium birch plywood
Dimensions	645 x 370 x 379mm (H x W x D)
Weight	25 Kg (55.12 lbs)

* Calculated maximum SPL based on rated peak power and measured sensitivity

DSP configuration

DSP module configuration panel

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

Configuration panel:

	HOME On the main screen you can see the cabinet’s input and output: • Input: You can see a vumeter with the input level and a clip signal. • Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.
	SETTINGS This panel allows you to change the gain, polarity, mute and the delay for the inputs. You also have the possibility of putting a high pass, changing the type of filter, frequency and order.
	FOLDER The folder screen shows you the name of the preset and its description. Using the joystick you can change the preset.
	CONFIGURATION This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver. And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.
	INFORMATION The last screen shows you some general information regarding the cabinet’s components. Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

DSP module configuration panel

On the back panel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output.

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER:

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION:

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION:

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

More features

Hardware for LAIA-12

	Enclosure The LAIA-12 cabinet is constructed from 15-ply premium birch plywood and finished with premium birch plywood.
	Internal design The internal structure of the LAIA-12 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

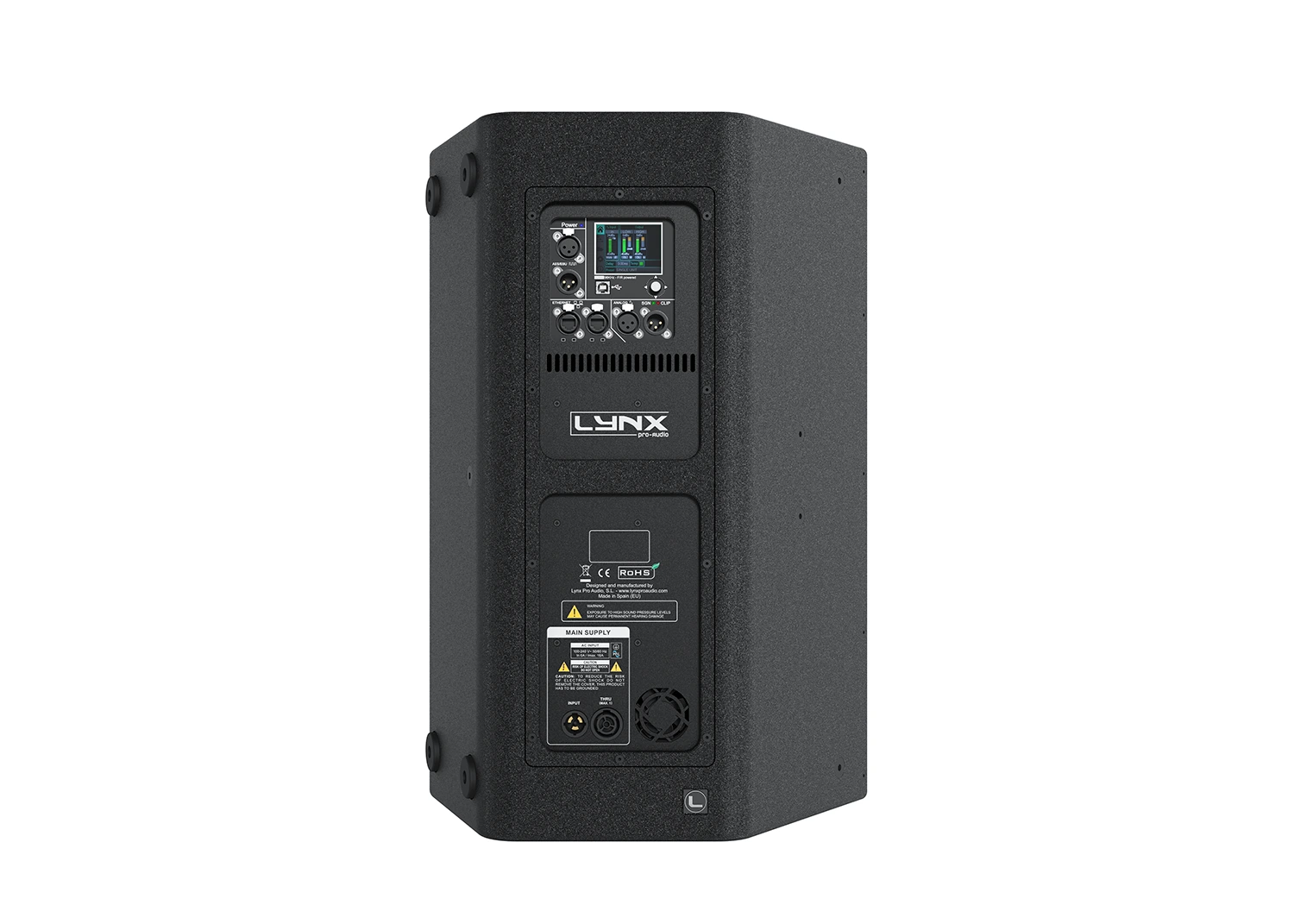

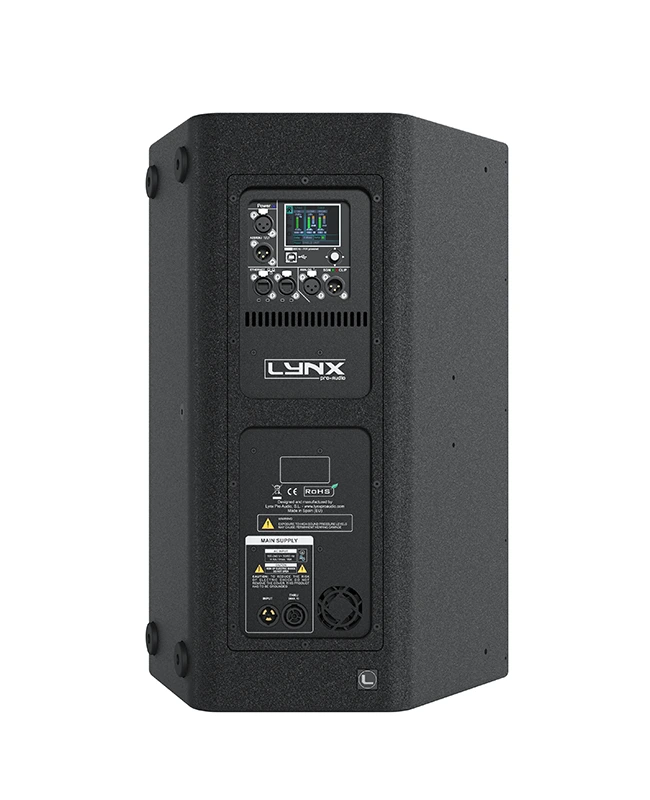

	Rear panel The powder coated steel rear panel contains all connections and houses the LAIA-12 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency.
	Grill The LAIA-12 has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.
	Handles Handles are integrated in to the side plates of the LAIA-12 to facilitate transport, positioning and loading of the cabinets.
	Rigging Three fixing points are integrated on the top of the enclosure to facilitate its installation.
	Transport A durable flight case is available to transport two LAIA-12.
