LAIA-210

DSP integrated coaxial line array

High Output, self powered (class D switch mode power supply with PFC), line array element. It consists of a 2 x 10” (2” voice coil) transducer with 1.4” exit throat driver with waveguide system delivering 100ºH x 10ºV precise coverage. DSP (FIR technology) controlled with 2000W amplification, 138 dB peak.

Description

The LAIA-210 enclosure is a medium format Line Array module that offers an ideal solution for a wide variety of indoor and outdoor applications where a compact, practical and reliable Line Array system is required. LAIA-210 is a self-powered 2-way system with a total of 2000W in class D, universal switching power supply and a PFC system for better optimization of input voltage and current and lower consumption. Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing, such as FIR filters, which offer linear frequency and phase response.

The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative line arrays on the market, resulting in superior sound quality. Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need for external processors.



Key features

• Class D Powered (bi-amplified)

• Integrated Digital Processing

• Internal temperature control

• Electronic protection

• FIR linear phase filtering

• Online monitoring available

• Two way active system

N

Perfectly suited for:

→ Outdoor events

→ Theatres

→ Large stadiums / arenas

→ Auditoriums

→ Indoor live PA

→ Houses of worship

Technical Data

Components	LF: 2 x 10”, 2” voice coil, Tetracoil ultra linear motor
	HF: 1 x 1.4” exit throat, (3” voice coil) with titanium diaphragm
Frequency Range	55 Hz – 20 KHz (-10 dB)
Frequency response	65 Hz – 18 KHz (± 3dB)
Max SPL	132dB / 138dB Peak*
Coverage	100º H x 10 º V
Power	2000 W (4000 W peak) Class D with switching power supply & PFC LF amplifier: 1 x 1600 W RMS, 1600 W peak HF amplifier: 1 x 400 W RMS, 800 W peak
DSP Processing	96 KHz / 64 bit double-precision
Control	User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections	USB (DSP programming) / Dual Ethernet port
Input	Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power	90 – 264V. 50/60 Hz with PFC
AC connections	16A Neutrik powerCon true1 TOP with looping output
Finish	Polyurea coating, high grade resistant paint
Material	15 mm premium birch plywood
Dimensions	303 x 749 x 473 mm (H x W x D) without pins
Weight	30 Kg (66.13 lbs)

* Calculated maximum SPL based on rated peak power and measured sensitivity

DSP configuration

DSP module configuration panel

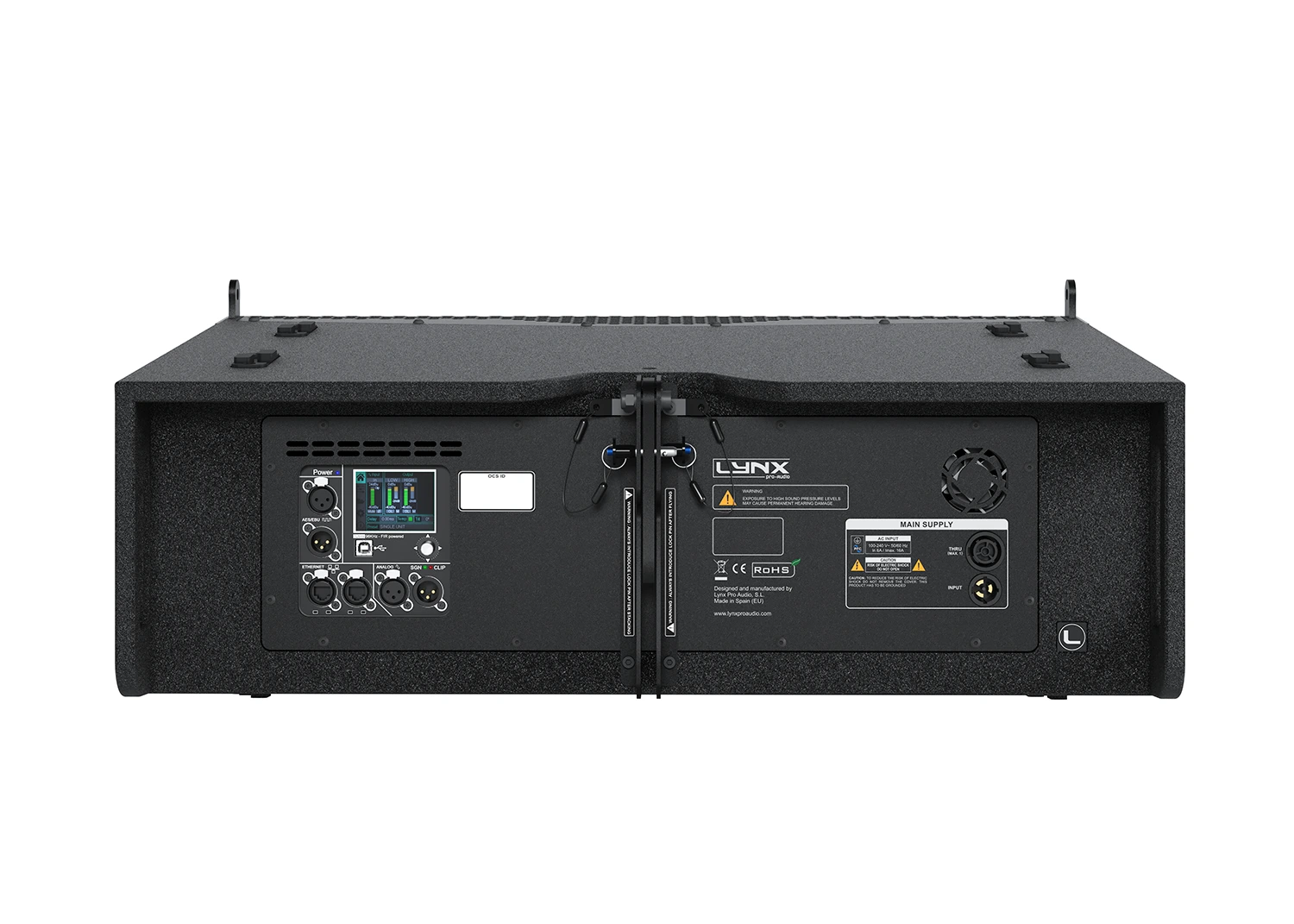

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

Configuration panel:

	HOME On the main screen you can see the cabinet’s input and output: • Input: You can see a vumeter with the input level and a clip signal. • Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.
	SETTINGS This panel allows you to change the gain, polarity, mute and the delay for the inputs. You also have the possibility of putting a high pass, changing the type of filter, frequency and order.
	FOLDER The folder screen shows you the name of the preset and its description. Using the joystick you can change the preset.
	CONFIGURATION This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver. And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.
	INFORMATION The last screen shows you some general information regarding the cabinet’s components. Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

DSP module configuration panel

On the back panel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output.

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER:

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION:

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION:

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

More features

Hardware for LAIA-210

	Enclosure The LAIA-210 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating
	Internal design The internal structure of the LAIA-210 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

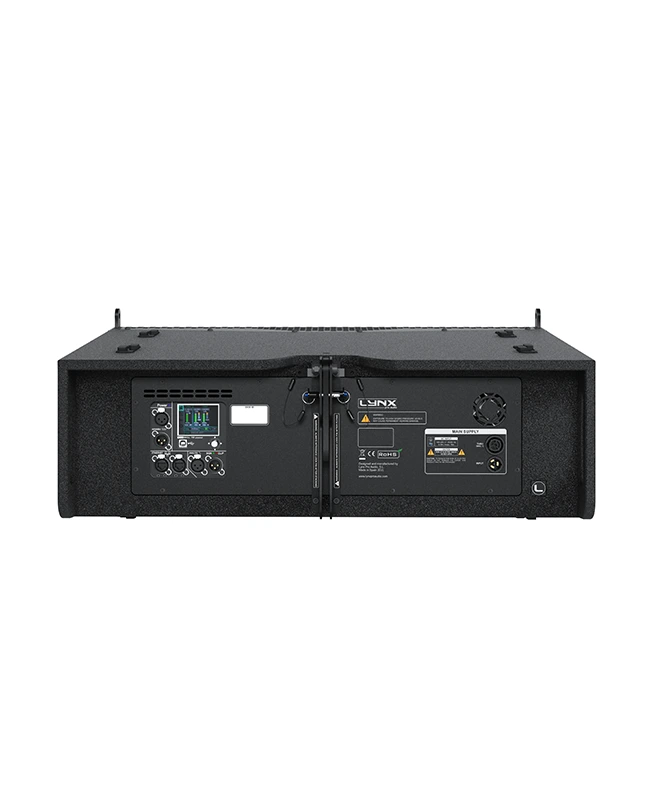

	Rear panel The powder coated steel rear panel contains all connections and houses the LAIA-210 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency
	Grill The LAIA-210 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.
	Handles The LAIA-210 has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets. Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides.
	Rigging The 3 point rigging system with 2 retractile levers and 1 centre/rear point enables up to 16 LAIA-210 cabinets to be flown in a single array with optional splay angles, from between 0° to 10° with 1° step increments to create the desired curve. The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.
	Transport The LAIA-210 is easy to transport thanks to its dedicated Dolly. The cabinets lock in 3 points on to the dolly and a protective nylon cover is also available to protect the enclosure and keep it clean on tour.
