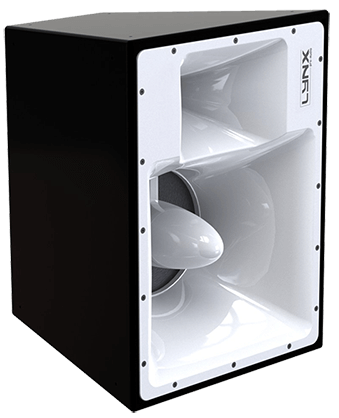

DS-12

Clubbing system

High Output, hornloaded, two-way cabinet. Consists of a 12″ (64mm aluminium voice coil) transducer and a 1.4″ neodymium compression driver with titanium diaphragm mounted on a special GFK/Sandwich 60º x 40º horn.
Bi-amplified delivering AES 60W (HF) and AES 500W (LF/MF), 133dB SPL.

Description



Available in any colour and finish you like, the DS-12 is designed to not only be pleasing to the eye but also to the ear. The horn loaded, high power DS-12 is primarily designed for installations, especially clubs/discos, is bi-amplified and can also be manufactured as a self-powered version to deliver all the features such as FIR that Lynx Pro audio electronics deliver.

It uses an exponential 12” Driver (64mm aluminium voice coil) for the low/mid and the high frequencies are looked after by a 1.4” neodymium compression driver with titanium diaphragm and mylar surround. The special GFK/Sandwich horn delivers 60º x 40º coverage.

N

Perfectly suited for:

→  Club & Bar installations
→  Multi media spaces

Technical Data



Components
LF/MF 1×12″  + 1.4″ titanium diaphragm HF driver
Frequency Range 130 Hz – 20 KHz (-10dB)
Frequency Response
150 Hz – 18 KHz (± 3dB)
Max SPL 130 dB / 133 dB peak
Coverage Angle
60º H x 40 º V
Power

Low/Mid: 500W

High: 60W

Program Power
Low/Mid: 1000W
High: 120W
Crossover 1450 Hz
Nominal Impedance
Low/Mid: 8 Ohm
High: 8 Ohm
Shape Trapezoidal
Connectors
2 x Neurtik Speakon NL4MP
Construction 15mm Premium birch plywood
Finish
Different colours (RAL) and finishing options

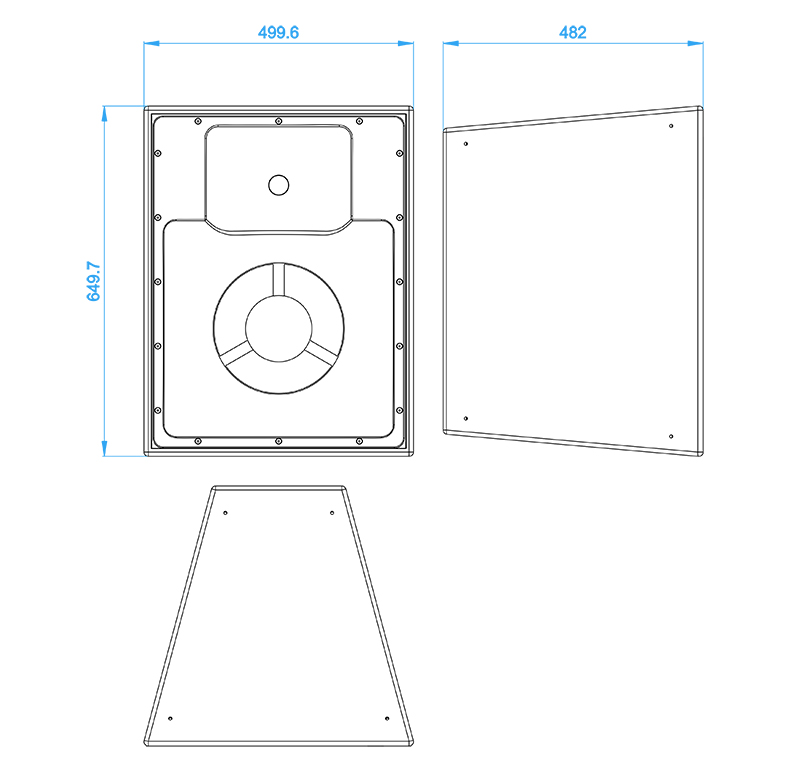

Dimensions 649 x 499 x 482 mm (H x W x D)
Weight
32 Kg (70 lbs)

More features

Components

It uses an exponential 12” Driver (64mm aluminium voice coil) for the low/mid and the high frequencies are looked after by a 1.4” neodymium compression driver with titanium diaphragm and mylar surround. The special GFK/Sandwich horn delivers 60º x 40º coverage.

Accessories for DS-12
AGR-10 AGR-10
M10 Eye bolt for DS-12 cabinets
ST-DS12
Support stack for Ds-12 cabinets
