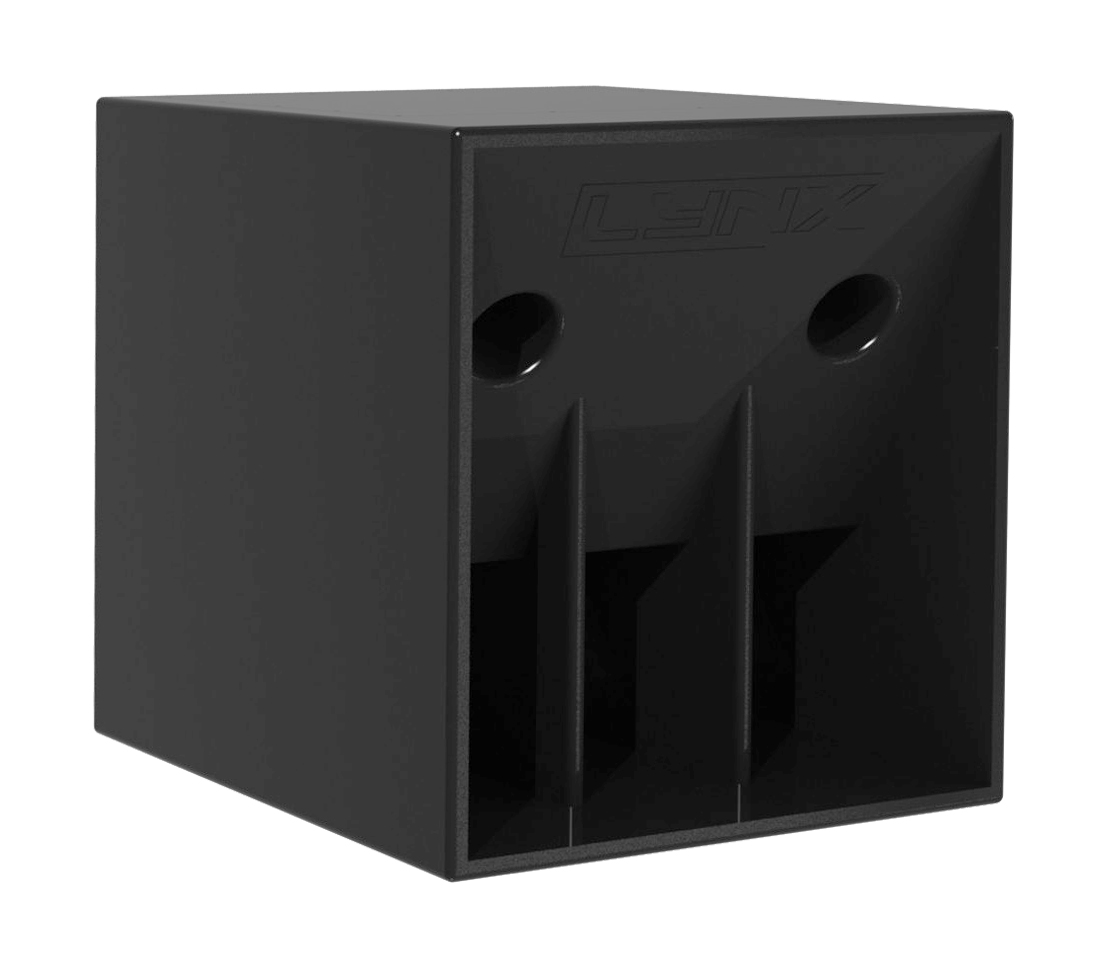

DS-18S

Clubbing system

The DS-18S is an extremelly high power subwoofer cabinet providing exceptional low frequency reinforcement for the DS-12. It uses one 18” (4” DUO voice coil) transducer with aluminium demodulating ring in direct radiation bass reflex configuration.

Description

The DS-18S is an extremelly high power subwoofer cabinet providing exceptional low frequency reinforcement for the DS-12. It uses one 18” (4” DUO voice coil) transducer with aluminium demodulating ring in direct radiation bass reflex configuration.

Manufactured as standard with premium birch plywood and finished with polyurea coating it can also be manufactured in any colour or finish to compliment any install design.

N

Perfectly suited for:

→  Club & Bar installations
→  Multi media spaces

Technical Data



Components
LF: 1 x 18″
Frequency Range 30 Hz – 250 Hz (-10dB)
Frequency Response
35 Hz – 200 Hz (± 3dB)
Max SPL 133 dB / 136 dB peak
Rated Power RMS
1000 W
Program Power 2000 W
Coverage
360º single unit
Nominal Impedance 8 Ω
Construction
18 mm Premium birch plywood
Finish Different colours (RAL) and finishing options
Dimensions
639 x 585 x 733 mm (H x W x D)
Weight 42 Kg (92 lbs)

More features

Components

It uses one 18” (4” DUO voice coil) transducer with aluminium demodulating ring in direct radiation bass reflex configuration.
