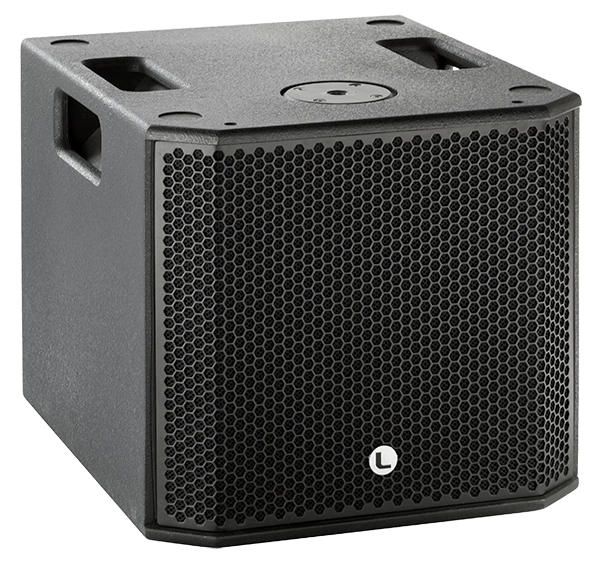

ionic-12S



Ultra-compact, self powered (class D switch mode power supply with PFC), omni-directional sub bass cabinet.



Applications

Indoor Live events
Clubs
Theatres
Houses of worship
Cruise ships
Small/Medium sized Clubs&Discos

ionic-12S





Specifications
Components 1 x 12″ speaker with 3″ voice coil
Frequency range 40 Hz – 250 Hz (-10dB)
Frequency Response 46 Hz – 250 Hz (± 3dB)
Max. SPL 127 dB
Coverage Angle Omnidirectional
Power 1400 W Class D with switching power supply & PFC
LF Amplifier 1 x 700 W
Speaker Output Amplifier 1 x 700 W @ 8 Ohms
Processing 56 bit Lynx dspb-22
Control User control interface with LCD
Control Connections Ethernet (OCS) optional / USB (DSP programming)
AC Power 85 – 270V. 50/60 Hz with PFC
AC Connections 16A Neutrik powerCon TRUE1 with looping output
Finish High resistant water-based paint
Material 15mm Premium birch plywood
Dimensions (H x W x D) 407 x 440 x 520 mm
Weight 23 Kg (50.6 lbs)





Accessories



SV-I2S
SV-I2S
Sub adaptor for satellite
FD-4LXV8
FD-IONIC12S
Nylon Protection Cover for ionic-12S
VSM-V2 VSM-V2

M20 connector plate for M20 pole support TU-C02
TU-C02 TU-C02

M20 pole support for combination between sub and satellite cabinet



Hardware IONIC-12S



Enclousure-ADP


Enclosure

The IONIC-12S cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with high-resistant water based paint.



Enclousure-f6

Internal design

The internal structure of the IONIC-12S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers.

Rear_panel_ionic_12S


Rear panel

The powder coated steel rear panel contains all connections and houses the IONIC-12S amplification modules and DSP, is easily accessible and housed separately from the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Grill_ionic-12S


Grill

The IONIC-12S has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handle_ionic_12S


Handles

One handle is located on each side of the enclosure to facilitate transport and positioning of the cabinets.



ionic-12S dimensions

LYNX_ionic12S
