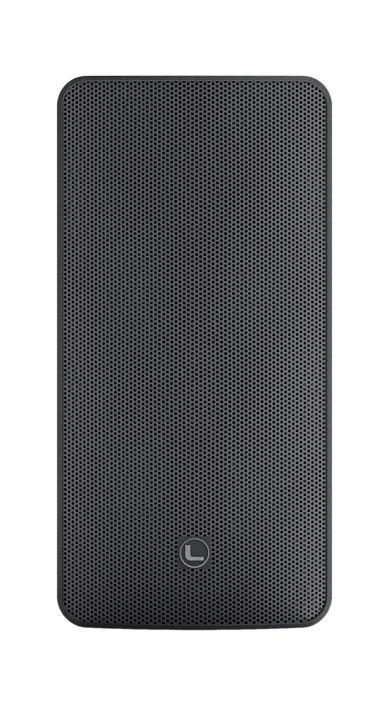

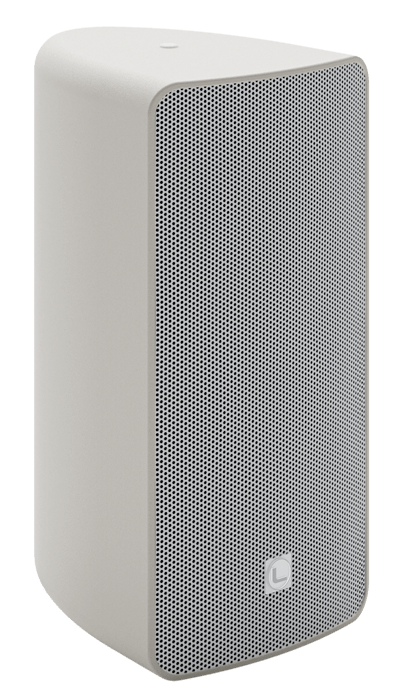

JN-6T

Weather resistant full range loudspeaker

Weather resistant two-way full range loudspeaker. Consists of one 6″ low/mid-woofer with one 1″ HF driver, with a multitap transformer. 116dB SPL.

Description

The JN-6T comprises one 6″ low/mid-woofer with one 1″ HF driver and is equipped with a multitap transformer.

High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships and terraces.

The JN-6T can be set up either vertically or horizontally. The body is made of engineered plastic injection moulding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.

The system conforms to IP46 international standard.

Key features

Indoor or outdoor application

Weather resistant – IP46 rating

Tested to withstand snow, rain and salt

Engineering plastic injection molding

UV rays protection

 Vertical and horizontal installation

Internal waterproof fabric

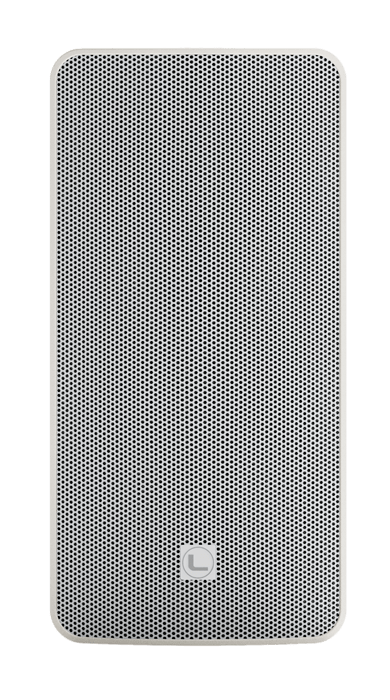

Available in black or white colour

N

Perfectly suited for:

→  Meeting rooms
→  Commercial centers
→  Water parks & pools
→  Outdoor background music
→  Beach clubs
→  Cruise ships

Technical Data



Frequency response (-3 dB)
60 Hz – 18 KHz
Frequency response (-10dB) 55 Hz – 20 KHz
Drivers
1×6″ (150 mm) / 1.5″ voice coil LF
1×1″ (25 mm) / 1″ voice coil HF
Rated power 80 W
Transformer taps 100 V: 20W / 40W / 80W
Sensitivity
89 dB 1w/1m
Maximum SPL 110 dB / 116 dB peak
Impedance
16 Ω nominal
Dispersion (-6dB) 90º x 60º
Crossover frequencies
2.4 KHz passive
Input connectors covered barrier strip terminals
Package size
524 x 242 x 417 mm (1 pair)
Net weight 6.5 Kg / pc
Gross weight
15.5 Kg / pair
Lynx Pro Audio Juno Series 6" installation cabinet for indoor and outdoor IP46

More features

Accessories included as standard with JN-6T
U-bracket with stainless steel screws, silicone washers and safety cable

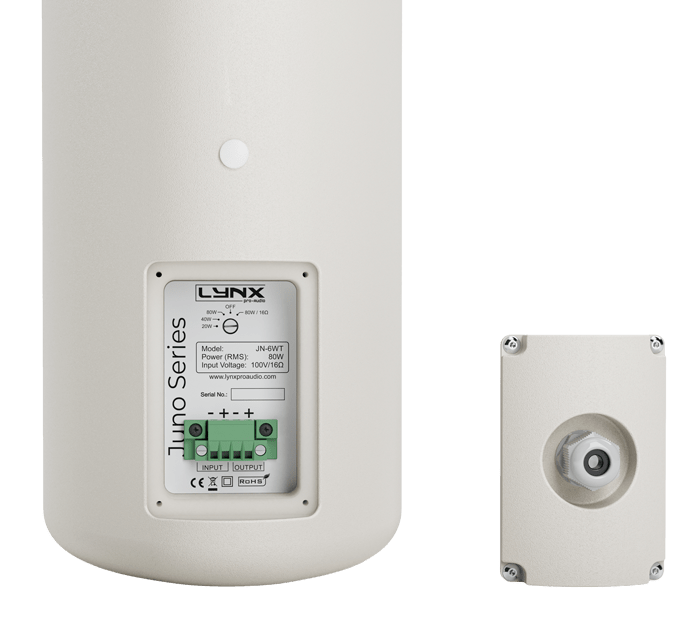

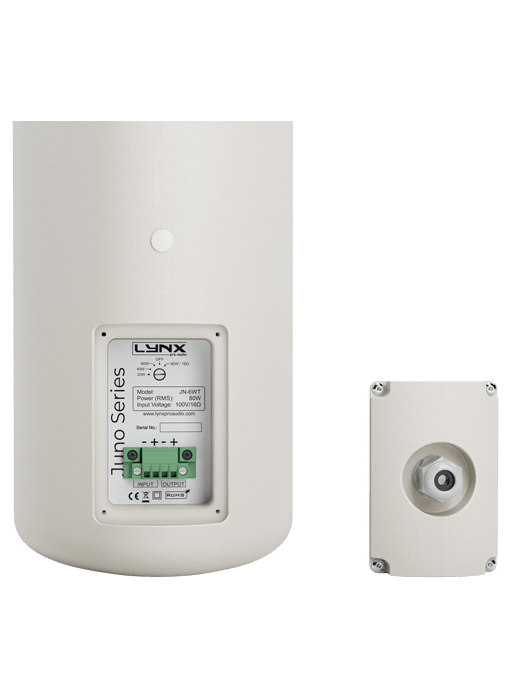

Plastic cover with gland connector and uroblock input connector

Other products from this series

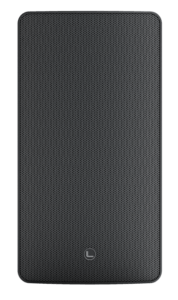

8″ low/mid woofer + 1″ HF driver with line transformer
