JN-8T

Weather resistant full range loudspeaker

Weather resistant two-way full range loudspeaker. Consists of one 8″ low/mid-woofer with one 1″ HF driver, with a multitap transformer. 122 dB SPL.

Description

The JN-8T comprises one 8″ low/mid-woofer with one 1″ HF driver and is equipped with a multitap transformer.

High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships and terraces.

The JN-8T can be set up either vertically or horizontally. The body is made of engineered plastic injection moulding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.

The system conforms to IP46 international standard.

Key features

Indoor or outdoor application

Weather resistant – IP46 rating

Tested to withstand snow, rain and salt

Engineering plastic injection molding

UV rays protection

 Vertical and horizontal installation

Internal waterproof fabric

Available in black or white colour

N

Perfectly suited for:

→  Meeting rooms
→  Commercial centers
→  Water parks & pools
→  Outdoor background music
→  Beach clubs
→  Cruise ships

Technical Data



Frequency response (-3 dB)
60 Hz – 18 KHz
Frequency response (-10dB) 55 Hz – 20 KHz
Drivers
1×8″ (200 mm) / 2″ voice coil LF
1×1″ (25 mm) / 1″ voice coil HF
RMS power 150 W
Input voltage
100 V
Transformer taps  37.5W / 75W / 150W
Sensitivity
94 dB 1w/1m
Maximum SPL 116 dB / 122 dB peak
Impedance
16 Ω nominal
Dispersion (-6dB) 90º x 50º
Crossover frequencies
2.3 KHz passive
Input connectors covered barrier strip terminals
Package size
370 x 310x 525 mm
Net weight 10 Kg / pc
Gross weight
12 Kg / pc
Lynx Pro Audio Juno Serie 8" loudspeaker installation cabinet for indoor outdoour IP46 water protection

More features

Accessories included as standard with JN-8T
U-bracket with stainless steel screws, silicone washers and safety cable
Plastic cover with gland connector and uroblock input connector

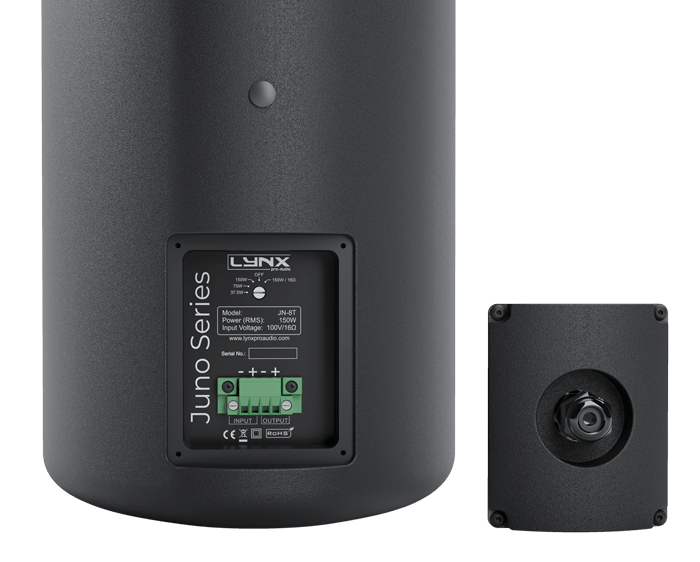

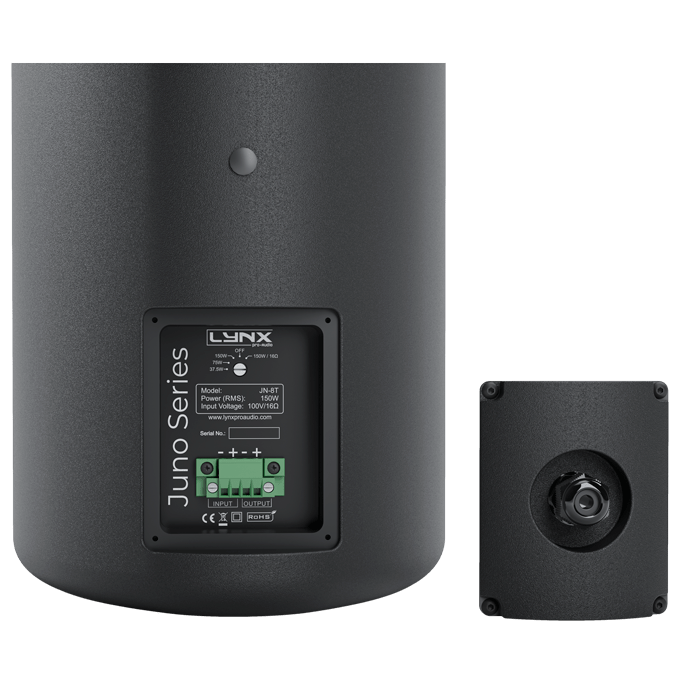

Backpanel detail

Other products from this series

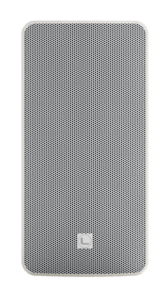

6″ low/mid woofer + 1″ HF driver with line transformer
