DR-N12



Extremelly compact, high power, passive sub-bass cabinet with one 12” low frequency transducer with rubber surround in direct radiation configuration. 129 dB SPL (2000W Program).

Applications

Multi media spaces
Hotels
Club and Bar Installs
Theatres
Portable sound
Restaurants
Live sound
Specifications
ComponentsLF 1 x 12″ transducer
Frequency range34 Hz – 400 Hz
Frequency Response39 Hz – 220 Hz ± 3 dB
Sensitivity97 dB (1W @ 1m)
Max. SPL129 dB
RMS power1000 W
Program power2000 W
Coverage angle360º single unit
Impedance8 Ohm
Input Connectors2 x Neutrik Speakon NL4MP
Material18mm Premium birch plywood
FinishPolyurea coating. black steel grill with acoustic fabric protection
Dimensions (H x W x D)415 x 590 x 370 mm
Weight28 kg (62 lbs)
The DR-N12 is an extremely compact, very high power direct radiation, passive subbass cabinet in bass reflex configuration delivering 1000W RMS.
It features one 12” transducer (4” voice coil) with rubber surround for increased levels of pressure, double spider for improved control and linearity, weather protected cone for outdoor use and ventilated voice coil for improved heat dissipation. The DR-N12 has been designed to be used with the QB-8, QB-10, QB-D6 and QB-D8 to extend the low frequency support.
It is made from premium birch plywood and coated with high resistant waterbased black paint, includes integrated handle, rubber feet and top hat insertion point for satellite combination with the QB Series. The cabinet can be used in both horizontal and vertical configuration.

Accessories DR-N12



VSM-V2
VSM-V2
Pole support
TU-C01
TU-C01
35mm connecting pole for satellite combination between sub units and DR-N12
TU-C02
TU-C02
M20 pole support combination between sub units and DR-N12 with safety lock
The DR-N12 features one 12” transducer (4” voice coil) with rubber surround for increased levels of pressure, double spider for improved control and linearity, weather protected cone for outdoor use and ventilated voice coil for improved heat dissipation.

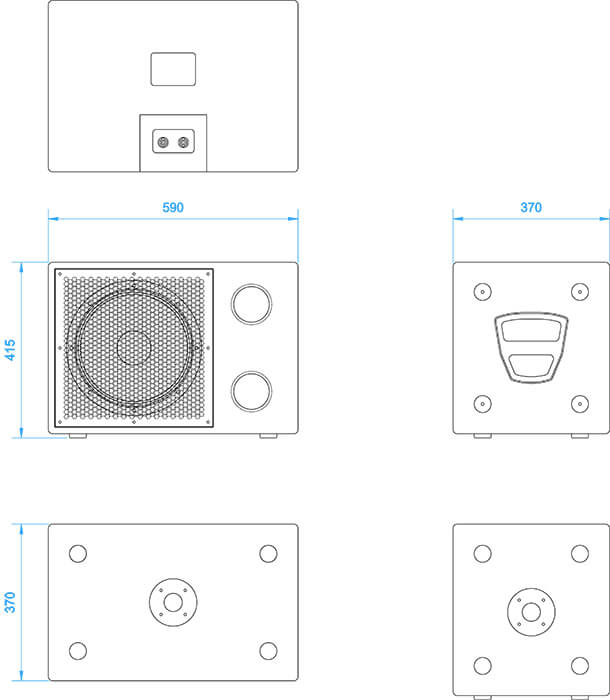

Dimensions
LYNX_DR-N12_2D
