CLS-212P

Passive coaxial line array

Extremely compact & extremely powerful 3-way, biamplified coaxial line array element. Dual high power 12” neodymium transducers and two unique 6.5” dual diaphragm coaxial planar wave driver.

Description

h CLS-212P is a high-output extremely compact and extremely powerful 3-way, biamplified symmetrical coaxial line source element designed for medium sized touring & fixed installations.

It uses two low distortion 12” (4” DUO copper voice coil) custom speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and waterproof cone.

For the mid/high frequencies it uses 2 ultra light 6.5” dual diaphragm coaxial planar wave drivers. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression. The larger annular midrange diaphragm covers the frequency range between 500Hz and 6.3KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 6.3KHz to 22Khz.

With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference. Thanks to the mid range’s extended low bandwith (500Hz) the CLS-212P is able to deliver an unmatched 100º horizontal constant directivity coverage pattern.

Depending on the configuration, the system is amplified with the GTX Series4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.

Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking AES67 and AES3 Digital inputs are also available.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection. It also has a number of dedicated accessories available and the 3 point rigging system which includes 2 front automatically rising plates and 1 centre/rear point enables 16 CLS-212P cabinets to be flown in a single array. The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Key features

Extraordinary power-to-size ratio

Unique 6.5” dual diaphragm planar wave driver

Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence

Extended bandwith (60 Hz – 22 KHz)

 Perfect Time Alignment avoiding Multi-Source Interference problems

Ergonomic design in premium birch plywood & finished in polyurea

N

Perfectly suited for:

→  Touring and fixed installations
→  Sports stadiums
→  Houses of worship
→  Club installations
→  Theatres
→  Concert halls and auditoriums

Technical Data



Components
LF: 2 x 12”. 4” DUO double layer in/out copper voice coil, Waterproof cone treated on both sides, Neodymium magnet. 1400 W (AES)
MF/HF: 2 x 6.5” dual diaphragm coaxial planar wave driver

-Mid: 3.5″ (90 mm) voice coil, 150 W (AES)
-High: 1.5″ (44.4 mm) voice coil, 80 W (AES)

Frequency Range60 Hz – 22 KHz -6dB)
Horizontal Coverage
100º
Vertical CoverageSingle element 10º
Max SPL/Peak
LF: 135 dB / 140 dB
MF/HF: 141 dB / 147 dB
Sensitivity

LF: 103 dB

MF/HF: 114 dB

Impedance
Low section: 4 Ω (8 + 8 Ω)
Mid/High section: 8 Ω
CrossoverMid/high: 6300 Hz
Low/mid: 500 Hz
Speakon connection
+1/-1 12″ Right, +2/-2 12″ Left, +3/-3 mid/high section +4/-4 NC
FinishPolyurea coating, high grade resistant paint
Material
15 mm premium birch plywood

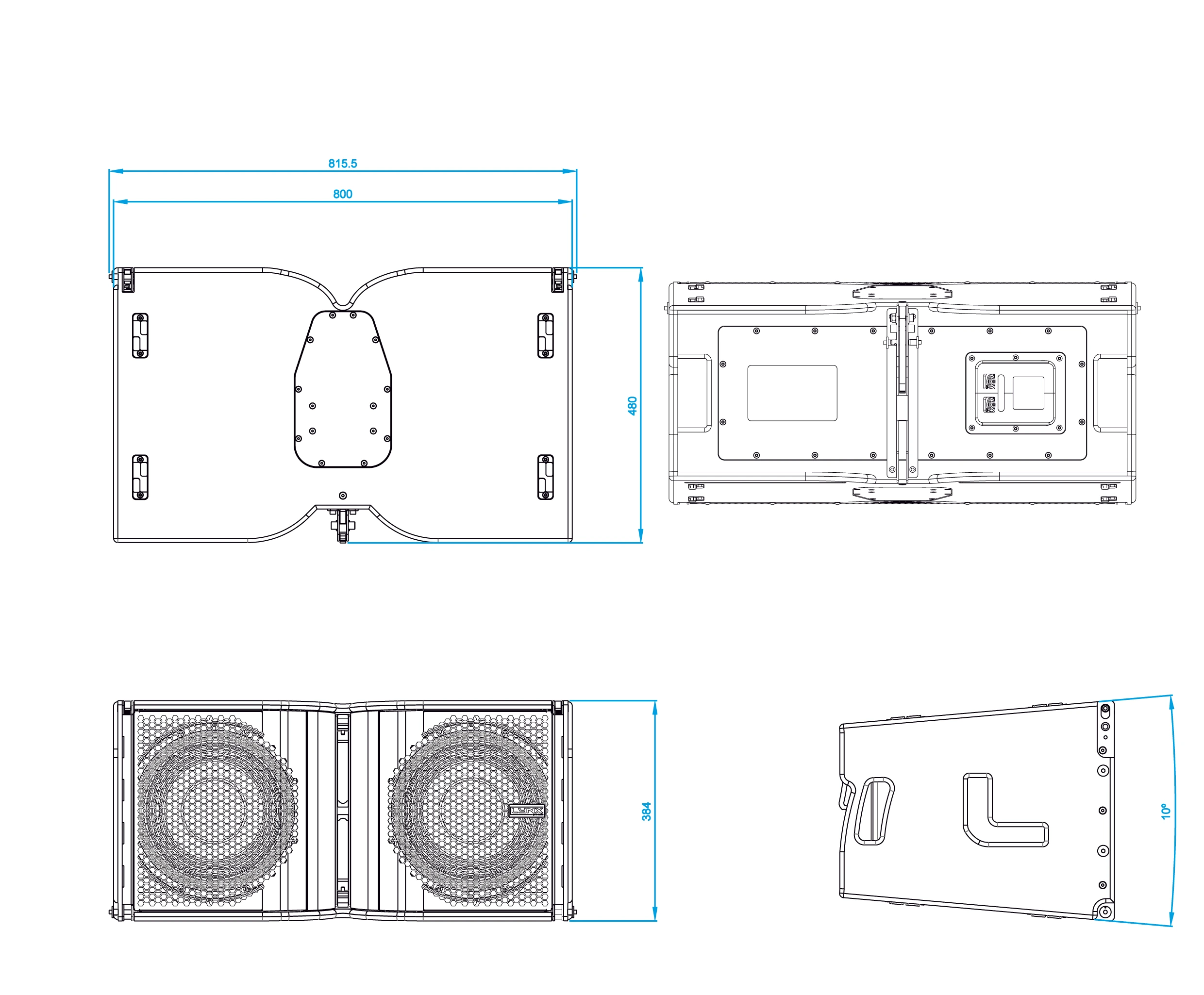

Dimensions384 x 800 x 480 mm (H x W x D) / with pins 815.5 mm (W)
Weight
47 Kg (103.6 lbs)

More features

Hardware for CLS-212P
Enclousure-v12
Enclosure

The CLS-212 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

Internal design

The internal structure of the CLS-212 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rear panel

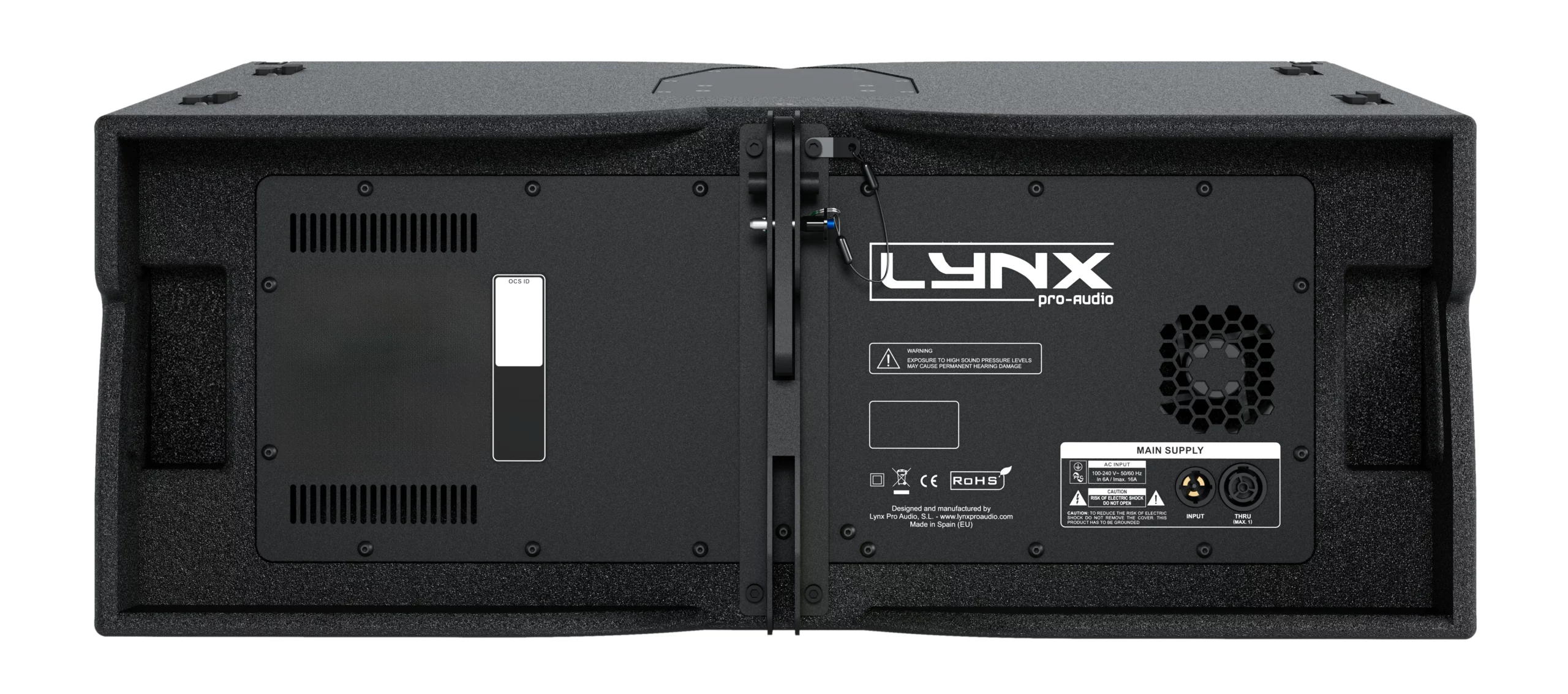

The powder coated steel rear panel contains all connections and houses the CLS-212 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill

The CLS-212 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

The CLS-212 has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets.  Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides.

Rigging

The 3 point rigging system with 2 retractile levers and 1 centre/rear point enables up to 16 CLS-212 cabinets to be flown in a single array with optional splay angles, from between 0° to 10° with 1° step increments to create the desired curve.

The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Transport

The CLS-212 is easy to transport thanks to its dedicated Dolly. The cabinets lock in 3 points on to the dolly and a protective nylon cover is also available to protect the enclosure and keep it clean on tour.

Accessories for CLS-212P

SV-CLS20

Flying frame for 16 CLS-212 or 10 CLS-121S.
Máx. 1000 Kg

SV-CLS20 Lite

Flying frame for 16 CLS-212.
Máx. 1000 Kg

SC-CLS212/121S

Connection system for CLS-212 together with CLS-121S

SC-CLS212/28

Connection system for CLS-212 together with CLS-28

ST-SVCLS/M20
Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

CA-4CLS212

Dolly for 4 CLS-212



ST-CLSKIT
4 x ground stack stabilisers for SV-CLS10
FC-GXR15X2

FC-SVCLS20

Flight case to transport 2 SV-CLS20, cables and accessories



FD-4LXV8

FD-4CLS212

Nylon protection cover for 4 CLS-212 with a CA-4CLS212

Rain-Cover

FD-CLS212NL

Rain cover for CLS-212

BALL-PSRBALL-PSR0820
Ball pin with thread for CLS-212 cabinet and CLS-121S

Other products from this series

2 x 8″, 1 x 8″ dual diaphragm coaxial planar wave driver

1 x 18″,  subwoofer in direct radiation configuration

1 x 21″, subwoofer in direct radiation configuration

2 x 18″,  subwoofer in direct radiation configuration
