CLS-218SP

Subwoofer unit in direct radiation configuration

Compact & extremely powerful, 3400W sub-bass unit in direct radiation configuration. Dual 18” (4.5” voice coil) neodymium transducer.

Description

he CLS-218SP is a high-output, extremely powerful sub-bass element designed to be used in unison with the coaxial CLS-212P line array module.

It uses two low distortion 18” (4.5” Split winding copper voice coil) custom speaker with double silicon spider with optimized compliance, ventilated voice coil for reduced power compression and aluminium demodulating ring for very low distortion.

Designed to be used either as a standard sub bass unit or easily configurable in cardioid configuration thanks to integrated front & rear power connectors enable a discreet installation without any cables visible at the front of the cluster. The extra strong, especially designed internal wooden reinforcements reduce unwanted vibrations eliminating any noise, lowering distortion and delivering a clear sound. At the same time, the bass port is designed with a flare to eliminate any turbulence caused by sharp edges in the sound waves path.

Depending on the configuration, the system is amplified with the GTX Series4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.

Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking AES67 and AES3 Digital inputs are also available.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection. It also has a number of dedicated accessories available.

Key features

Extraordinary high power output

Front & rear audio and power connectors for cardioid applications

Ergonomic design in premium birch plywood & finished in polyurea

Stackable and flyable standard and/or cardioid configuration

N

Perfectly suited for:

→  Touring and fixed installations
→  Sports stadiums
→  Houses of worship
→  Club installations
→  Concert halls and auditoriums
→  Low frequency complement for CLS-28P and CLS-212P

Technical Data



Components
LF: Dual 18” Neodymium magnet transducer. 4.5” split winding copper voice coil. Waterproof cone treated on both sides. Aluminium demodulating ring for very low distortion. 1700 W (AES)
Frequency range25 Hz – 250 Hz (preset 100 Hz)
Frequency response
30 Hz – 100 Hz (preset 100 Hz)
28 Hz – 80 Hz (preset infra)
CoverageQuasi omnidirectional
Max SPL / Peak
136 dB / 142 dB
Sensitivity 1w/1m half space101 dB
Power
3400W / 6800W / 13600W peak
Impedance4 Ω
Configuration
Bass-reflex direct radiation enclosure
FinishPolyurea coating, high grade resistant paint
Material
15 mm / 18 mm premium birch plywood
Dimensions600 x 1200 x 770 mm (H x W x D)
Weight
81 Kg (178.5 lbs)

Calculated maximum SPL based on rated peak power and measured sensitivity.

More features

Hardware for CLS-218SP
Enclousure-v12
Enclosure

The CLS-218S cabinet is constructed from 11-ply and 13-ply premium birch plywood (15mm & 18mm thickness). The enclosure is finished with polyurea coating.

Enclousure-f6
Internal design

The internal structure of the CLS-218S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

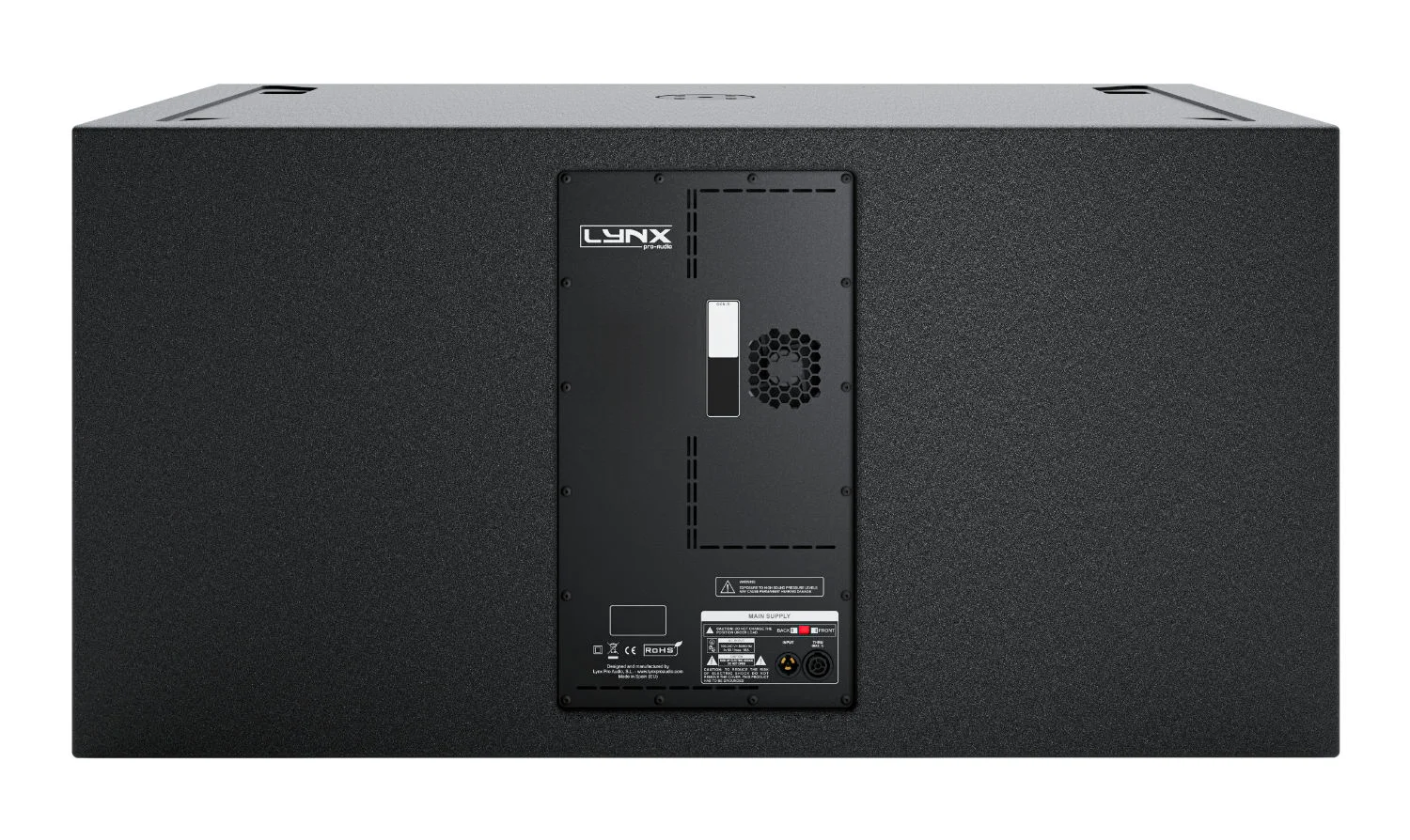

Rear panel

The powder coated steel front panel contains connections to power and signal for cardioid operation.

Grill

The CLS-218S has three heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

The CLS-218S has six ergonomic handles with firm internal grip, three on each side of the enclosure, to facilitate transport, positioning and loading of the cabinets.

Transport

The CLS-218S has two transport options: front squid cover with wheels (100mm) and a metal transport dolly for up to three CLS-218S enclosures.

Accessories for CLS-218SP

ST-SVCLS/M20

Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

CA-CLS218S

Removable front transport dolly for CLS-218S



CA-CLS218S/2

Dolly for 2 CLS-218S

Rain-CoverFD-CLSSUBNL
Rain cover for CLS-118S / CLS-121S / CLS-218S
FD-4LXV8

FD-CLS218S

Nylon protection cover for CLS-218S

FD-2CLS218S

Nylon protection cover for 2 CLS-218S

FD-3CLS218S

Nylon protection cover for 3 CLS-218S
