CLS SERIES

Coaxial line array speakers

The CLS (Coaxial Line Source) Series is Lynx Pro Audio’s scalable line array solution, designed for professional sound reinforcement applications requiring high output, controlled coverage and flexible system configurations.

The series combines coaxial mid/high-frequency technology with dedicated amplification and integrated DSP processing. Its modular architecture allows different full-range cabinets and subwoofers to be combined according to the coverage, output and low-frequency requirements of each project.

CLS systems are supported by Lynx Pro Audio’s software ecosystem. Rainbow 3D provides electro-acoustic prediction and system design, while OCS (Online Control System) enables configuration, monitoring and control of compatible systems.

Suitable for:

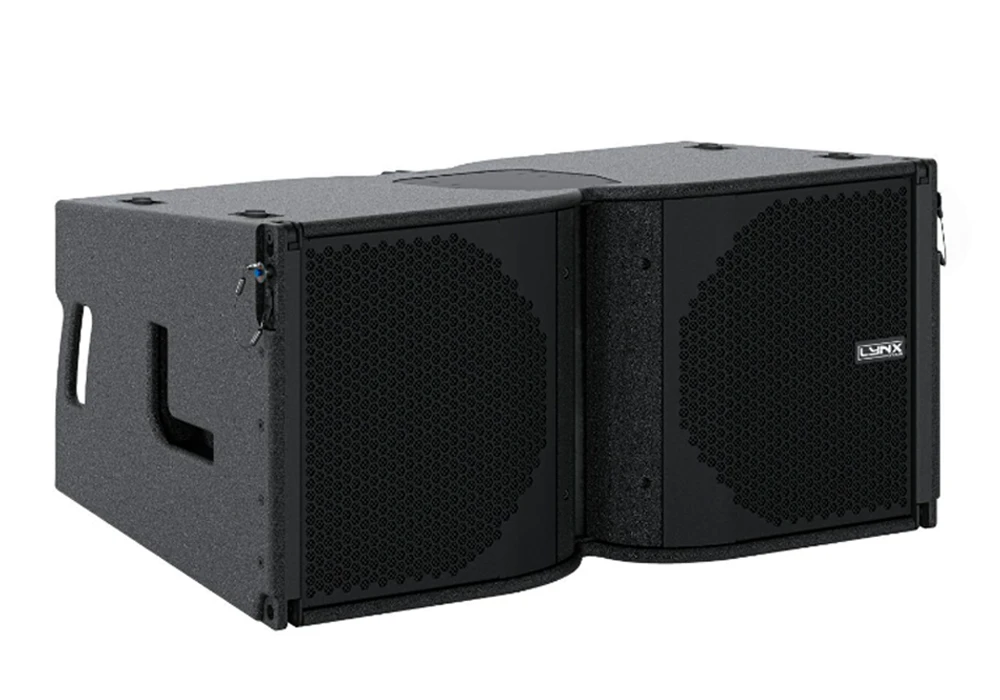

CLS-212

2×12″, 2x 6.5″ dual diaphragm coaxial planar wave driver, 6000W, 142 dB SPL

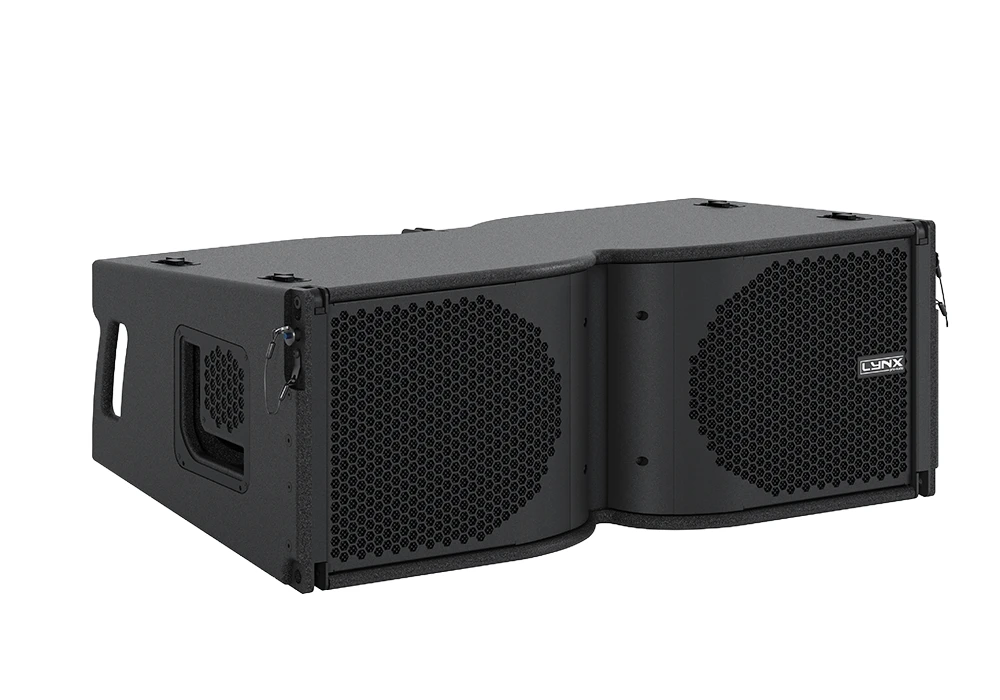

CLS-210

2×10″, MH: 3″| HF: 2″ dual diaphragm coaxial planar wave driver, 4000W, 136 dB SPL

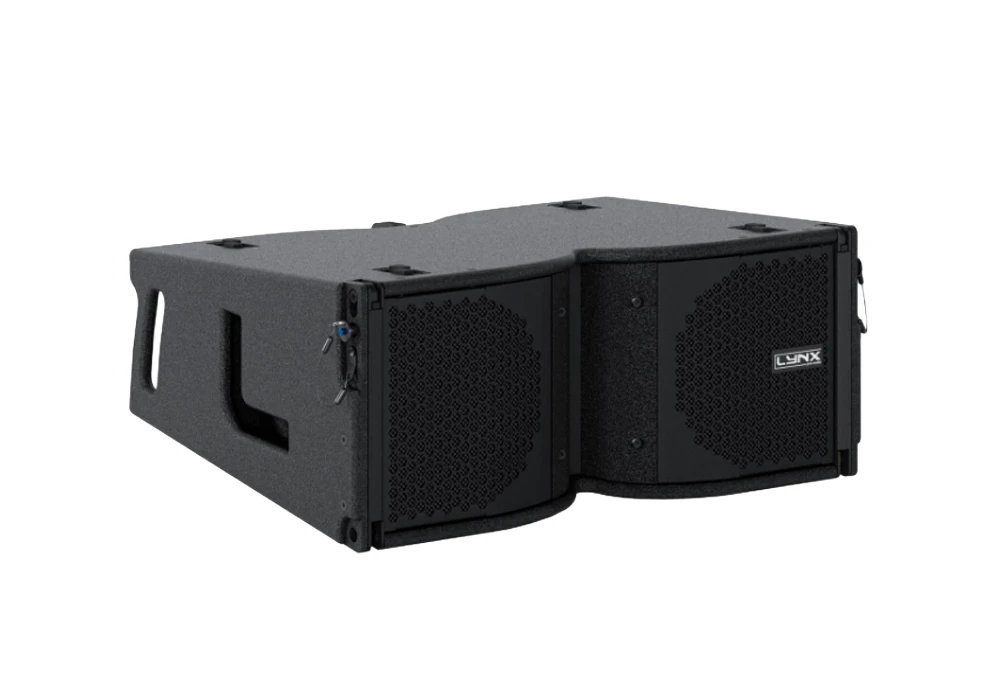

CLS-28

2 x 8″, 1 x 8″ dual diaphgram coaxial planar wave driver, 2800W, 135 dB SPL

CLS-218S

2 x 18″, 6000W Class D direct radiation configuration, 6000W, 136 dB SPL

CLS-121S

1 x 21″, 3000 W Class D, unit in direct radiation configuration, 3000W, 131 dB SPL

CLS-118S

1 x 18″, 3000W Class D, unit in direct radiation configuration 131 dB SPL

Self-powered

All CLS series cabinets include class D amplification, with switching power supply. The integrated amplification far exceeds the transducers’ needs thus resulting in high output, high damping factor and extremely low levels of distortion on all of the Line Arrays.

CLS series are equipped with energy saving PFC (Power Factor Correction). The power supply regulates itself when AC mains change, so the amp power output will not change with mains swinging. It reduces the current draw in 40% approximately.

Digital processing

All systems have a DSP integrated into each cabinet. This DSP, with double precision filters, 64bit internal processing and double dynamics (RMS & Peak) optimizes all the system components and electronics, providing maximum system efficiency and total protection whilst significantly and noticeably lowering distortion.
