CLS-210

DSP integrated coaxial line array

Extremely compact & extremely powerful 3-way, self-powered (4000 W Class-D with PFC), DSP integrated coaxial line array element. Dual high power 10” neodymium transducers and 1.4” Exit throat (HF 2” voice coil/ MF 3” voice coil) coaxial neodymium compression driver

The CLS-210 is an extremely compact and powerful 3-way, self-powered, symmetrical coaxial line source element with integrated DSP, designed for medium-sized touring applications and fixed installations.

For the low frequencies, it uses two custom-designed, low-distortion 10” loudspeakers with 3” voice coils. They incorporate dual-gap technology, an FEA-optimised neodymium magnet circuit, an aluminium demodulating ring and a waterproof cone.

For the mid and high frequencies, it employs a dual-diaphragm coaxial compression driver with a 1.4” exit, featuring a 3” voice coil for the mid frequencies and a 2” voice coil for the high frequencies. The voice coil technology uses lightweight copper-clad aluminium wire, wound inside and outside the Kapton former to improve heat dissipation, increase acoustic output and driver reliability, and minimise power compression.

The larger annular diaphragm reproduces the mid frequencies, from 300 Hz to 7 kHz, with a smooth, linear response. The ultra-lightweight annular high-frequency diaphragm delivers an efficient transient response from 4 kHz to 22 kHz. These ranges refer to the individual diaphragms within the coaxial driver; the complete system has a frequency range of 60 Hz to 20 kHz.

By integrating two subsystems within a single driver, each diaphragm operates over a narrower frequency range, supporting increased power handling, high dynamics and low distortion. The coaxial configuration provides phase coherence and time alignment, avoiding the interference problems associated with separate sources.

CLS-210 Lynx Pro Audio CLS Series back

The 4000 W Class D amplifier, with a switching power supply and Power Factor Correction (PFC), offers high efficiency and incorporates thermal, short-circuit and overload protection.

Developed by Lynx Pro Audio engineers, the DSPB-FL processor operates at 96 kHz with 64-bit double-precision processing and incorporates linear-phase FIR filters. The system also features 32-bit, 96 kHz AD/DA converters.

Located on the rear panel, the user interface features a 2.8” IPS display and a multifunction joystick for selecting and adjusting parameters such as cabinet presets, gain, delay and input EQ.

Dual Ethernet ports enable system control and monitoring through the OCS platform, facilitating array alignment, monitoring and processing. Rainbow 3D electroacoustic prediction software complements these functions during system design.

The enclosure is manufactured from 15 mm premium birch plywood and finished with a polyurea coating for increased durability and protection against environmental conditions.

Perfectly suited for:
  • Touring and fixed installations
  • Sports stadiums
  • Houses of worship
  • Club installations
  • Theatres
  • Concert halls and auditoriums

• Extraordinary power-to-size ratio

• Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence

• Extended bandwith (60 Hz – 20 KHz)

• Integrated Digital processor (64 bit / 96 KHz) with FIR linear phase filtering

• Perfect Time Alignment avoiding Multi-Source Interference problems

• Ergonomic design in premium birch plywood & finished in polyurea

• 2.8” IPS display with multifunction joystick control

Components
  • LF: 2 x 10”, (3” DUO double layer in/out copper voice coil), waterproof treated cone on both sides, Neodymium magnet. 1400 W (AES)
  • MF: 3” (76mm) voice coil, 90W (AES)
  • HF: 2” (51 mm) voice coil, 50W (AES)
Frequency Range

60 Hz – 20 KHz

Coverage

100º H x Single element 10º V

Max SPL / Peak

136 dB / 142 dB

Power amplifier

4000 W Class-D with switching power supply & PFC

DSP Processing

Internal Lynx Processor DSPB-FL. 96 KHz / 64 bit double-precision, DSP with FIR filter linear phase.

High performance 32 bit 96 KHz AD/DA converters

Crossover

Digital: FIR Filter 550Hz

Control

User control interface with 2.8” IPS display and multifunction joystick controller

Control connections

USB (DSP programming, Dual Ethernet port, Online Control System

Input

BAL/ UNBAL XLR connectors analog input AES3 digital input

Nominal voltage

100 – 240V AC @ 50-60 Hz

Operating voltage

85 – 264V AC

AC Connectors

16A Neutrik powercon true1 TOP with looping output

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Intercabinet angle adjustment

0º to 10º in one degree increments

Dimensions

302 x 800 x 479 mm (H x W x D)

Weight

33 Kg (72.75lbs)

More features

Hardware for CLS-210

Enclosure

The CLS-210 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

Internal design

The internal structure of the CLS-210 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rear panel

The powder coated steel rear panel contains all connections and houses the CLS-210 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill

The CLS-210 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

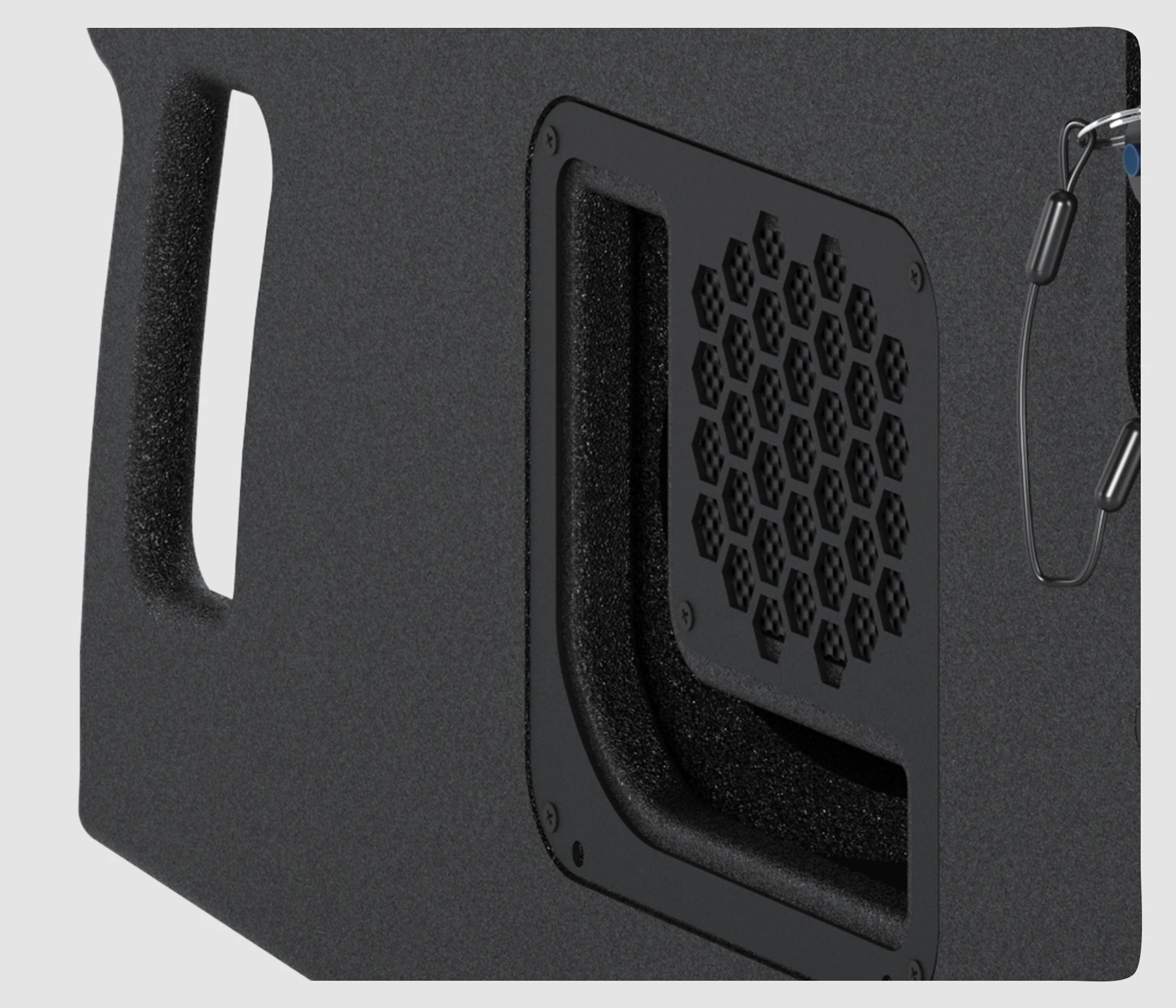

Handles

The CLS-210 has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets.  Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides.

Rigging

The 3 point rigging system with 2 front retractile levers and 1 centre/rear point enables up to 16 CLS-210 cabinets to be flown in a single array, with optional splay angles, from between 0º to 10º with 1º step increments to create the desired curve.

The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Transport

The CLS-210 is easy to transport thanks to its dedicated flight case where it can be stowed in rest position. With craddle option: no need to lock pins.

SV-CLS20

Flying frame for 16 CLS-212, CLS-210 or 10 CLS-121S.
Máx. 1000 Kg

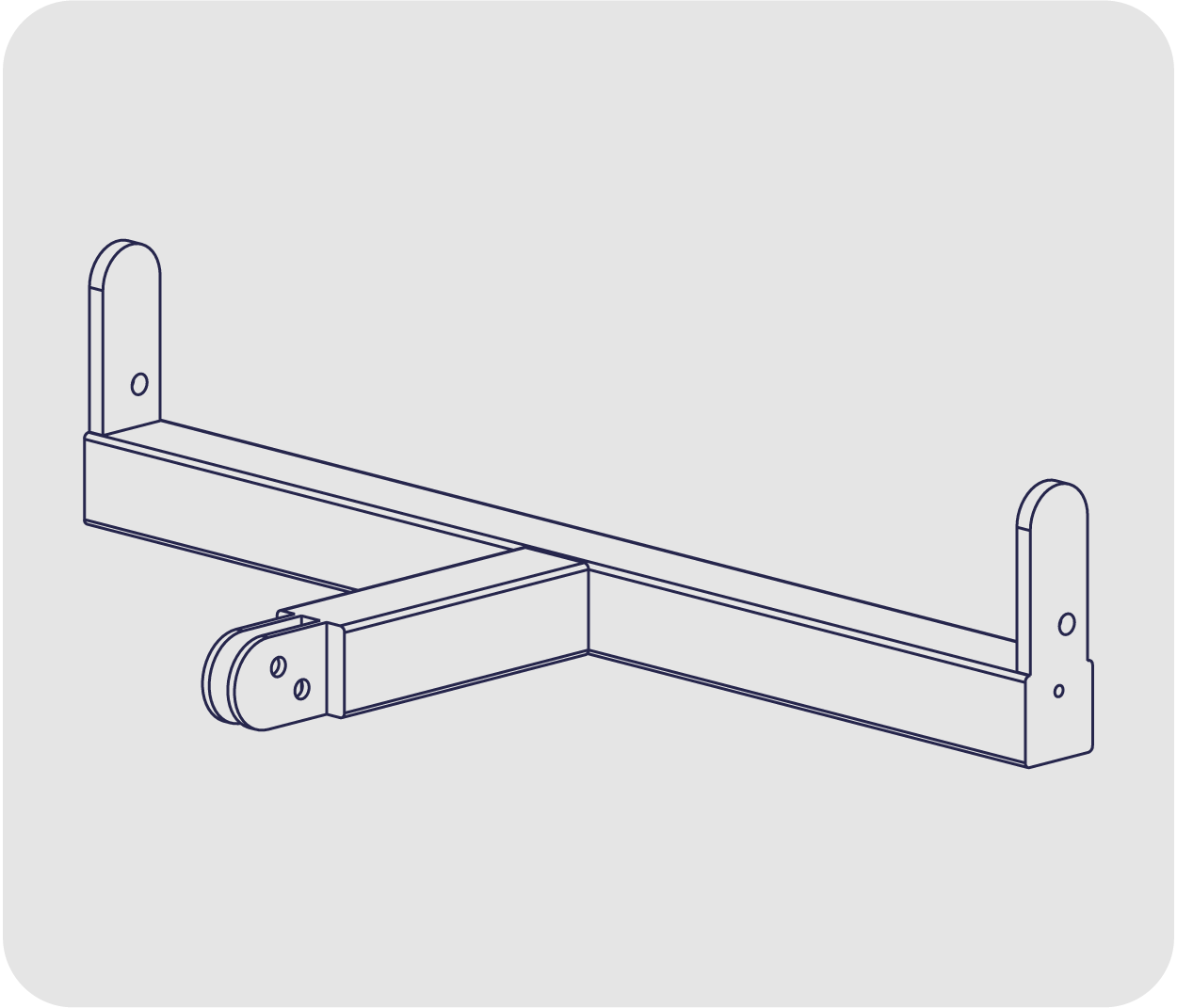

SC-CLS212/121

Connection system for CLS-212 or CLS-210 together with CLS-121S

ST-SVCLS/M20

Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

ST-CLS20KIT

4 x ground Stack stabilisers for SV-CLS20

FD-CLS210NL

Rain cover for CLS-210

FD-4CLS210

Nylon case for 4 CLS-210

FC-SVCLS20

Flight case to transport 2 SV-CLS20, cables and accessories

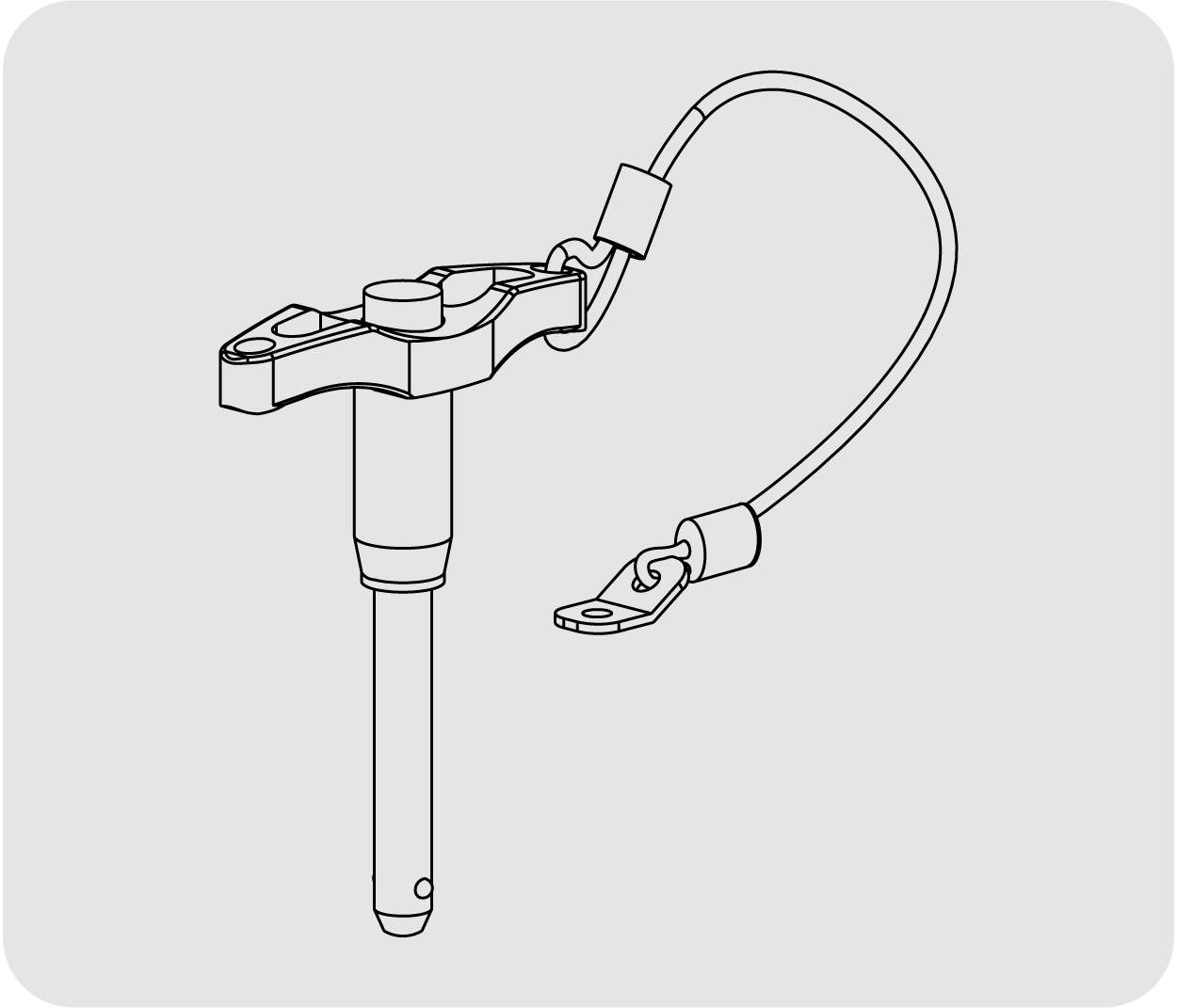

BALL-PSR0820R

Ball pin with thread for CLS-212/ CLS-210/CLS-28 /CLS-118S/ CLS-121S

CA-4CLS210

Dolly for 4 CLS210 units

DSP

DSP configuration

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

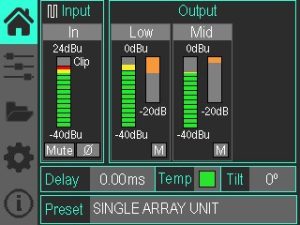

HOME

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

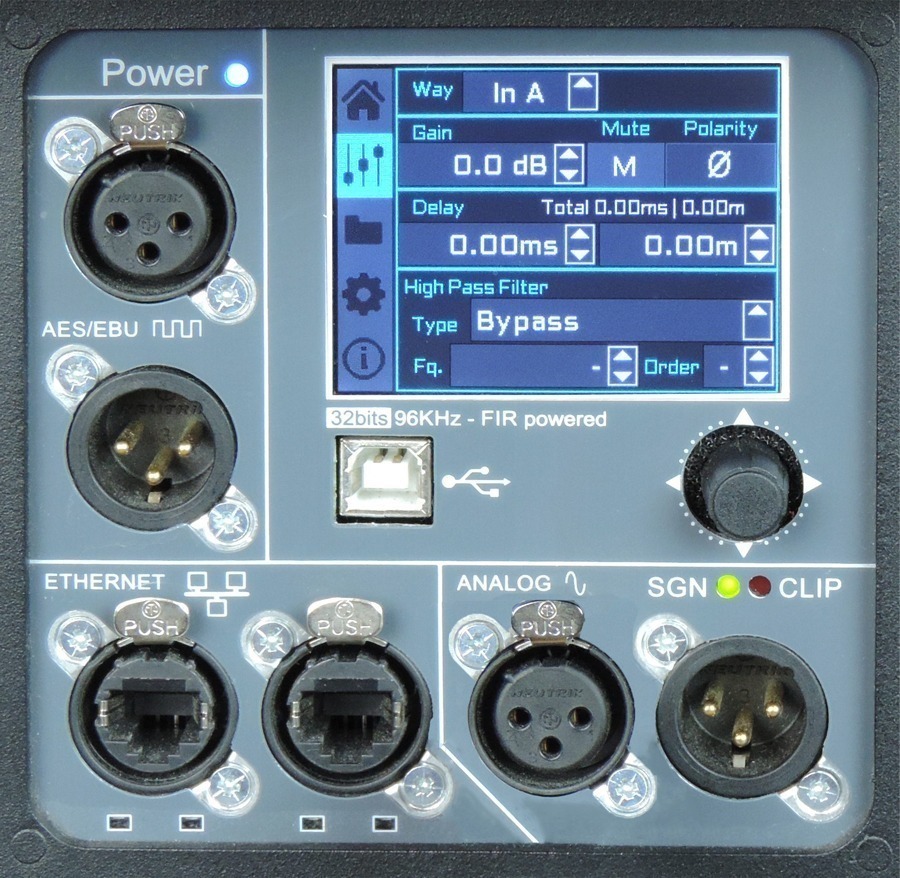

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

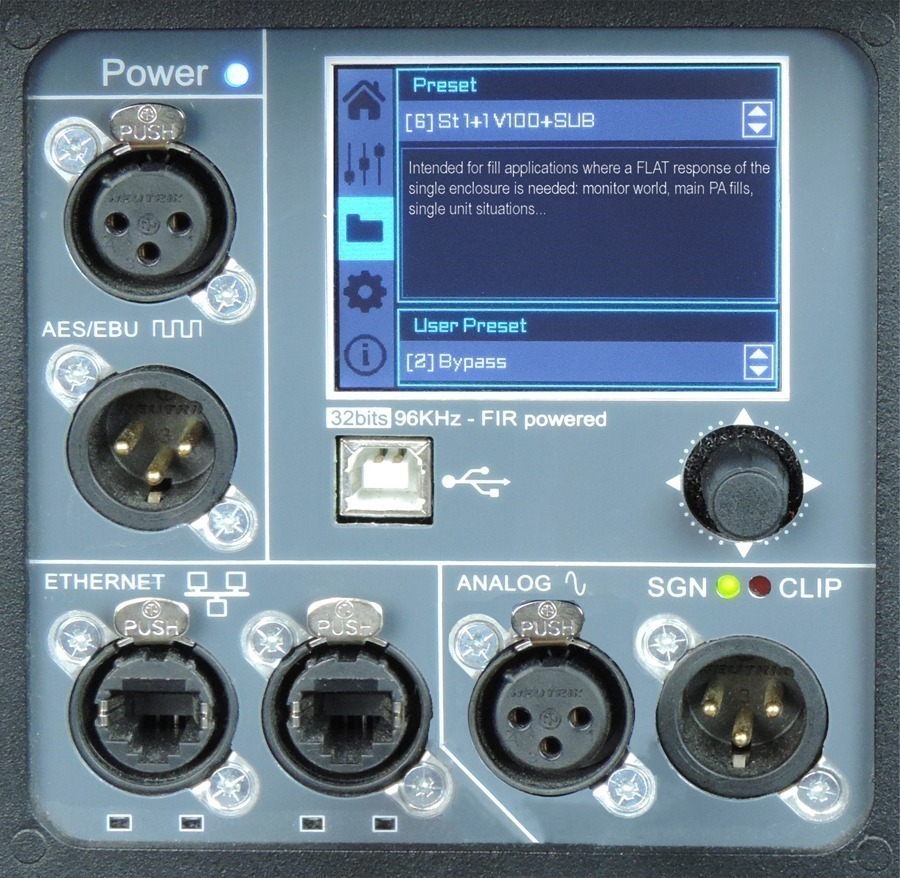

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

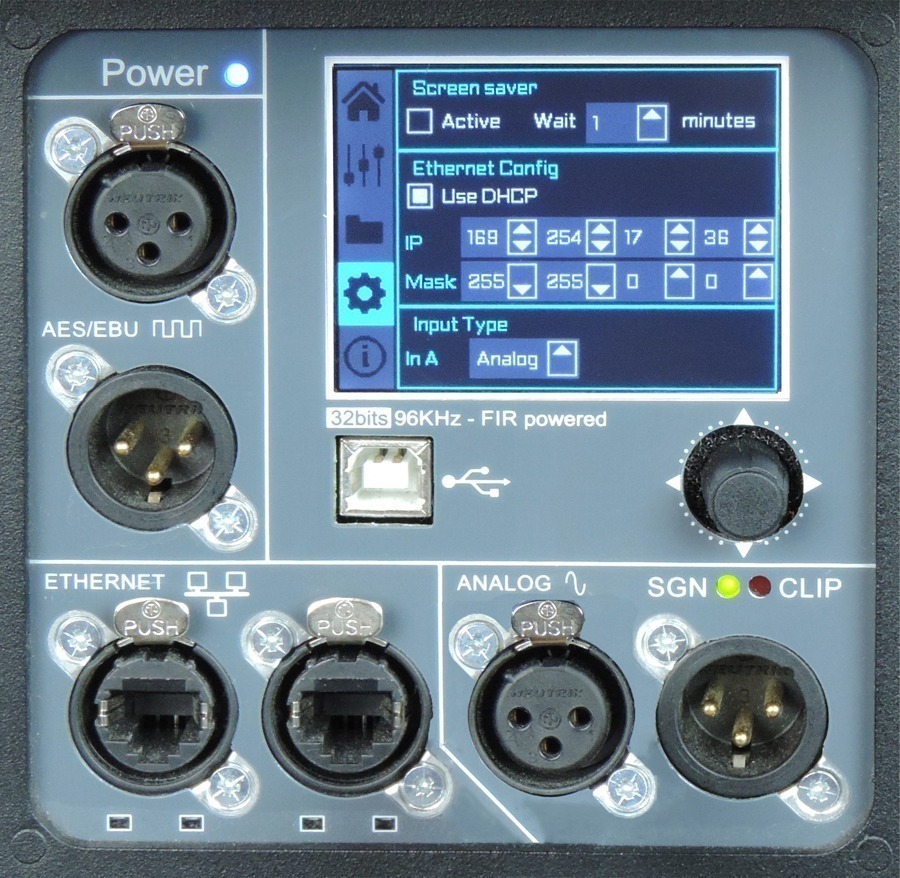

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

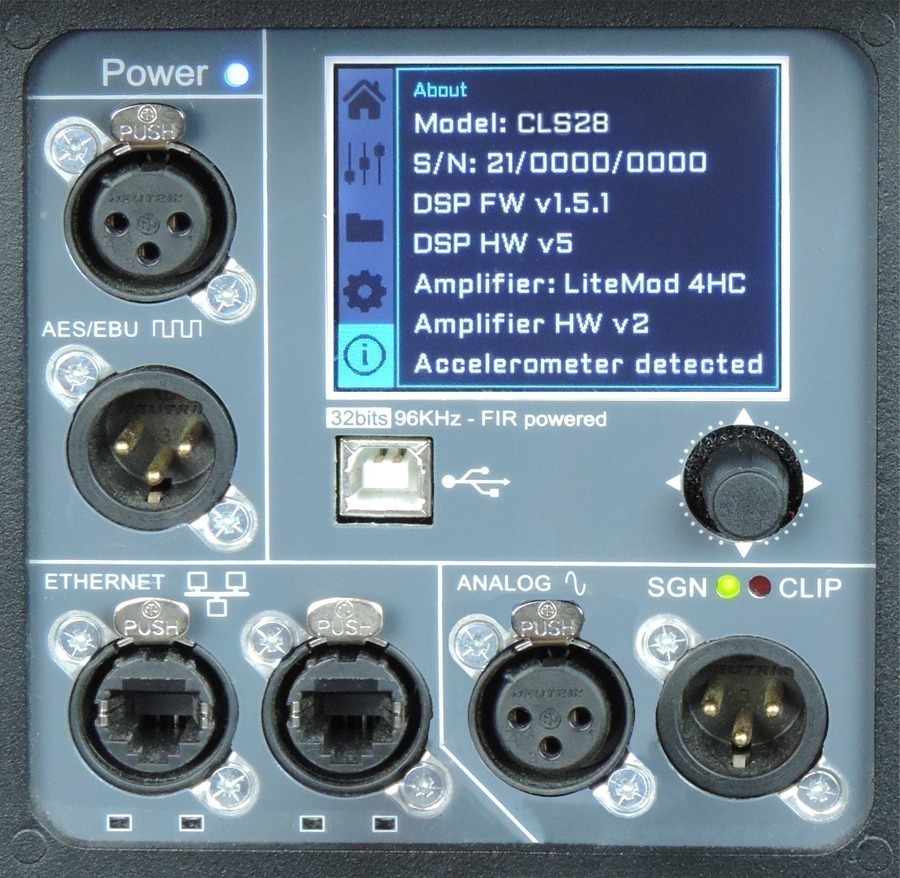

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch this TUTORIAL to understand how it works:
