GXR SERIES

Self-powered, portable speakers

The GXR Series is Lynx Pro Audio’s range of compact self-powered loudspeaker systems, designed to combine high output, portability and straightforward operation for professional sound reinforcement applications.

The series includes full-range loudspeakers, a line array system and dedicated subwoofers, providing flexible configurations for portable systems, live sound and fixed installations. Its compact formats make GXR a practical solution where performance, ease of deployment and efficient use of space are important.

The GXR-LA210A is a self-powered, bi-amplified two-way line array module with Class D amplification, designed to deliver high output from a compact enclosure. Dedicated subwoofer options extend the low-frequency response of the system and allow configurations to be adapted to different output and application requirements.

Designed with practical deployment in mind, the GXR Series incorporates dedicated rigging and system accessories to support efficient setup in both flown and ground-stacked configurations.

Suitable for:

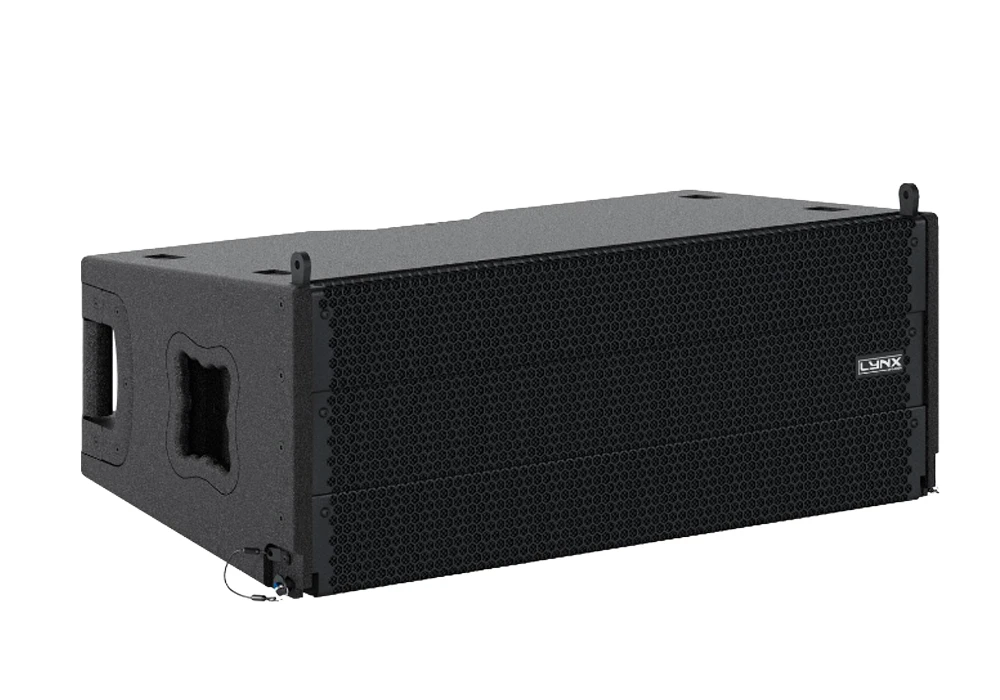

GXR-LA210A (Legacy)

2 x 10” transducers with driver 1.4″ + waveguide, 1400W, 135 dB SPL

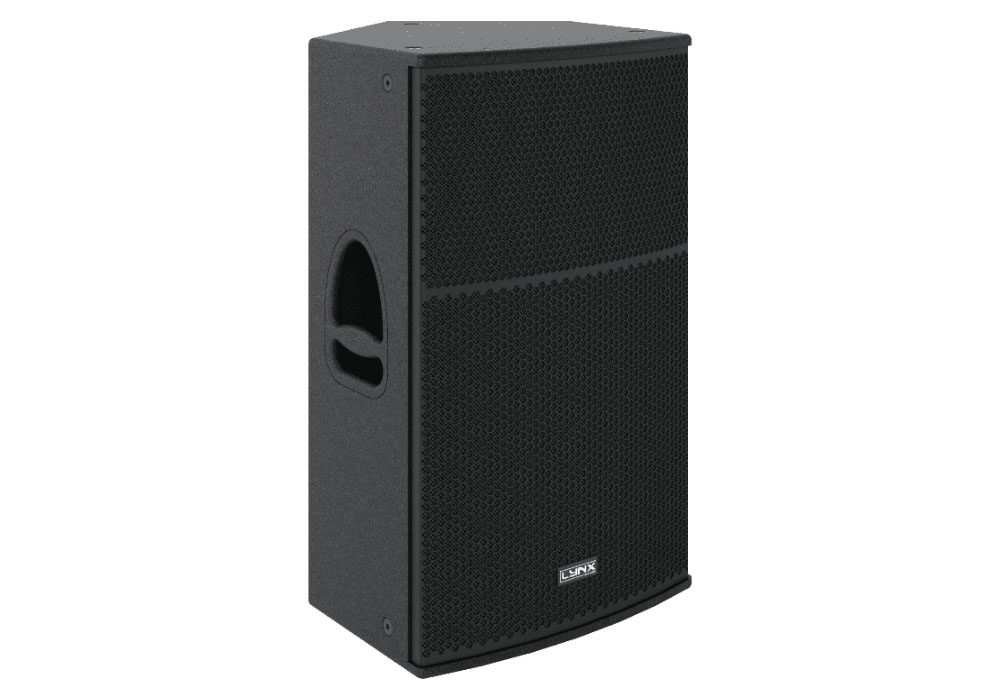

GXR-15 (Legacy)

1 x 15” transducer with a 1″ driver, 1400 W, 128 dB SPL

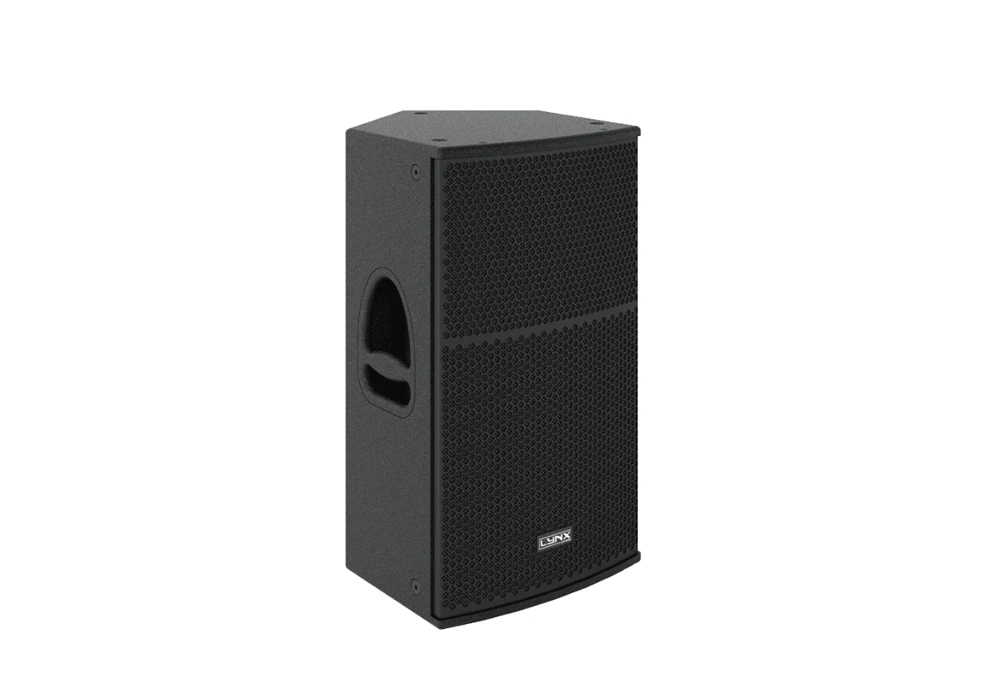

GXR-12 (Legacy)

1 x 12” transducer with a 1” driver, 1400W, 127 dB SPL

GXR-D18A (Legacy)

2 x 18” transducers, 3000 W, 135 dB SPL

GXR-D15A (Legacy)

2 x 15” transducers, 3000W, 134 dB SPL

GXR-18S (Legacy)

1 x 18” transducer, 132 dB SPL

Self-powered

All models are self-powered (Class D) with switching power supply and 1400W of amplification each. The integrated amplification far exceeds the transducers’ needs thus resulting in high output, high damping factor and extremely low levels of distortion. The high efficiency modules also include PFC, guaranteeing reliability and consistency in all operating conditions and low power consumption (less than 0.55W in standby).

Digital processing

All GXR Series cabinets are controlled by the latest generation of Digital Signal Processing with a DSP integrated in to each cabinet. This DSP, with 56bit internal processing and double dynamics optimizes all the system components and electronics, providing maximum system efficiency and total protection whilst significantly and noticeably lowering distortion. They also utilize linear phase FIR filters.
