CLS-28P

Biamplified coaxial line array

Extremely compact & powerful 3-way, biamplified coaxial line array element. Dual high power 8” neodymium transducers and a unique 8” dual diaphragm coaxial planar wave driver.

Description

The CLS-28P is a high-output extremely compact and extremely powerful 3-way biamplified symmetrical coaxial line source element designed for medium sized touring & fixed installations.

It uses two low distortion 8” (2.5” DUO copper voice coil) custom speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and waterproof cone.

For the mid/high frequencies it uses an ultra light 8” dual diaphragm coaxial planar wave driver. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.

The larger annular midrange diaphragm covers the frequency range between 550Hz and 6.3KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 6.3KHz to 22Khz. With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference. Thanks to the mid range’s extended low bandwith (550Hz) the CLS-28P is able to deliver an unmatched 100º horizontal constant directivity coverage pattern.

Depending on the configuration, the system is amplified with the GTX Series4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.

Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking AES67 and AES3 Digital inputs are also available.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection. It also has a number of dedicated accessories available and the 3 point rigging system which includes 2 front automatically rising plates and 1 centre/rear point enables 16 CLS-28P cabinets to be flown in a single array. The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Key features

Extraordinary power-to-size ratio

Unique 8” dual diaphragm planar wave driver

Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence

Extended bandwith (55 Hz – 22 KHz)

 Perfect Time Alignment avoiding Multi-Source Interference problems

Ergonomic design in premium birch plywood & finished in polyurea

N

Perfectly suited for:

→  Touring and fixed installations
→  Sports stadiums
→  Houses of worship
→  Club installations
→  Theatres
→  Concert halls and auditoriums
→  Downfill for CLS-212P

Technical Data



Components
LF: 2 x 8″ (2.5″ DUO double layer in/out copper voice coil), waterproof cone treated on both sides, neodymium magnet. 1000 W AES
MF/HF: 8″ dual diaphragm coaxial planar wave driver

-Mid: 3.5″ (90 mm) voice coil, 150 W (AES)
-High: 1.5″ (44.4 mm) voice coil, 80 W (AES)

Frequency Range55 Hz – 22 KHz (-10dB)
Frequency response
65 Hz – 20 KHz (± 6dB)
ImpedanceLow Section: 8 Ω
Mid/High Section: 16 Ω
Sensitivity
LF: 100 dB, MF/HF: 112 dB
Max SPL / Peak

LF: 130 dB / 136 dB

MF/HF: 135 dB / 143 dB

Power
Bi- Amp LF: 1000W (2000W program, 4000W peak)
Bi-Amp MF/HF: 150W ( 300W program, 1000W peak)
Horizontal coverage110º (-10 dB), 100º (-6 dB)
Vertical coverage
Single element 10º
CrossoverLow/Mid 550 Hz
Mid/High 6300 Hz
Connectors
2 x Neutrik Speakon NL4MP
FinishBlack Polyurea coating, high grade resistant paint. other colours (RAL) available
Material
15 mm Premium birch plywood

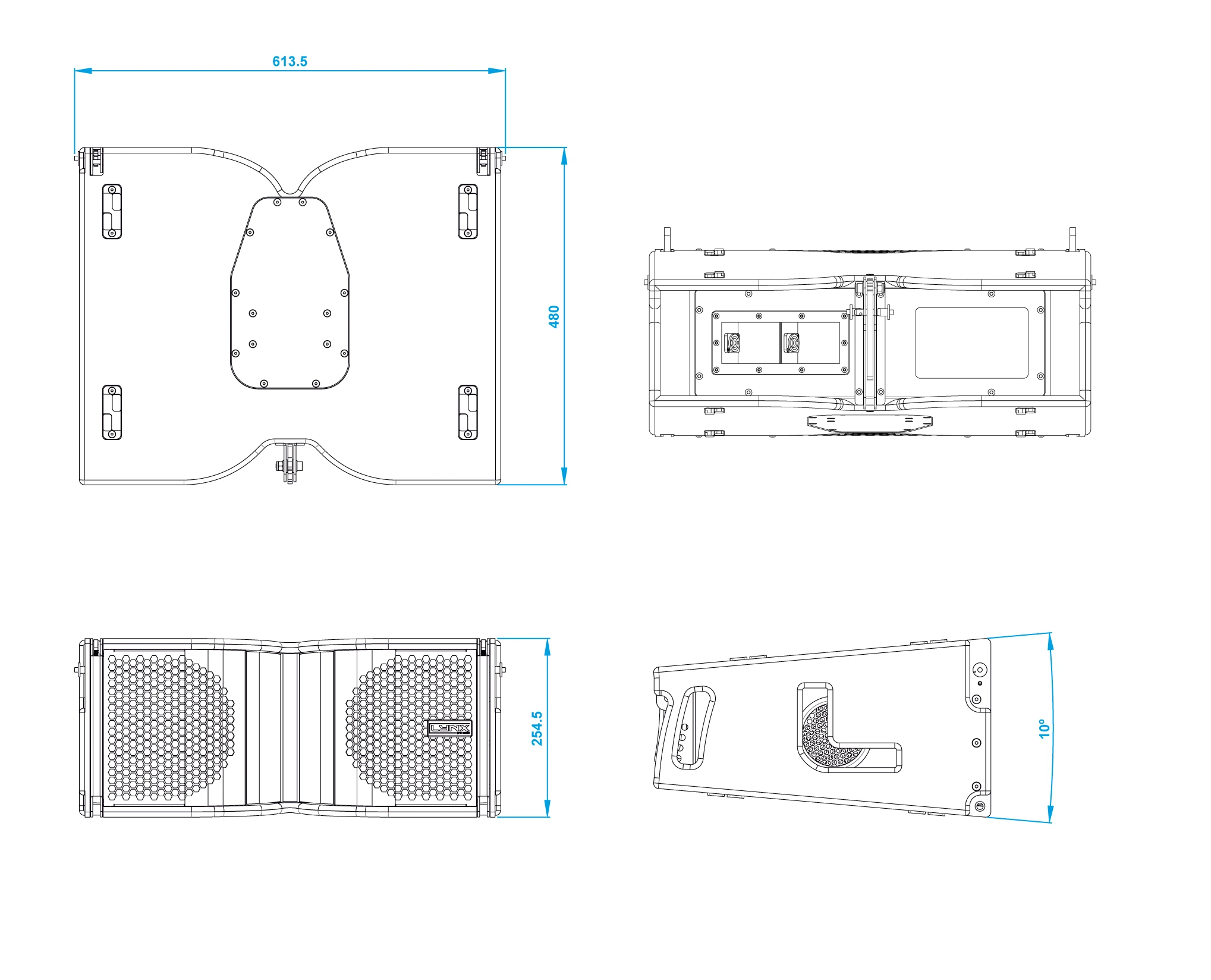

Dimmensions254.5 x 600 x 480 mm (H x W x D) / with pins 613.5 mm (W)
Weight
25 Kg (55 lbs)

Calculated maximum SPL basen on rated peak power and measured sensitivity.

More features

Hardware for CLS-28P
Enclousure-v12
Enclosure

The CLS-28 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

Internal design

The internal structure of the CLS-28 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rear panel

The powder coated steel rear panel contains all connections and houses the CLS-28 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill

The CLS-28 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

The CLS-28 has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets.  Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides.

Rigging

The 3 point rigging system with 2 front retractile levers and 1 centre/rear point enables up to 16 CLS-28 cabinets to be flown in a single array, with optional splay angles, from between 0º to 10º with 1º step increments to create the desired curve.

The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Transport

The CLS-28 is easy to transport thanks to its dedicated flight case where it can be stowed in rest position. With craddle option: no need to lock pins.

Accessories for CLS-28P

SV-CLS10

Flying frame for 16 CLS-28 or CLS-118S.
Máx. 600 Kg

SV-CLS10 Lite
Flying frame for 16 CLS-28.
Máx. 600 Kg
SC-CLS28/118S
Connection system for CLS-28 together with CLS-118S

SC-CLS212/28
Connection system for CLS-212 together with CLS-28



ST-SVCLS/M20
Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

ST-CLSKIT

4 x ground stack stabilisers for SV-CLS10

Rain-CoverFD-CLS28
Rain cover for CLS-28
FC-GXR15X2FC-4CLS28
Flight case to transport 4 CLS-28
FC-GXR15X2FC-SVCLS10
Flight case to transport 2 SV-CLS10, cables and accessories
BALL-PSRBALL-PSR0820
Ball pin with thread for CLS-28 cabinet and CLS-118S
