CLS-210P
Biamplified coaxial line array

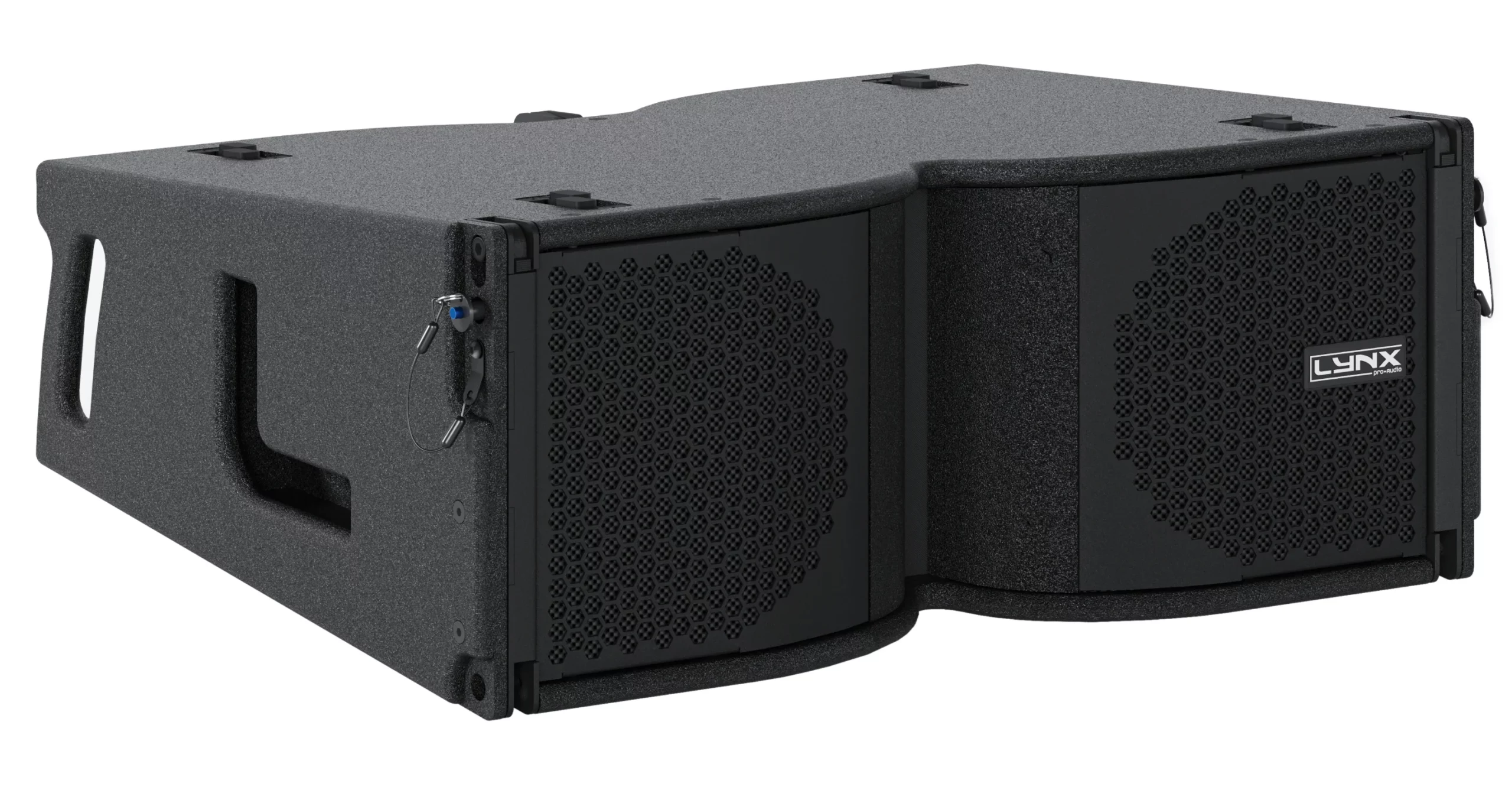

Extremely compact & powerful 3-way, biamplified coaxial line array element. Dual high power 10” neodymium transducers and a unique 10” dual diaphragm coaxial planar wave driver.
Description
The CLS-210P is a high-output extremely compact and extremely powerful 3-way biamplified symmetrical coaxial line source element designed for medium sized touring & fixed installations.
It uses two low distortion 10” (DUAL 88mm (3,5”) voice coil) custom speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, single demodulating ring and waterproof cone.
For the mid/high frequencies it uses an ultra light 10” dual diaphragm coaxial planar wave driver. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.
The larger annular midrange diaphragm covers the frequency range between 550Hz and 6.3KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 6.3KHz to 22Khz. With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference. Thanks to the mid range’s extended low bandwith (550Hz) the CLS-210P is able to deliver an unmatched 100º horizontal constant directivity coverage pattern.
Depending on the configuration, the system is amplified with the GTX Series, 4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.
Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking AES67 and AES3 Digital inputs are also available.
The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection. It also has a number of dedicated accessories available and the 3 point rigging system which includes 2 front automatically rising plates and 1 centre/rear point enables 16 CLS-210P cabinets to be flown in a single array. The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.
Key features
|
• Extraordinary power-to-size ratio |
|
• Unique 10” dual diaphragm planar wave driver |
|
•Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence |
|
• Extended bandwith (55 Hz – 22 KHz) |
|
• Perfect Time Alignment avoiding Multi-Source Interference problems |
|
• Ergonomic design in premium birch plywood & finished in polyurea |
Perfectly suited for:
| → Touring and fixed installations |
| → Sports stadiums |
| → Houses of worship |
| → Club installations |
| → Theatres |
| → Concert halls and auditoriums |
| → Downfill for CLS-212P |
Technical Data
Components |
LF: 2 x 10” (DUAL 88mm (3,5”) voice coil), waterproof cone treated on both sides, neodymium magnet, 1600W (AES) |
MF/HF: 10″ dual diaphragm coaxial planar wave driver-Mid: 3.5″ (90 mm) voice coil, 150 W (AES) |
|
| Frequency Range | 55 Hz – 22 KHz (-10dB) |
Frequency response |
65 Hz – 20 KHz (± 6dB) |
| Impedance | Low Section: 8 Ω Mid/High Section: 16 Ω |
Sensitivity |
LF: 102 dB, MF/HF: 112 dB |
| Max SPL / Peak |
LF: 134 dB / 140 dB MF/HF: 135 dB / 143 dB |
Power |
Bi- Amp LF: 1600W (3200W program, 6400W peak)
|
| Horizontal coverage | 110º (-10 dB), 100º (-6 dB) |
Vertical coverage |
Single element 10º |
| Crossover | Low/Mid 550 Hz Mid/High 6300 Hz |
Connectors |
2 x Neutrik Speakon NL4MP |
| Finish | Black Polyurea coating, high grade resistant paint. other colours (RAL) available |
Material |
15 mm Premium birch plywood |

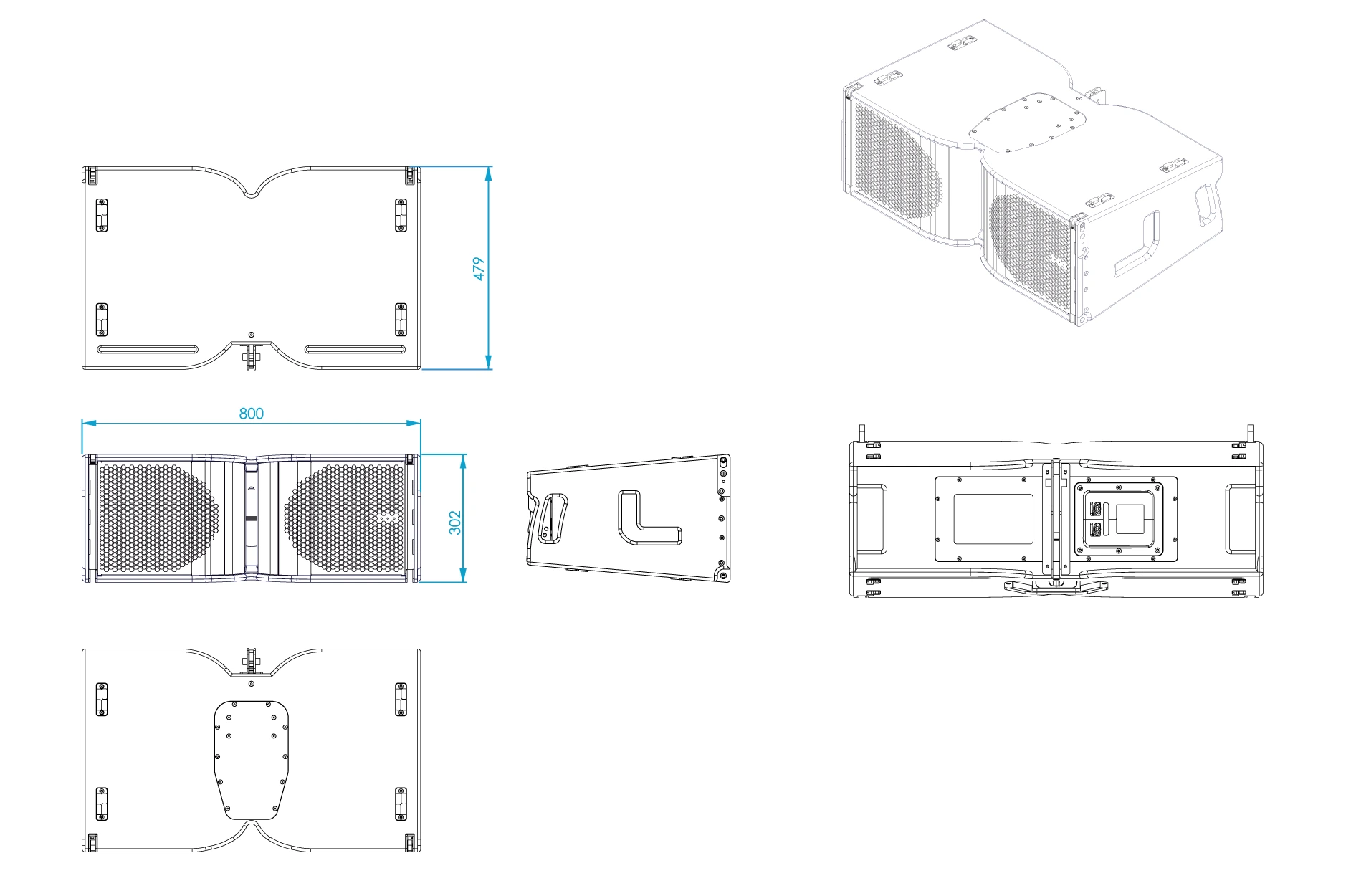

| Dimmensions | 302 x 800 x 479mm |
Weight |
33 Kg |
Calculated maximum SPL basen on rated peak power and measured sensitivity.
More features
Hardware for CLS-210P
 |
EnclosureThe CLS-210P cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating |
 |
Internal designThe internal structure of the CLS-210P is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability. |
 |
Rear panelThe powder coated steel rear panel contains all connections and houses the CLS-210P amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency |
 |
GrillThe CLS-210P has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt. |
 |
HandlesThe CLS-210P has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets. Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides. |
 |
RiggingThe 3 point rigging system with 2 front retractile levers and 1 centre/rear point enables up to 16 CLS-210P cabinets to be flown in a single array, with optional splay angles, from between 0º to 10º with 1º step increments to create the desired curve. The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually. |
 |
TransportThe CLS-210P is easy to transport thanks to its dedicated flight case where it can be stowed in rest position. With craddle option: no need to lock pins. |
Accessories for CLS-210P
 |
SV-CLS10 Flying frame for 16 CLS-210P or 8 CLS-118S. |
 |
SC-CLS210/118S Connection system for CLS-210P together with CLS-118S |
 |
SC-CLS212/28 Connection system for CLS-212 o CLS-210 together with CLS-28 |
 |
ST-SVCLS/M20 Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate |
 |
ST-CLS10KIT 4 x ground stack stabilisers for SV-CLS10 |
 |
FD-CLS28NL Rain cover for CLS-210P |
 |
FC-4CLS28 Flight case to transport 4 CLS-210P |
|
FC-SVCLS10 Flight case to transport 2 SV-CLS10, cables and accessories |
 |
BALL-PSR0820R Ball pin with thread for CLS-210P cabinet and CLS-118S |
 |
POWERRACK10 Transport rack 10 units |
