WCX-8
Compact & versatile, easy to use, easy to install speaker. 8” coaxial speaker offering a coverage of 70º conical dispersion and 126 dB SPL.
The WCX-8 is a two-way coaxial speaker part of the WCX series. The WCX-8 is a compact, modular and powerful cabinet designed for outdoor applicatios. Line transformer optional.
This is a weather resistant speaker, designed to withstand harder weather conditions, where the cabinets are exposed to the elements.
The WCX-8 uses a 8” coaxial speaker (2.5” LF voice coil and 1.75” HF voice coil) offering a coverage of 70º conical dispersion and 126 dB SPL (600 W program).
Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport. It can also be powered from an external amplifier using the ARK optimised preset.
The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.
The WCX-8 has a stainless steel 1 mm grill also available in aluminum with protective layer and micro textured paint and a weatherstrip edging for extreme protection.
This enclosure has an acoustex filter, a hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions. Also, 35 ppi Acoustic foam to protect against dust particles, M8 stainless steel 316 L screws and a waterproof protected cone on both sides.
An aluminum back plate with pressure gland is included for an extra tight connection and easy installation.
Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.
Perfectly suited for:
- PA system
- Public address
- Convention centers
- Houses of worship
- Background music
- Commercial complex
- Compact Two-Way Coaxial Design: Weather-resistant loudspeaker featuring an 8″ coaxial driver with a 2.5″ LF voice coil and a 1.75″ HF voice coil, designed for indoor and outdoor applications.
- Acoustic Performance: 300 W AES power handling (600 W program), 95 dB sensitivity and a maximum SPL of 120 dB continuous / 126 dB peak.
- Controlled Coverage: 70° conical dispersion for consistent sound distribution across the listening area.
- Weather-Resistant Construction: 15 mm premium birch plywood enclosure with a durable polyurea coating, stainless steel grille, hydrophobic protection and waterproof-treated cone.
- Flexible Installation: 8 Ω nominal impedance, optional 100 V line transformer with selectable 200 W / 100 W / 50 W taps, and ARK-optimised presets for external amplification.
- Compact and Versatile: 265 × 265 × 265 mm enclosure, weighing 10 kg, with optional wall-mounting bracket and custom RAL colours available on request.
1 x 8″ coaxial speaker with LF 2.5″ and HF 1.75″ voice coil
70 Hz – 17 KHz (-10dB)
100 Hz – 18 KHz (± 3dB)
120 dB – 126 dB peak
95 dB (1w @ 1m)
70º conical dispersion
300 W AES (600 W program, 1200 peak)
8 Ω
- In: Euroblock terminal
- Out: Cable gland
15 mm premium birch plywood
Polyurea coating (RAL 7038)
265 x 265 x 265 mm (H x W x D)
10 Kg (22 lbs)
More features
Hardware for WCX-8
Accesories for WCX-8

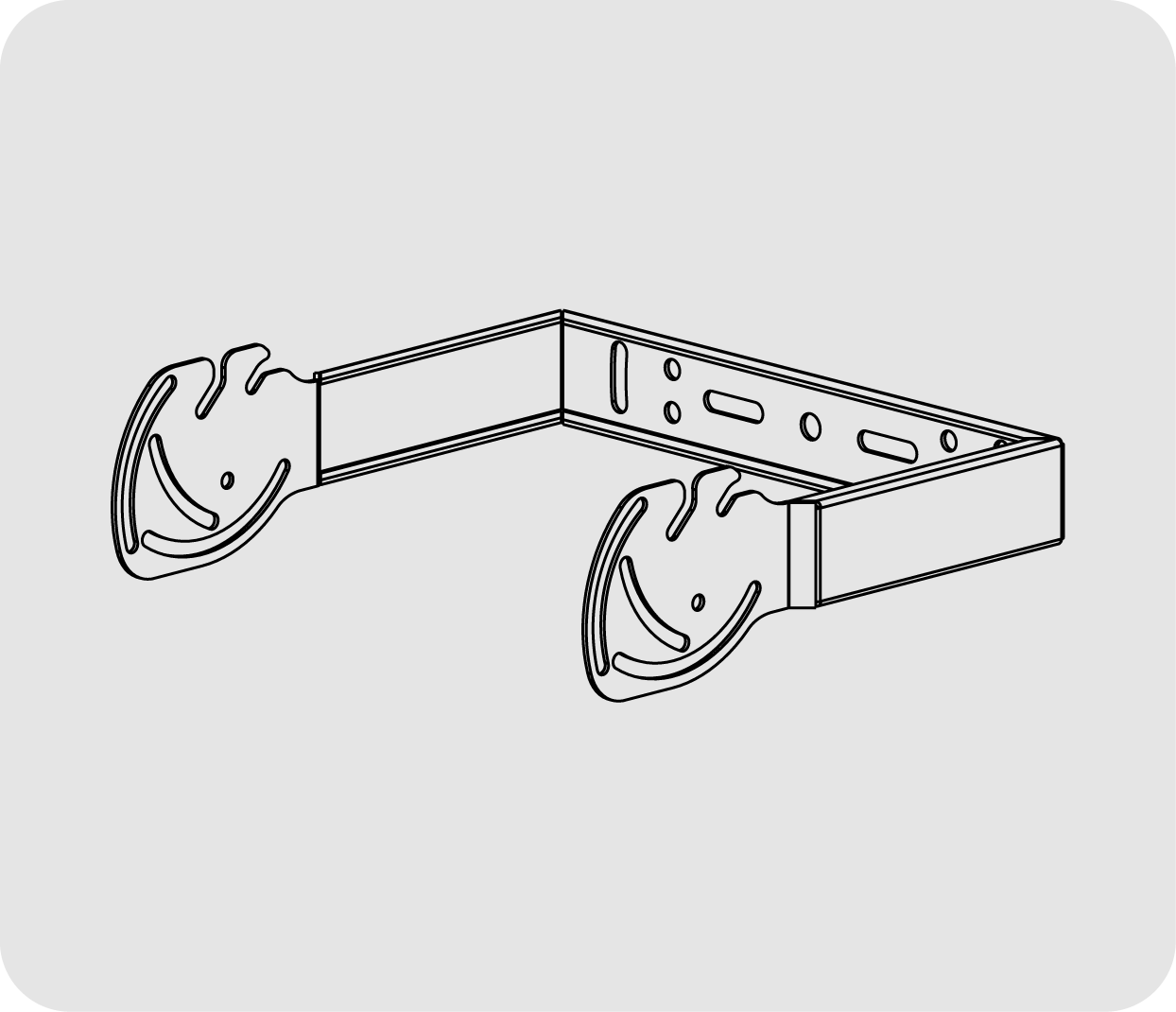

UBR-WCX8
Wall bracket for the WCX-8
Weather-resistant version
Our Weather-resistant version speakers are designed to withstand harder weather conditions, where the cabinets are exposed to the elements.
Colours:
- Black polyurea coating with microtextured metal parts.
- RAL available on request. Polyurea coating with aliphatic colour paint.
1. Anodized aluminium logo for durability outdoors.
2. Stainless steel 1 mm 316 L grill. Also available in aluminum with protective layer and micro textured paint.
3. Weatherstrip edging for extreme protection.
4. Acoustex filter: hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions.
5. 35 ppi Acoustic foam to protect against dust particles.
6. Waterproof protected cone on both sides
7. Aluminum back plate with pressure gland for an extra tight connection and easy installation.
8. M10 stainless steel 316 L screws (A4).
The WCX-8 is a weather resistant speaker specifically designed to withstand extreme outdoor conditions:
– Double Polyurea coating: Premium birch plywood finished for maximum durability.
– Acoustex filter: Hydrophobic polyester sheet to prevent water and element penetration.
– Dual-side cone protection: Waterproof treated cone on both sides with 35 ppi acoustic foam.
– Marine-grade hardware: All external screws made of Stainless Steel 316L.
– Stainless steel grill: 1 mm grill with protective layer and weatherstrip edging.
– Connection system: Aluminum back plate with pressure gland for an extra tight seal.
