CXA-18SP

Powered compact subwoofer for CXA-18SP

High output, passive, omni-directional subwoofer cabinet. 18” (4” ventilated voice coil) neodymium transducer. 132dB SPL (2400W Program).

The CXA-18SP is a dedicated, high-output passive subwoofer cabinet, delivering an impressive and reliable omni-directional sub-bass performance.

This unit is specifically engineered to function as the ideal low-frequency reinforcement enclosure for the CXA-12P line array elements, guaranteeing meticulous system coherence.

The engine of the CXA-18SP is a powerful 18-inch (18”) neodymium transducer which boasts a robust 4-inch (4”) ventilated voice coil for superior heat dissipation and maximum power handling. This ensures the system maintains its integrity whilst achieving a formidable maximum output of 132 dB SPL, backed by a substantial 2400W Program rating, making it perfectly suited for the most rigorous professional audio demands.

Perfectly suited for:

Live PA
Clubs
Theatres
Houses of worship
Fixed installations
Touring

Power Handling: High-output passive subwoofer with 2400W Program and 4800W Peak power.
Premium Transducer: Features an 18″ neodymium driver with a 4″ ventilated voice coil.
Acoustic Performance: 132 dB Max SPL with an omnidirectional coverage pattern.
Frequency Response: Operating range from 30 Hz to 140 Hz (-10dB).
Rugged Construction: Built from 15 mm premium birch plywood finished in high-resistance polyurea.
Rigging Versatility: Integrated flying points for stacking or flying with CXA-12P cabinets.

Components

LF: 18″, 4″ voice coil, Neodymiun magnet assembly

Frequency Range

30 Hz – 140 Hz (-10dB)

Frequency Response

35 Hz – 125 Hz (± 3dB)

Max SPL

132 dB

Coverage

Omnidirectional

AES power

1200 W

Program power

2400 W

Peak power

4800 W

Nominal impedance

8 Ω

Sensitivity

98 dB

Connectors

2x Neutrik NL4-MP

Flyware

Built-in flying points

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Dimensions

556 x 632 x 696 mm (H x W x D)

Weight

44 Kg (97 lbs)

More features

Hardware for CXA-18SP

Enclosure

The CXA-18SP cabinet is constructed from 15-ply premium birch plywood and finished with polyurea coating.

Internal design

The internal structure of the CXA-18SP is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

Grill

The CXA-18SP has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

One ergonomic, die cast handle with firm internal grips is located on each side of the CXA-18SP enclosure to facilitate transport, positioning and loading of the cabinets.

Rigging

Integrated flying plates are located on each side of the enclosure, to link the CXA-18SP cabinets together or with the CXA-12P cabinets.

Accesories for CXA-18SP

BALL-PSR0630

Ball pin with thread for CXA-12 and CXA-18SP cabinets

SV-CXA

Flying frame for the CXA-18SP with a capacity for rigging of up to 4 cabinets

GR-18WKIT

Four wheel kit

FD-CXA18S

Nylon protection for CXA-18SP

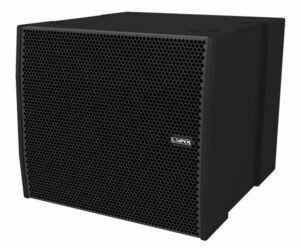

Install version

CXA-18SPIN

The CXA-18SPIN is the install version of the CXA-18SP cabinet. This version is specially designed for fixed installations.

Flying frame SV-CXAIN is an unique accessory for this version, it allows you to choose between three different positions to change the array’s inclination in a more easier way.

Further details are available in the CXA-18SP user manual.

CXA-18SPIN datasheet
