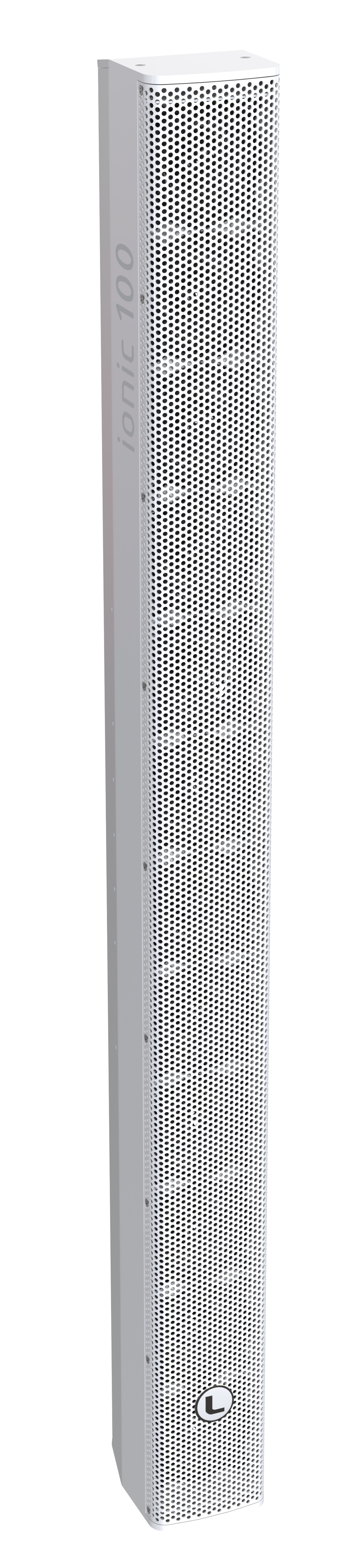

Ionic 100/OD

Smart & slim column speaker

Ultra-compact, passive column speaker with 12 x 3″ (0.75″ voice coil) neodymium transducers. 15º +/ -5º vertical coverage. 121dB SPL.

The Ionic-100/OD is ideal for outdoor installations thanks to its special treatment.

The Ionic-100/OD is a passive column speaker part of the Ionic series. The Ionic columns are compact, modular and powerful and the complete series includes two columns & two subwoofers. The Ionic-100 uses 12 x 3″ (0.75″ voice coil) neodymium transducers offering a coverage of 15º +/-5º V x 100º H and 121dB SPL.

Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.

The Ionic-100/OD is the ideal column speaker for outdoor installations. The cabinets receive the following treatment so that they can be installed in outside locations: micro perforated aluminium grill with special polyester protection against water, tropicalized speaker treatment with special latex covering and double cabinet sealing.

The Ionic-100/OD is powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

  •  PA system
  • Clubs & Theatres
  • Houses of Worship
  • Solo artists, band, DJ
  • Public buildings
  • Commercial complex
  • The Ionic-100/OD is a slim passive column for fixed installations and portable applications.
  • Twelve 3″ neodymium transducers provide 100° horizontal and 15° ± 5° vertical coverage.
  • Outdoor protection includes a micro-perforated aluminium grille with a polyester water barrier, latex-treated speakers and double cabinet sealing.
  • The stainless-steel enclosure has an epoxy paint finish and is available in black or white.
  • Compatible Ionic subwoofers provide amplification and DSP presets for different sound applications.









Components

12 x 3″ speaker with 0.75″ voice coil

Frequency Range

150 Hz – 20 KHz (-10dB)

Frequency Response

180 Hz – 18 KHz (± 3dB)

Sensitivity

96 dB (1W@1m)

Max SPL

121 dB – 127 dB Peak

Coverage

15º ± 5º V x 100º H

Power

300 W AES (600 W program, 1200 W peak)

Nominal Impedance

8 Ω

Connectors

2 x Neutrik Speakon NL4

Finish

Epoxy paint / bespoke pattern

Material

1.5 mm stainless steel

Dimensions

1000 x 89 x 117 mm (H x W x D)

Weight

13 Kg (29 lbs)











More features

Hardware for Ionic 100/OD

Enclosure

The column enclosure is constructed from 1.5mm stainless steel plate and finished with high resistant epoxy paint. Double cabin

Internal design

The steel structure of the column is welded and perfectly sealed with a polymer coating forming an air-tight housing. All parts are assembled on metal inserts with metric screws. Tropicalized speaker treatment with special latex covering.

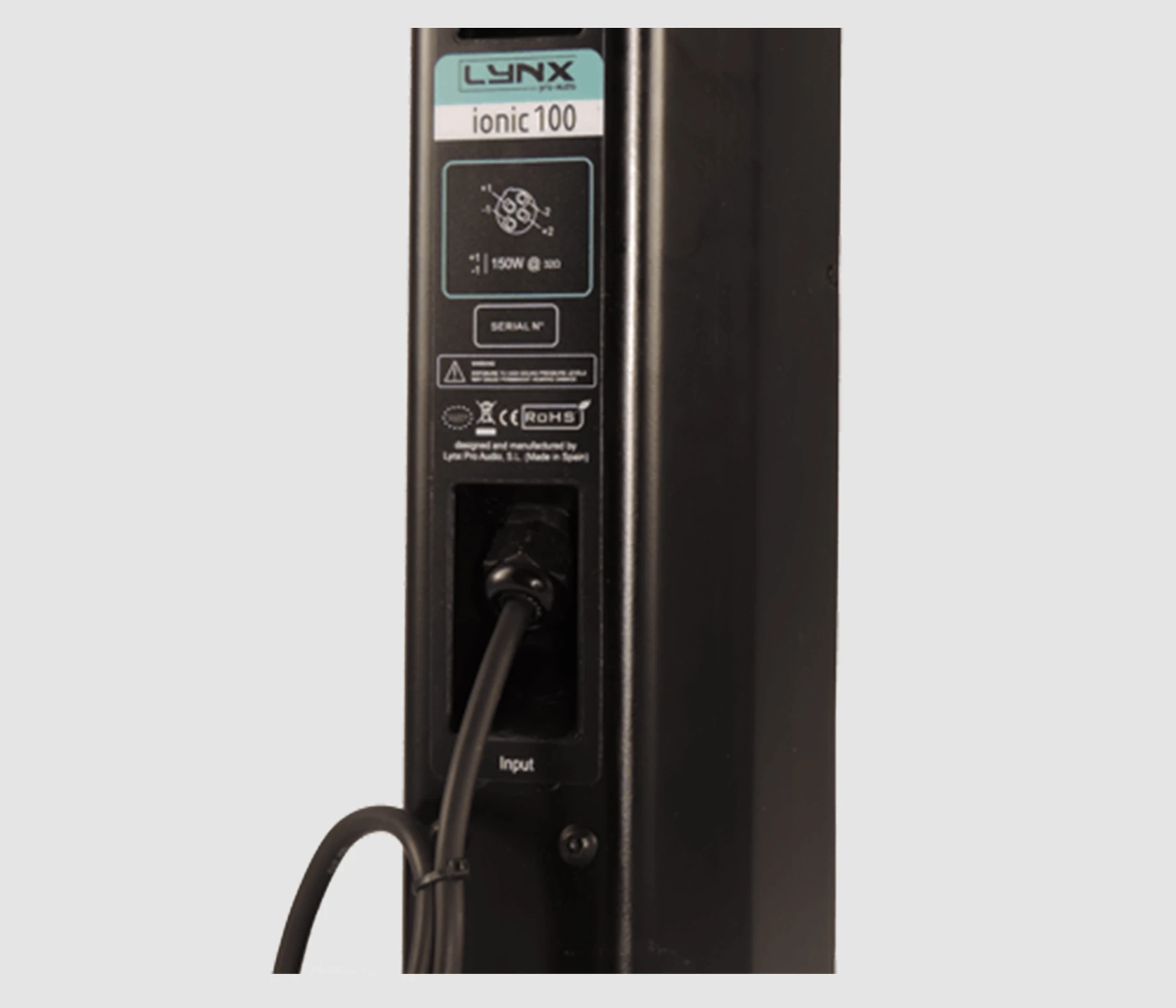

Rear panel

A compact rear panel contains the input and link connectors.

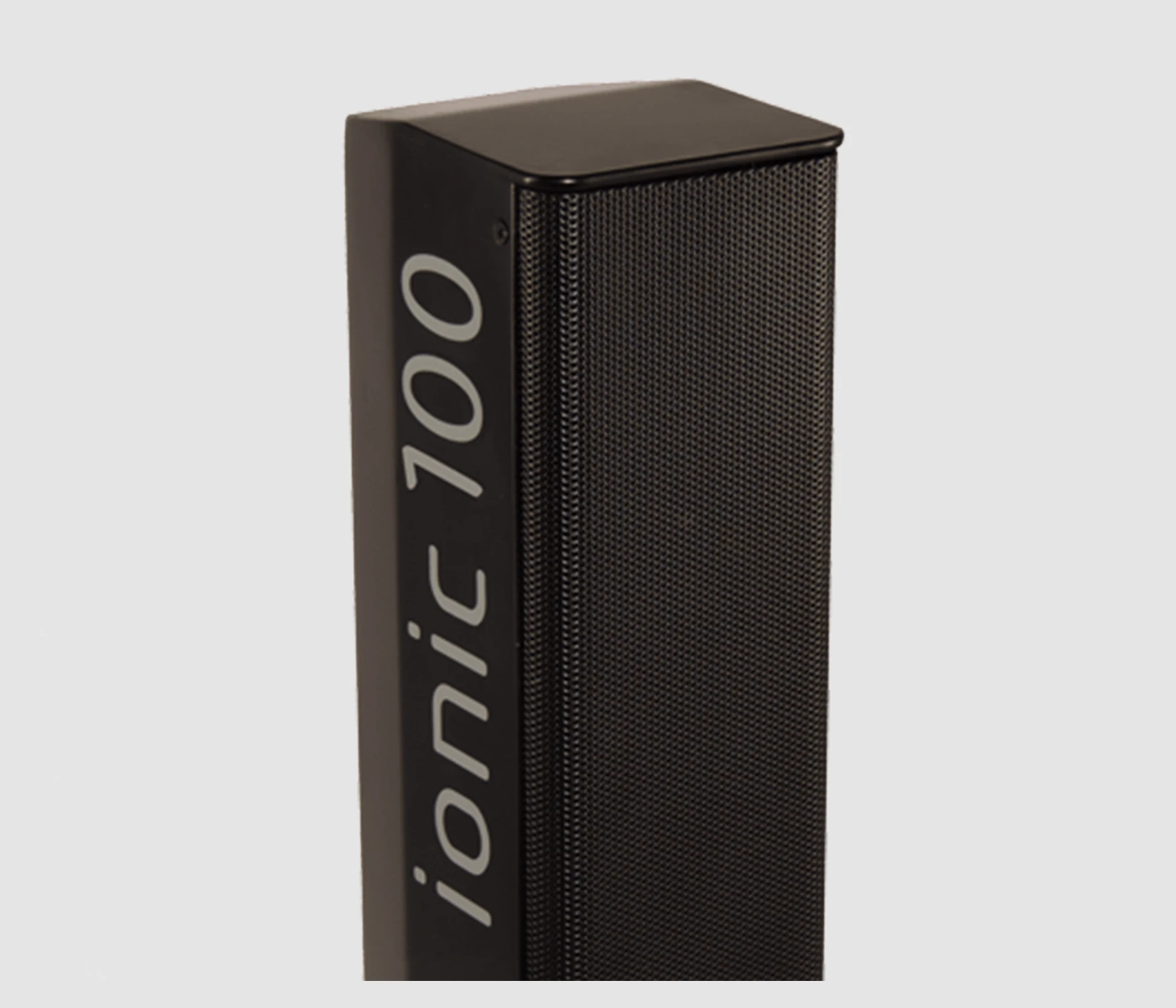

Grill

Micro perforated aluminium grill with special polyester protection against water.

Rigging

Integrated reinforcement plates are located inside the column so different installation accessories can be mounted using the external installation kit fixing points.

Transport

A durable flight case is available to transport two Ionic-100/OD including cables and hardware.

SV-23

Piece to connect columns to wall or truss

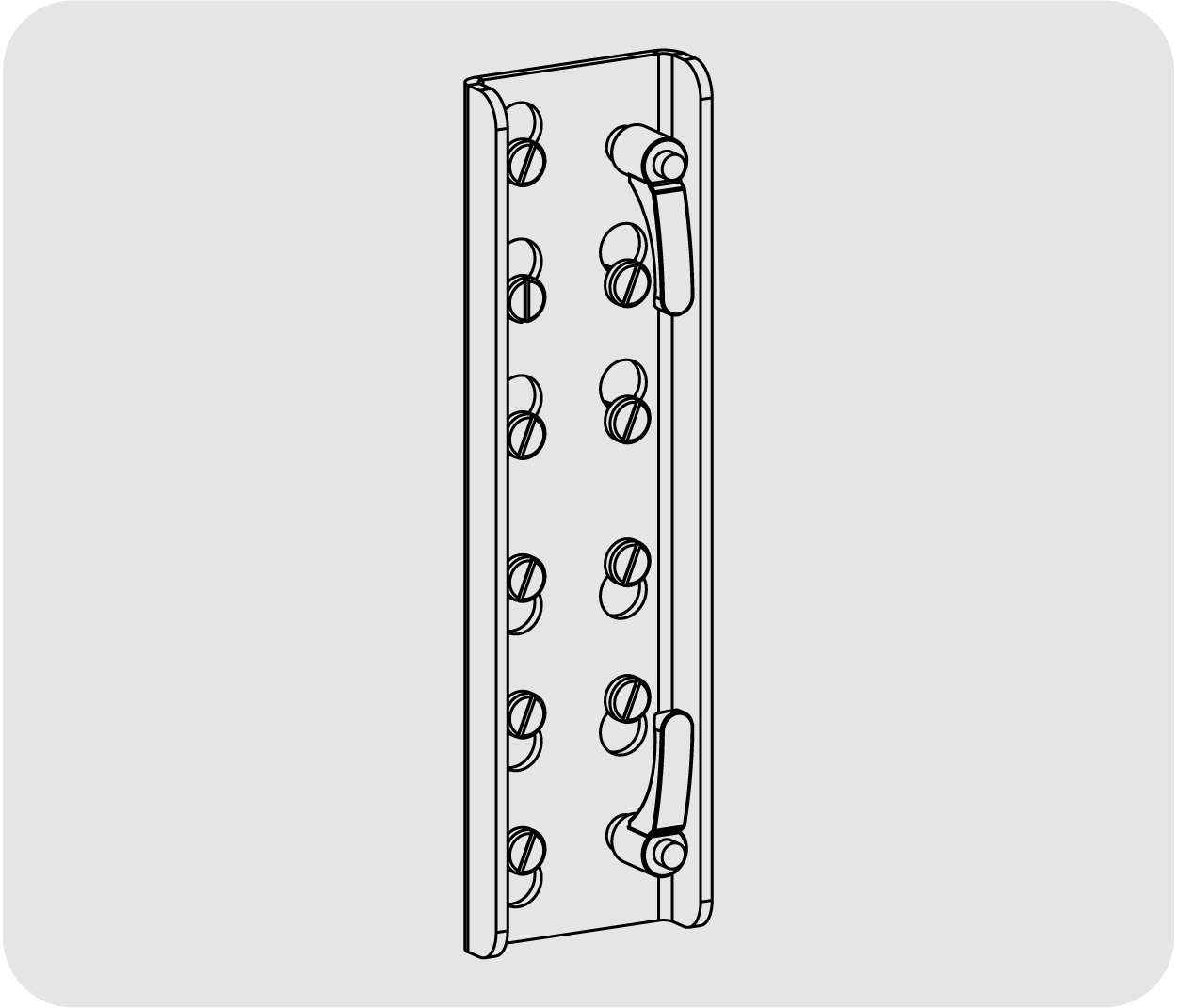

SV-22

Piece to connect 2 columns together – straight

SV-POLE

35mm inclinable Pole adaptor

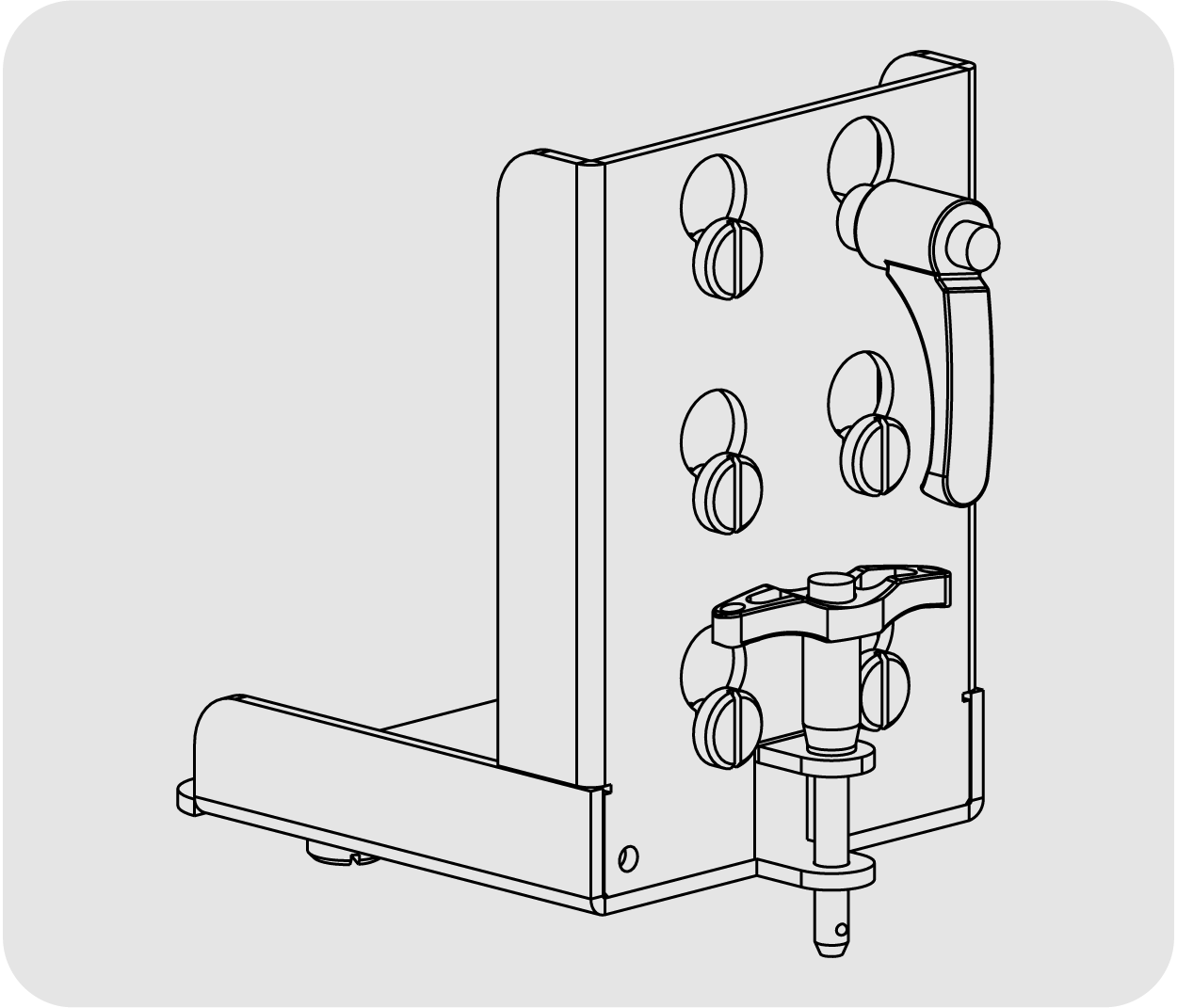

SV-I2S

Sub adaptor for satellite, combine columns with sub

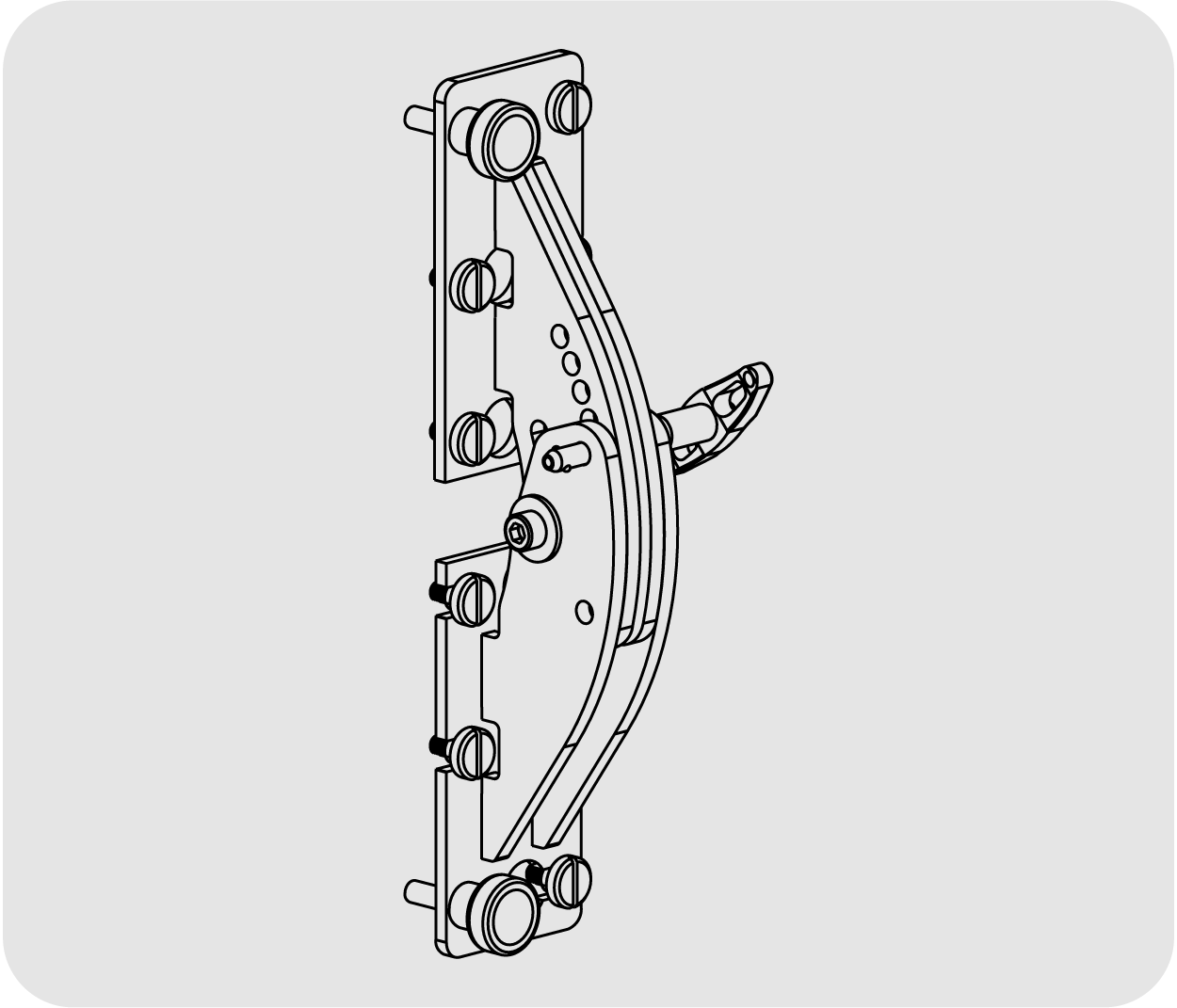

SV-2I

Column cabinets connection – inclinable

WB-I20/2

Wall bracket for column installation – inclinable

FC-IONIC

Flight case for 2 ionic-100/OD plus accessories

Ral colours sound systems customization

Available in RAL colours by request.

In addition, more customization options for the Ionic 100 and Ionic 50 cabinets are available. These are some patterns and designs in water-vinyl:

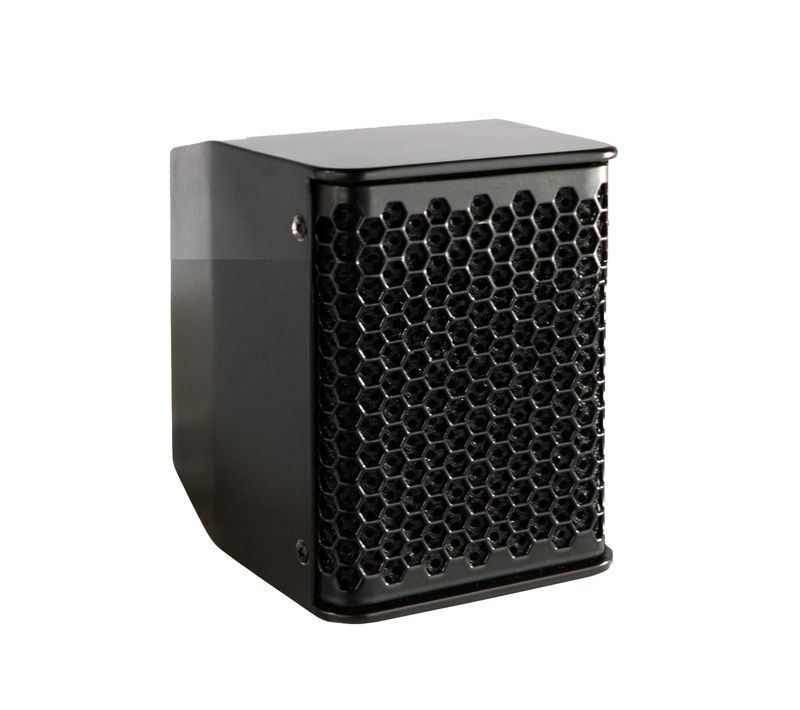

Ionic50LT

The Ionic-LT is the ideal accessory to transform Ionics series to 100 V line. Using the same enclosure shape, finished in stainless steel, it’s a discreet and easy-to-use accessory.

Usable with Ionic-50/OD and Ionic-100/OD.
