IXP-4

Professional in-ceiling loudspeaker system

Professional coaxial two-way, full range, 4-inch ceiling mount loudspeaker system.

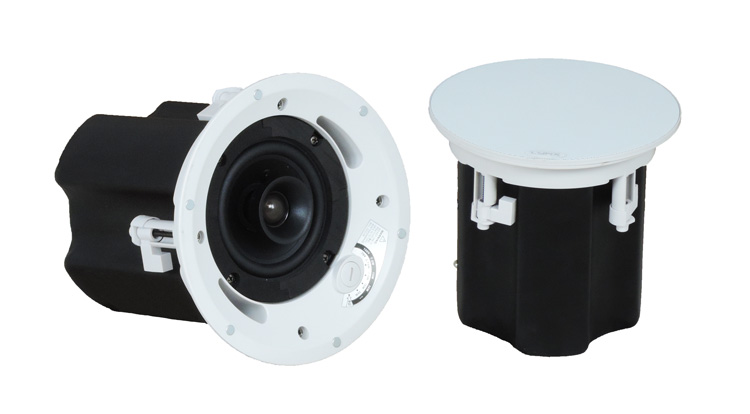

The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.

The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.

A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.

The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels.

Perfectly suited for:

  • Corporate training rooms, ballrooms
  • Convention centers, exhibition centres
  • Houses of worship
  • Malls, airports, nightclubs, bars, restaurants
  • Auditoriums, museums
  • Two-way passive coaxial system designed for professional in-ceiling installations.

  • Equipped with a 4″ polypropylene cone transducer and a coaxially mounted 0.75″ tweeter with a conical horn.

  • Rated power of 30W AES (120W peak) at 8 ohms.

  • 102 dB Max SPL with a frequency response from 85 Hz to 20,000 Hz (-3 dB).

  • Integrated 30W line transformer for 100V/70V distributed systems with an accessible front wattage selector and an 8 Ω low-impedance bypass mode.

  • White ABS baffle, black-finish steel backcan with dual front bass ports, frameless magnetic grille, and fast installation via 4 rotating mounting tabs.

Components

4” 100mm polypropylene cone

Frequency Range

73 – 20.000 Hz (-10 dB)

Frequency Response

85 – 20.000 Hz (-3 dB)

Rated Power

30W (8 Ω) 120W Peak

Transformer Taps

100V 30 / 15 / 7.5 / 3.75W
70V 30 / 15 / 7.5 / 3.75 / 1.9W
Low Impedance 8Ω

Max SPL

8Ω 102dB
100V / 70V 102dB

Sensitivity

87 dB 1W / 1m @ Zn average 400 Hz to 8KHz

Nominal Impedance

8 Ω

Nominal Coverage

100º Conical Dispersion

Recommended Signal processing

100 Hz, at 24 dB per octave high pass filter

Crossover Frequency

5500 Hz 12dB/octave HP/LP filter

Input connection

4 poles Euroblock connector with loop-through

Enclosure material

Baffle ABS, backcan steel black finish

Grille

Powder coated steel, white finish, paintable

Controls

Front-face wattage / low impedance selector switch

Mounting / Rigging provisions

4 Rotating Mounting tabs (dog ears)

Dimensions H x Diameter

188 mm x 204.5 mm (7.4 in x 8 in)

Cut out size

168 mm (6.6 in)

Net weight

2.6 Kg (5.7 lbs)

More features

Hardware for IXP-4

The IXP-4 is a two-way, full-range coaxial ceiling loudspeaker equipped with a 4″ low-frequency transducer and a coaxially mounted, waveguide-loaded 0.75″ dome tweeter. The baffle and bezel are constructed from white ABS, and the steel backcan has a black finish.

It provides a frequency range of 73 Hz to 20 kHz (-10 dB) and a frequency response of 85 Hz to 20 kHz (-3 dB). Sensitivity is 87 dB SPL at 1 W/1 m, with 100° conical coverage and a nominal impedance of 8 Ω. Power handling in low-impedance mode is 30 W AES and 120 W peak.

The integrated 30 W line transformer provides 30, 15 and 7.5 W taps for 100 V systems, and 30, 15, 7.5 and 3.75 W taps for 70 V systems. The front-mounted selector, accessible by removing the grille, allows selection of the transformer taps or the 8 Ω low-impedance bypass mode.

Connections are made through a four-pole Euroblock connector, with two input terminals and two loop-through terminals, housed beneath a protective metal cover. The loudspeaker features four rotating mounting tabs and a rear attachment point for a safety cable.

Overall dimensions are 188 mm in height and 204.5 mm in diameter, with a net weight of 2.6 kg.
