MP Series

Amplifiers

The MP Series consists of Class D power amplifiers featuring switching-mode power supplies and Power Factor Correction (PFC) technology. These units are designed to provide stable performance in professional installations and sound reinforcement applications, offering an efficient amplification solution that minimizes mains consumption and ensures signal integrity in high-demand systems.

The engineering of these amplifiers prioritizes linear power delivery and technical reliability under intensive use. Thanks to their Class D architecture, MP Series amplifiers achieve high thermal efficiency and precise dynamic response, maintaining extremely low harmonic distortion levels. The implementation of the PFC system allows the equipment to operate consistently during voltage fluctuations between 100V and 260V AC, optimizing electrical current utilization and reducing the heat dissipation of internal components.

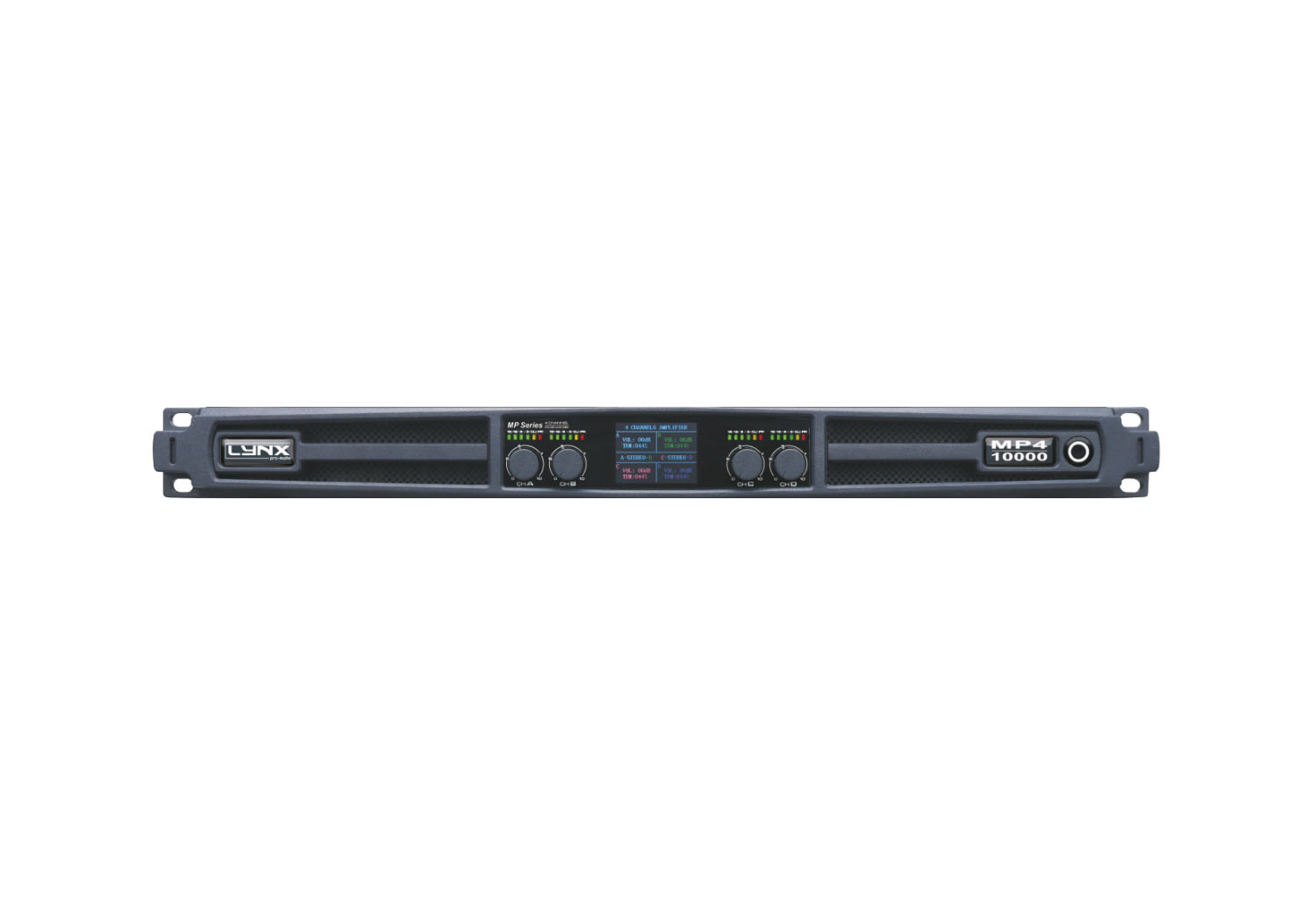

The mechanical and electronic design is focused on durability, incorporating protection protocols against short circuits, overloads, and temperature spikes. The front panel features a high-resolution LCD screen for real-time technical monitoring of operational parameters, including output levels and system status. Available in 2 and 4-channel configurations, these amplifiers deliver high power density in a compact format, meeting the safety and technical rigor standards required in the professional audio sector.

Class H Amplification: Two-channel power amplifiers featuring Class H topology, designed for high efficiency and transparent sound reproduction.
Power Performance: Robust power supply with high-current toroidal transformer to ensure stability under demanding load conditions.
Protection Systems: Advanced circuitry against short circuits, overheating, DC, power-on transients, and overloading.

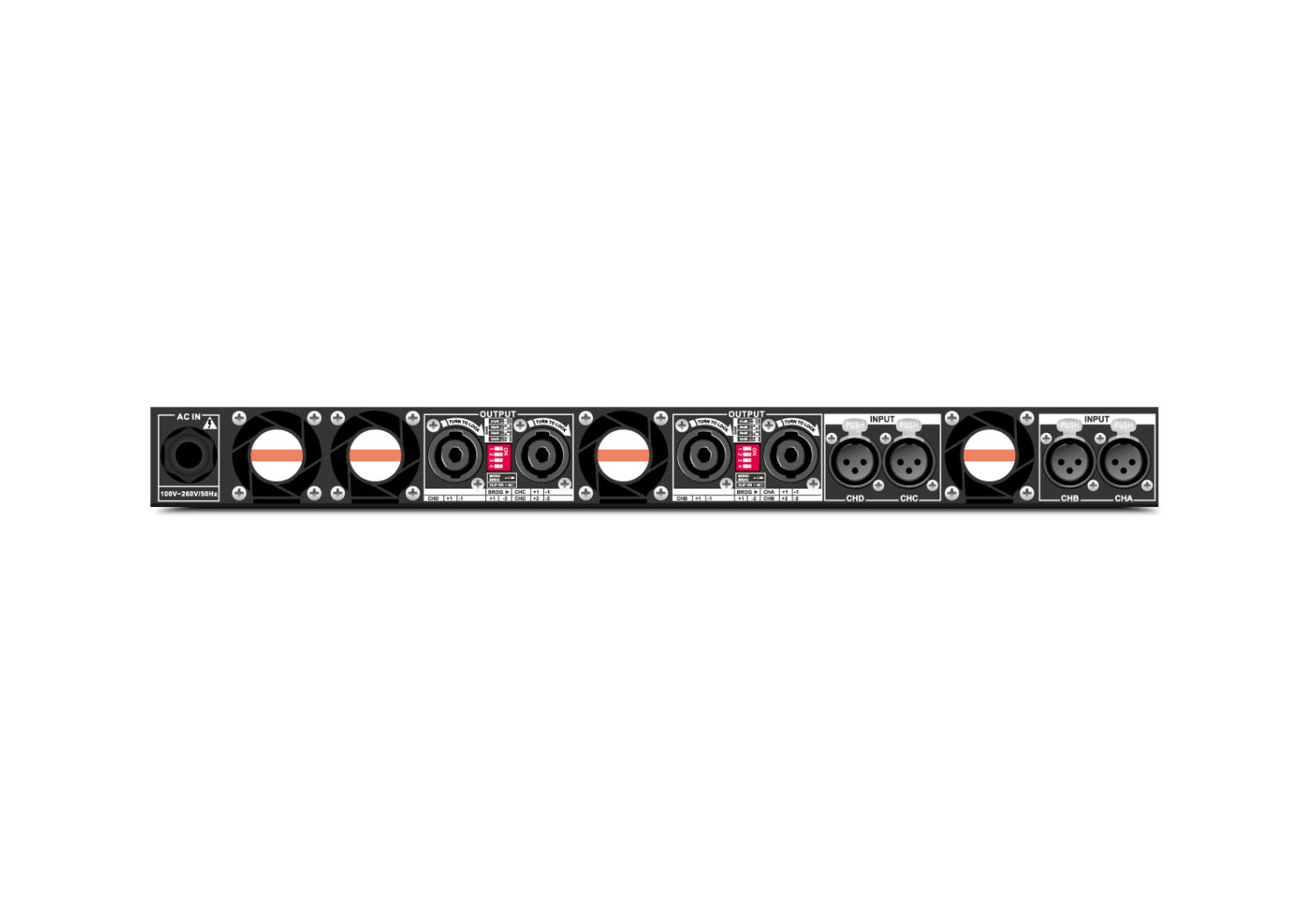

Professional Connectivity: Balanced inputs via XLR connectors and power outputs through Speakon NL4 connectors and binding posts.
Operating Modes: Selector switch for Stereo, Parallel, or Bridge mode operation, adapting to various load configurations.
Build & Cooling: 2U reinforced steel chassis with a forced-air cooling system featuring low-noise, variable-speed fans.

	MP2-9000	MP4-10000
Output power
@ 2 Ohms	2 x 4500 W	4 x 2500 W
@ 4 Ohms	2 x 4500 W	4 x 2500 W
@ 8 Ohms	2 x 3000 W	4 x 1500 W
@ 4 Ohms Bridged	1 x 9000 W	2 x 5000 W
@ 8 Ohms Bridged	1 x 6000 W	2 x 3000 W
Technical Data
Frequency Range (+/-1dB)	20 Hz – 20 KHz
THD (@8Ω 1KHz)	<0.5%
Damping factor	>5000
Signal to Noise Ratio	>110 dBA
Gain	32 dB to 41 dB
Physical
Dimensions (W x H x D)	483 x 482 x 45 mm
Weight	13.2 Kg / 29.10 lbs
Protections
Short-circuit, Auto limit, Over load, AC/DC protection
