CLS-218S

Subwoofer unit in direct radiation configuration

Compact & extremely powerful, self-powered (6000 W Class-D with PFC), DSP integrated sub-bass unit in direct radiation configuration. Dual 18” (4.5” voice coil) neodymium transducer.

Description

The CLS-218S is a high-output, extremely powerful sub-bass element designed to be used in unison with the coaxial CLS-212 line array module.

It uses two low distortion 18” (4.5” Split winding copper voice coil) custom speaker with double silicon spider with optimized compliance, ventilated voice coil for reduced power compression and aluminium demodulating ring for very low distortion.

Designed to be used either as a standard sub bass unit or easily configurable in cardioid configuration thanks to integrated front & rear power connectors enable a discreet installation without any cables visible at the front of the cluster. The extra strong, especially designed internal wooden reinforcements reduce unwanted vibrations eliminating any noise, lowering distortion and delivering a clear sound. At the same time, the bass port is designed with a flare to eliminate any turbulence caused by sharp edges in the sound waves path.

The 6000W Class-D amplifier with PFC (Power Factor Correction) offers exceptional efficiency with maximum system performance whilst significantly lowering power consumption. With Thermal, short-circuit and overload protections the system module delivers an outstanding sonic performance. Coupled together with our new generation, 64 bit/96KHz processor the system electronics are yet further guaranteed not only the utmost protection but the best performance.

Designed in-house by Lynx Pro Audio engineers our DSP offers the most recent advances in digital processing, delivering a linear phase & frequency response. The latest 32 bit/96KHZ AD/DA converters make the system one of the most advanced & innovative line arrays on the market resulting in superior sound quality.

A 2.8” IPS user interface is located on the enclosure’s back panel and has multifunction joystick control enabling the user to control, select and/or adjust parameters such as cabinet presets, gain, delay and input EQ (see user manual). Two Ethernet ports enable the system to be controlled with the OCS platform for easier alignment, monitoring and processing of the array and together with the new Rainbow 3D prediction software delivers a complete system design tool.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection. It also has a number of dedicated accessories available.

Key features

Extraordinary high power output

Integrated Digital processor (64 bit / 96 KHz)

Front & rear audio and power connectors for cardioid applications

Ergonomic design in premium birch plywood & finished in polyurea

2.8” IPS display with multifunction joystick control

Stackable and flyable standard and/or cardioid configuration

Click here for DSP module configuration

N

Perfectly suited for:

→  Touring and fixed installations
→  Sports stadiums
→  Houses of worship
→  Club installations
→  Concert halls and auditoriums
→  Low frequency complement for CLS-28 and CLS-212

Technical Data



Components
LF: Dual 18” Neodymium magnet transducer. 4.5” split winding copper voice coil. Waterproof cone treated on both sides. Aluminium demodulating ring for very low distortion. 1700 W (AES)
Frequency Range 30 Hz – 100 Hz (preset 100 Hz)
Coverage
Quasi omnidirectional
Max SPL/Peak 136 dB / 142 dB
Power amplifier
6000W Class D with switching power supply & PFC
DSP Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision
High performance 32 bit 96 KHz AD/DA converters 120dB
Configuration
Bass-reflex direct radiation enclosure
Control User control interface with 2.8″ IPS and multifunction joystick controller
Control connections
USB (DSP programming)
Dual Ethernet port, Online Control System
Input BAL/ UNBAL XLR connectors analog input + loop AES/EBU digital input + loop
Nominal Voltage
100 – 240V AC @ 50-60 Hz
Operating Voltage 85 – 264V AC
AC Connectors
16A Neutrik powerCON TRUE1 TOP with looping output
Finish Polyurea coating, high grade resistant paint
Material
15 mm / 18 mm premium birch plywood
Dimensions 600 x 1200 x 770 mm (H x W x D)
Weight
81 Kg (178.5 lbs)

 DSP configuration

DSP module configuration panel

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

Configuration panel:

HOME

On the main screen you can see the cabinet’s input and output:

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.



Watch the following TUTORIAL to understand how it works:

DSP module configuration panel

On the back panel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the Basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output.

Input: You can see a vumeter with the input level and a clip signal.

Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER:

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION:

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION:

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch the following TUTORIAL to understand how it works:

More features

Hardware for CLS-218S
Enclousure-v12
Enclosure

The CLS-218S cabinet is constructed from 11-ply and 13-ply premium birch plywood (15mm & 18mm thickness). The enclosure is finished with polyurea coating.

Enclousure-f6
Internal design

The internal structure of the CLS-218S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

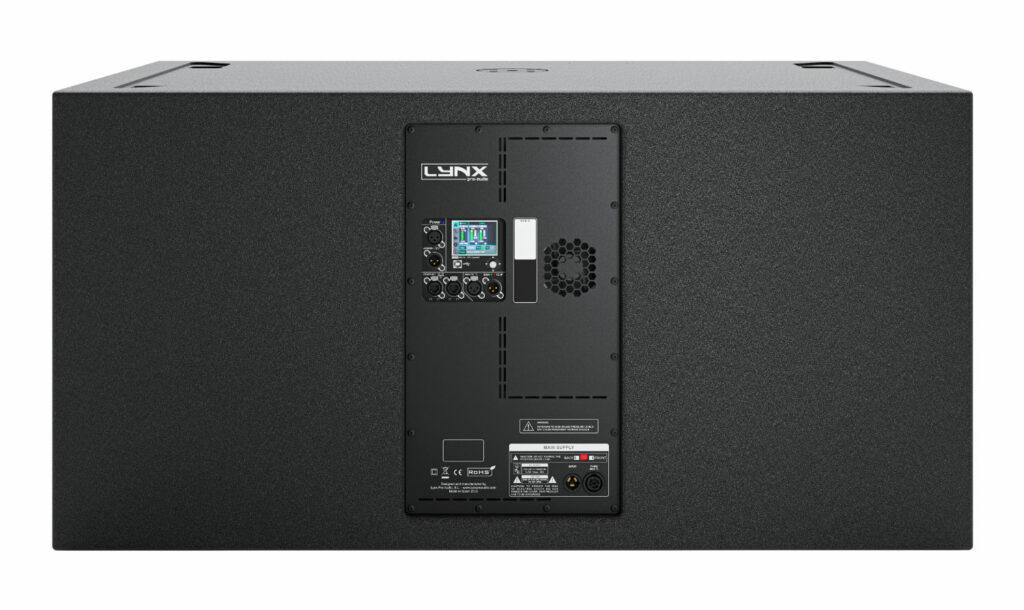

Rear panel

The powder coated steel front panel contains connections to power and signal for cardioid operation.

Grill

The CLS-218S has three heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

The CLS-218S has six ergonomic handles with firm internal grip, three on each side of the enclosure, to facilitate transport, positioning and loading of the cabinets.

Transport

The CLS-218S has two transport options: front squid cover with wheels (100mm) and a metal transport dolly for up to three CLS-218S enclosures.

Backpanel detail

Click to expand.

Accessories for CLS-218S

ST-SVCLS/M20

Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

CA-CLS218S

Removable front transport dolly for CLS-218S



CA-CLS218S/2

Dolly for 2 CLS-218S

Rain-Cover FD-CLSSUBNL
Rain cover for CLS-118S / CLS-121S / CLS-218S
FD-4LXV8

FD-CLS218S

Nylon protection cover for CLS-218S

FD-2CLS218S

Nylon protection cover for 2 CLS-218S

FD-3CLS218S

Nylon protection cover for 3 CLS-218S
