DS-12

Clubbing system

DS-12 a high Output, hornloaded, two-way cabinet. Consists of a 12″ (64mm aluminium voice coil) transducer and a 1.4″ neodymium compression driver with titanium diaphragm mounted on a special GFK/Sandwich 60º x 40º horn.

Bi-amplified delivering AES 60W (HF) and AES 500W (LF/MF), 133dB SPL.

Available in any colour and finish you like, the DS-12 is designed to not only be pleasing to the eye but also to the ear. The horn loaded, high power DS-12 is primarily designed for installations, especially clubs/discos, is bi-amplified and can also be manufactured as a self-powered version to deliver all the features such as FIR that Lynx Pro audio electronics deliver.

It uses an exponential 12” Driver (64mm aluminium voice coil) for the low/mid and the high frequencies are looked after by a 1.4” neodymium compression driver with titanium diaphragm and mylar surround. The special GFK/Sandwich horn delivers 60º x 40º coverage.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

  • Club & Bar installations
  • Multi media spaces



  • Power: Two-way bi-amplified system delivering 500 W for LF/MF and 60 W for HF, with program power ratings of 1000 W and 120 W, respectively.
  • Components: 12” transducer with a 64 mm aluminium voice coil and a 1.4” compression driver with a neodymium magnet and titanium diaphragm.
  • Acoustic Performance: Maximum SPL of 132 dB and 133 dB peak, with a frequency range of 130 Hz–20 kHz (−10 dB) and a frequency response of 150 Hz–18 kHz (±3 dB).
  • Controlled Coverage: GFK/Sandwich horn providing 60° horizontal × 40° vertical coverage.
  • Customisable Construction: Manufactured from 15 mm premium birch plywood, with RAL colour and finishing options.
  • System Optimisation: Optimised presets for LUKA processors and GTX Series amplifiers.
Components
  • LF/MF: 1 × 12” transducer (64 mm aluminium voice coil)
  • HF: 1.4” titanium diaphragm HF driver
Frequency Range

130 Hz – 20 KHz (-10dB)

Frequency Response

150 Hz – 18 KHz (± 3dB)

Max SPL

132 dB / 133 dB peak

Coverage Angle

60º H x 40 º V

Power
  • Low/Mid: 500W
  • High: 60W
Program power
  • Low/Mid: 1000W
  • High: 120W
Crossover

1450 Hz

Nominal Impedance
  • Low/Mid: 8 Ohm
  • High: 8 Ohm
Shape

Trapezoidal

Connectors

2 x Neutrik Speakon NL4MP

Construction

15mm Premium birch plywood

Finish

Standard finish: Black. Custom RAL colours available.

Dimensions

649 x 499 x 482 mm (H x W x D)

Weight

32 Kg (70 lbs)

More features

Hardware for DS-12

Components

It uses an exponential 12” Driver (64mm aluminium voice coil) for the low/mid and the high frequencies are looked after by a 1.4” neodymium compression driver with titanium diaphragm and mylar surround. The special GFK/Sandwich horn delivers 60º x 40º coverage.

AGR-10

M10 Eye bolt for DS-12 cabinets

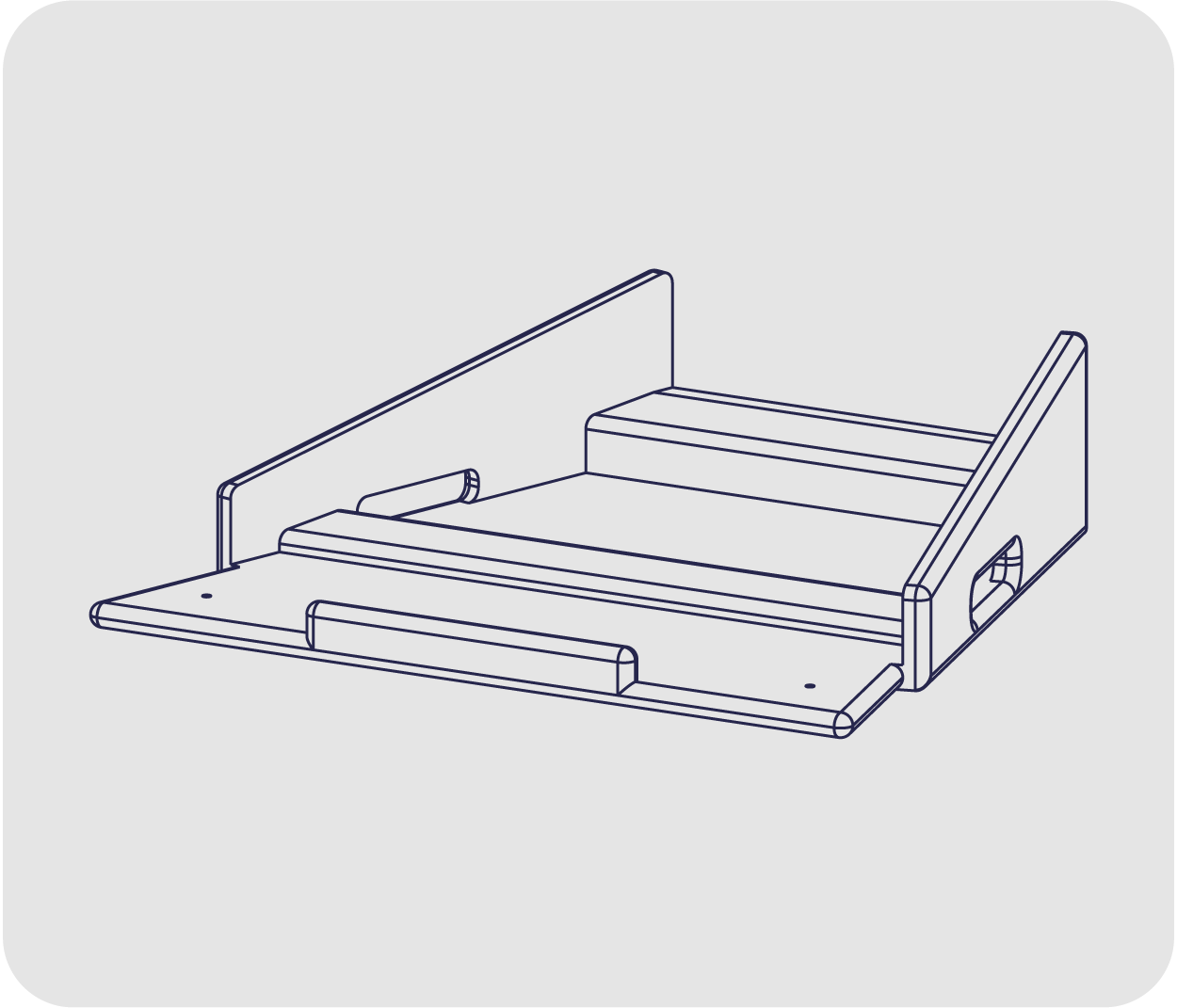

ST-DS12

Support stack for DS-12 cabinets
