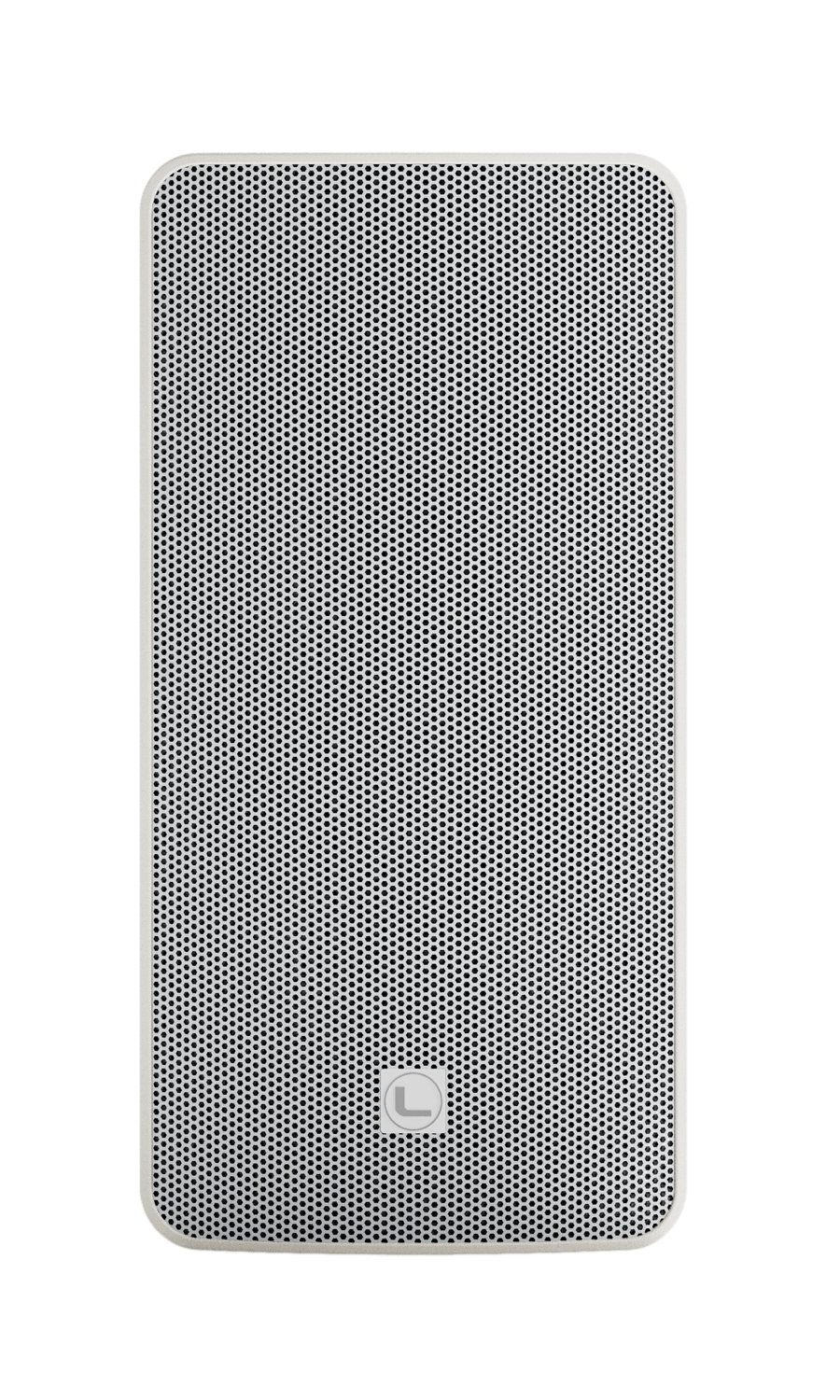

JN-6T

Weather resistant full range loudspeaker

Weather resistant two-way full range loudspeaker. Consists of one 6″ low/mid-woofer with one 1″ HF driver, with a multitap transformer. 116dB SPL.

The JN-6T cabinet comprises one 6″ low/mid-woofer with one 1″ HF driver and is equipped with a multitap transformer.

High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships and terraces.

The JN-6T can be set up either vertically or horizontally. The body is made of engineered plastic injection moulding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.



Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

The system conforms to IP46 international standard.

Perfectly suited for:

  • Meeting rooms
  • Commercial centers
  • Water parks & pools
  • Outdoor background music
  • Beach clubs
  • Cruise ships
  • Indoor or outdoor application
  • Weather resistant – IP46 rating
  • Tested to withstand snow, rain and salt
  • Engineering plastic injection molding
  • UV rays protection
  • Vertical and horizontal installation
  • Internal waterproof fabric
  • Available in black or white colour
Frequency response (-3 dB)

60 Hz – 18 KHz

Frequency response (-10dB)

55 Hz – 20 KHz

Drivers

×6″ (150 mm) / 1.5″ voice coil LF
1×1″ (25 mm) / 1″ voice coil HF

RMS power

80 W

Input voltage

100 V

Transformer taps

20W / 40W / 80W

Sensitivity

89 dB 1w/1m

Maximum SPL

110 dB / 116 dB peak

Impedance

16 Ω nominal

Dispersion (-6dB)

90º x 60º

Crossover frequencies

2.4 KHz passive

Input connectors

Covered Phoenix | EuroBlock terminals

Package size

362 x 182 x 232 mm

Weight

6 Kg (13.22 lbs)

More features

Hardware for JN-6T

U-bracket with stainless steel screws, silicone washers and safety cable

Plastic cover with gland connector and uroblock input connector

Lynx Pro Audio_WB-10

WB-JN

Wall bracket for vertical install of JUNO 6

Lynx Pro Audio_WB-JN

UBR-JN6

Stainless steel U Bracker for JUNO 6
